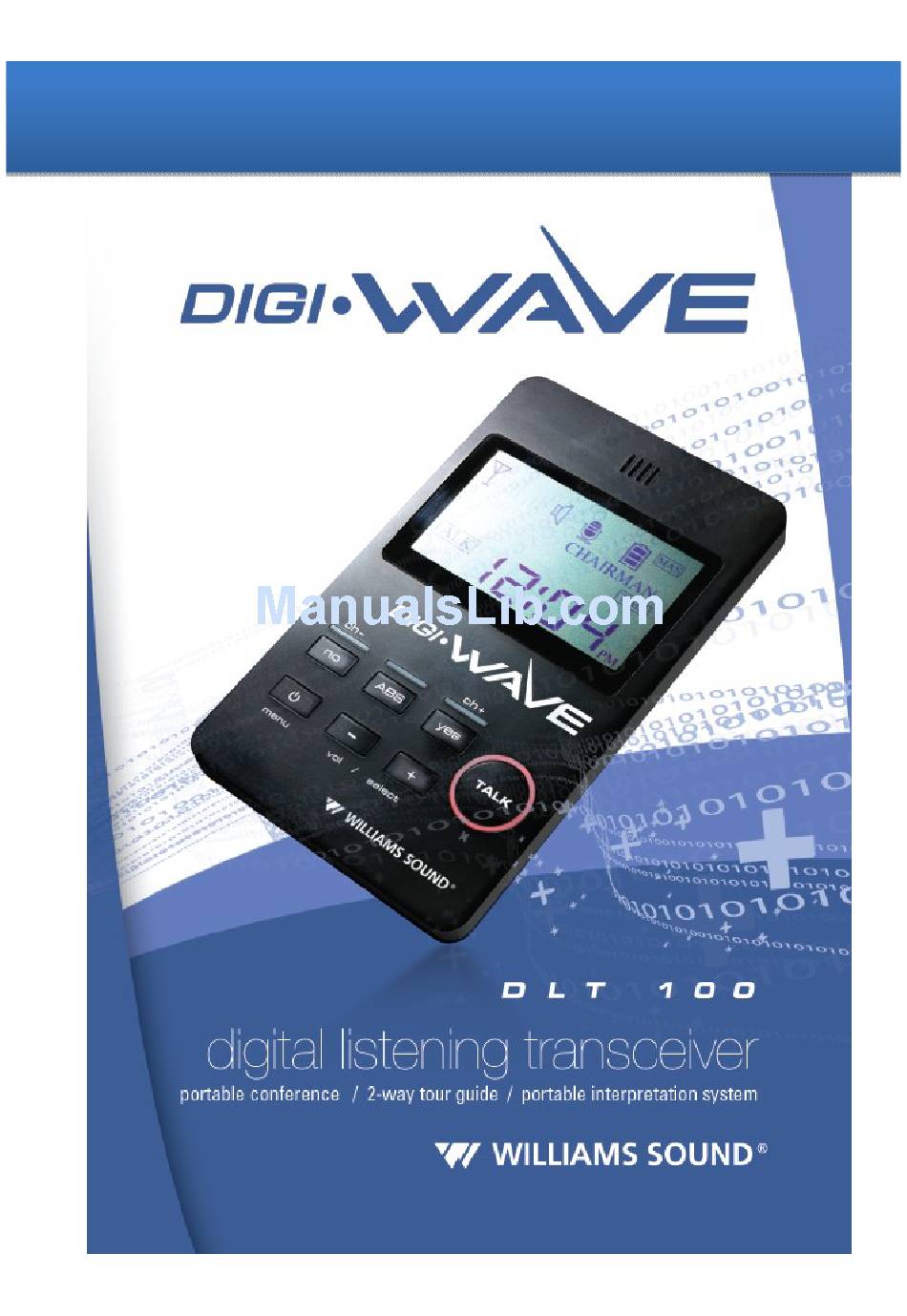

- Page 1 DLT-100 User Guide DLT-100 User Guide...
- Page 2 What’s included with DLT-100 What’s included with DLT-100 ① DLT-100 ② USB Cable ③ Adaptor ④ Plug 1 (Europe) ⑤ Plug 2 (England) ⑥ Plug 3 (Australia) ① ② ③ ④ ⑤ ⑥...
-
Page 3: Location Of Controls
Location of Controls Location of Controls ⑤ External Mic. Jack(3.5mm) ⑥ External Headphone Jack(3.5mm) Speaker LCD Display Function Button Reset Button Ipod connector (30Pin) Microphone... - Page 4 Simultaneous Interpretation Mode Simultaneous Interpretation Mode...
- Page 5 Simultaneous Interpretation Mode Simultaneous Interpretation Mode 1. Setting procedure for Interpretation Mode Press and hold power button Press No and Yes button Mode icon will blink on for 2 seconds to turn DLT- together for 2 second 100 on Press (-) button, the mode will be changed in above sequence.
- Page 6 Simultaneous Interpretation Mode Simultaneous Interpretation Mode 1. Setting procedure for Interpretation Mode Press ( +) or (– )button When mode selection is Press mode button to to select SLV or MAS made then SLV icon will select interpretation SLV- Slave blink mode MAS-Master...
- Page 7 Simultaneous Interpretation System Simultaneous Interpretation System 1.Setting procedure for Interpretation System Final setting for slave unit Note If your unit is set to MAS go to next page Skip procedure 12 and do procedure 13 Press No and Yes button Press mode button to together for 2 second to select group number...
- Page 8 Simultaneous Interpretation System Simultaneous Interpretation System 1.Setting procedure for Interpretation System Final setting for Master unit Press ( +) or (– )button Press mode button to When group number to adjust Hour select group number selection is made then number of hour will blink Press No and Yes button Press ( +) or (–...
- Page 9 Simultaneous Interpretation Mode Simultaneous Interpretation Mode Interpreter -3 units CASE1) Receiver – 20 units Select Channel and Listen English Chinese Korean Main Speaker -1 units CASE2) Interpreter – 2 units Receiver – 20 units Select Channel and Listen Main Speaker is set to “0”...
- Page 10 Two-way tour guide mode Two-way tour guide mode (conference (conference mode) mode) 2. Setting procedure for Two-way tour guide mode(conference mode) Mode change from interpretation to Two-way tour guide mode Press and hold power button Press No and Yes button Mode icon will blink on for 2 seconds to turn DLT- together for 2 second...
- Page 11 Two-way tour guide mode Two-way tour guide mode (conference (conference mode) mode) 2. Setting procedure for Two-way tour guide mode(conference mode) Press ( +) or (– )button When CHAIRMAN MAS to set address number Selection is made then Press mode button to (0~1023) address icon will blink and select CHAIRMAN...
- Page 12 Two-way tour guide mode Two-way tour guide mode (conference (conference mode) mode) 2. Setting procedure for Two-way tour guide mode(conference mode) Final setting for Master unit Press ( +) or (– )button When group number Press mode button to to adjust Hour selection is made then select group number Time icon will blink...
- Page 13 Two-way tour guide mode Two-way tour guide mode (conference (conference mode) mode) 2. Setting procedure for Two-way tour guide mode(conference mode) Note If you don’t want to set speech time, please set speech time to “0” Press No and Yes button together for 2 second to complete setting Note:...
- Page 14 Two-way tour guide mode Two-way tour guide mode (conference (conference mode) mode) Tour guide phone-2 units CASE1) Receiver – 20 units Just Listen English Chinese CASE2) Tour guide phone-3 units Receiver – 20 units Two way communication Two people can talk at the same time Just Listen...
-
Page 15: Troubleshooting
Unable to transmitting simultaneous interpretation mode Interpretation More than 2 master units exist Set one master only • A/S phone Number: 952-943-2252 • Williams Sound Corp. A/S Team • 10321 West 70 Street Eden Prairie, MN55344 U.S.A... - Page 16 FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to The following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 17 This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RC exposure compliance requirement, please avoid direct contact to the transmitting antenna during transmitting. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
