PRELIMINARY MANUAL
Digi-Wave
Digital Transceiver and Receiver

System Overview

The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.
A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and
receivers (DLR 400).

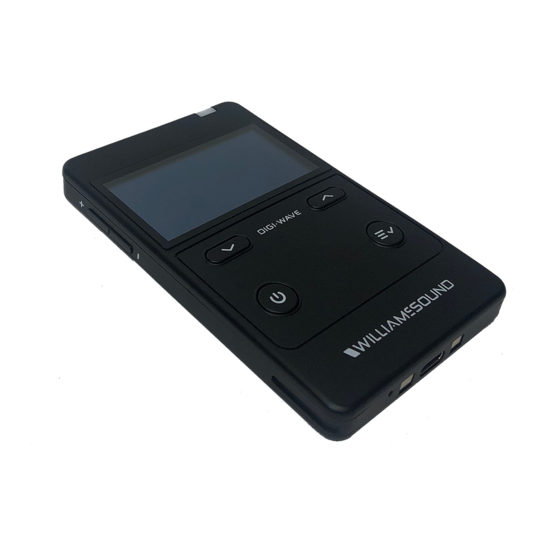

The DLT 400 is a two-way transceiver, meaning that it can transmit and receive audio simultaneously.
The DLR 400 is a receiver only. Users of DLR 400 receivers can only hear what is being broadcast by DLT(s); they
cannot create any audio. There are two models of DLR: the DLR 400 ALK and the DLT 400 RCH.

Safety Warnings and Recycling Instructions

HEARING SAFETY
CAUTION!
This product is designed to amplify sounds to a high volume level which could potentially cause hearing damage if used
improperly. To protect your hearing and the hearing of others:
1. Turn the volume down before putting on the earphone or headphone, and then adjust the volume to a comfortable
level,
2. Set the volume level at the minimum setting that you need to hear,
3. If you experience feedback (a squealing or howling sound), reduce the volume setting and move the microphone
away from the earphone or headphone, and (4) Do not allow children or other unauthorized persons to have access
to this product
MEDICAL DEVICE SAFETY
CAUTION!
1. Before using this product with an implantable or other medical device, consult your physician or the manufacturer of
your implantable or other medical device.
2. If you have a pacemaker or other medical device, make sure that you are using this product in accordance with safety
guidelines established by your physician or the implantable device manufacturer.
CAUTION!
DLT 400 and DLR 400 RCH internal battery pack.
To reduce the risk of fire or burns, do not attempt to open, disassemble, or service the battery pack. Do not crush,
puncture, short contacts or dispose of in fire or water. Do not incinerate or expose to temperatures above 140ºF (60ºC).
Replace only with battery pack designated for this product: a rechargeable Lithium-polymer battery. Recycle or dispose
of properly.
CAUTION!
The lithium batteries used in the DLT 400 and DLR 400 RCH provide great performance and long life. But, like all lithium
batteries, they do have a limited number of charge/discharge cycles. Lithium batteries may experience swelling if used
400 Series
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digi-Wave 400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Williams Sound Digi-Wave 400 Series

  • Page 1 PRELIMINARY MANUAL Digi-Wave 400 Series ™ Digital Transceiver and Receiver USER MANUAL System Overview The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios. A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400).
  • Page 2 PRELIMINARY MANUAL Digi-Wave 400 Series Digital Transceiver beyond their expected lifecycle (2 years). If you notice swelling of the battery, please discontinue use and have the battery re- placed. We recommend battery replacement after 2 years of use. For more information about replacing the battery, please visit our website at: http://www.williamsav.com/digiwave-battery-replacement.
  • Page 3 PRELIMINARY MANUAL Digi-Wave 400 Series Digital Transceiver DLR 400 ALK Differences The DLK 400 ALK uses 2 AAA alkaline batteries rather than a rechargeable battery like the DLR 400 RCH. The AAA alkaline batteries can be placed by removing the panel on the back of the device and inserting the batteries with the correct polarity.
  • Page 4 PRELIMINARY MANUAL Digi-Wave 400 Series Digital Transceiver • There must be only one Master 1 per group. • Master 2 is optional, and there can only be one per group. • Any other unit must be a Guest unit. • Each group must be assigned its own group number.
  • Page 5 PRELIMINARY MANUAL Digi-Wave 400 Series Digital Transceiver Changing Settings If settings need to be adjusted later, the menu system can be reentered at any time by holding down the menu button for a few seconds. From there, settings can be edited by selecting New Settings. You may also load a profile or join a group or channel.
  • Page 6 PRELIMINARY MANUAL Digi-Wave 400 Series Digital Transceiver Side Tone Adjustment This gives the user the ability to change the volume of their own voice as heard in the headset (side tone). This feature is only available on the DLT Transceiver. Use the up and down arrow buttons to choose between off (0 dB), low (-6 dB), or high (-12 dB).
  • Page 7 FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 8 IC Information This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
