10/100 Ethernet Port :
Color
LED Function
Green
Ethernet Linking
Yellow
Reserve
Low-power Mode:
When there is no HDMI video signal input, or TV is not connected or power off, this product will enter a
low-power mode to save power consumption; Under a low power mode still provides Ethernet,
RS-232(Max. 9600bps), IR, CEC of signal transmission.
Caution:
1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone,
microwave, radio equipment, fluorescent lamp, high voltage power lines.
2. This device HDBaseT port is not general Ethernet signal which also carry power, do not connect
with Network to avoid damage.
3. IR transmitter do not put near from receiver to avoid mutual interference.

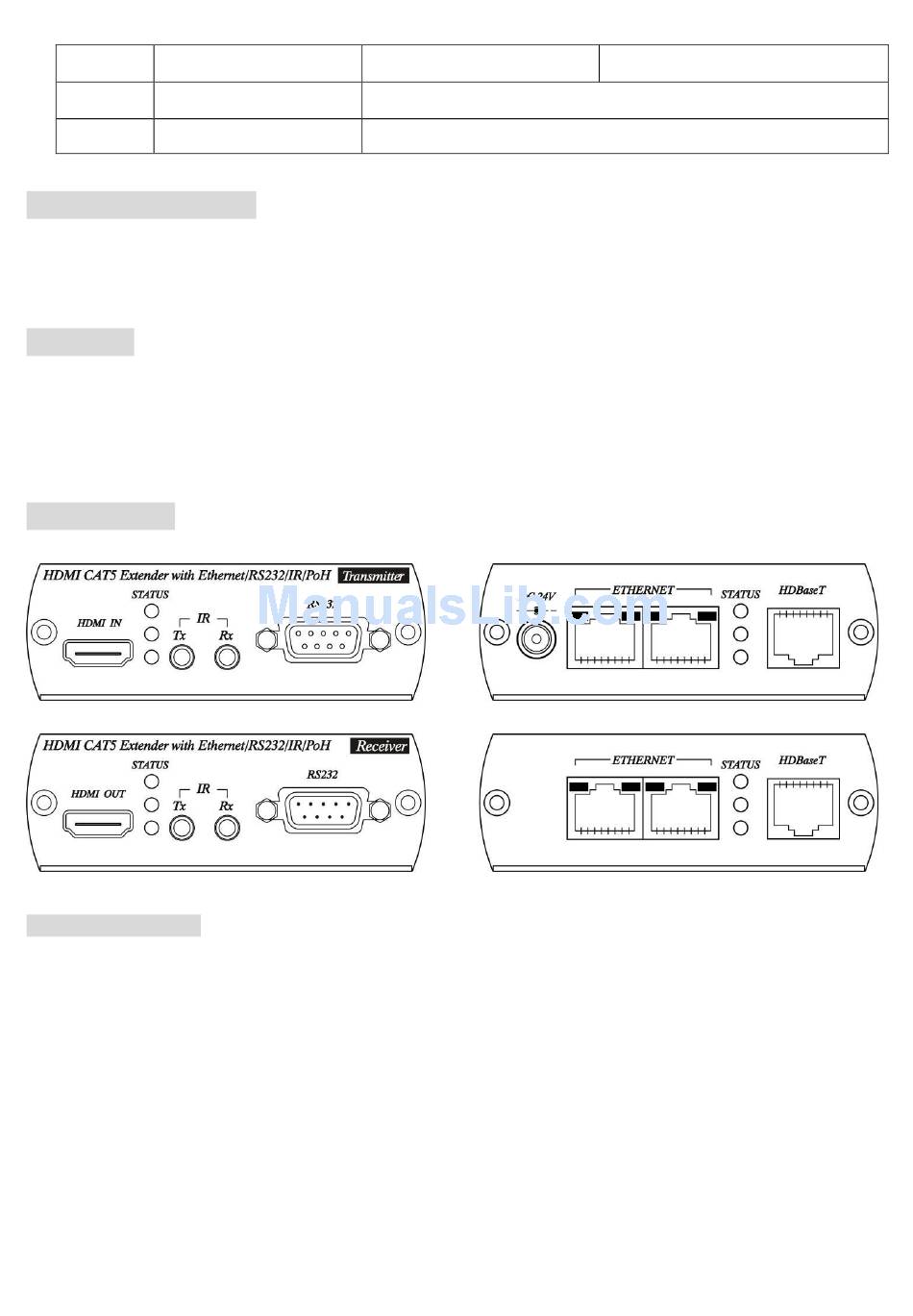

Panel view:
HE02PT
HE02PR
Package Include:
HE02PT Transmitter x 1 piece
HE02PR Receiver x 1 piece
Power adapter DC24V 1AMP x 1 piece
Mounting screw pack x 2 bags
IR Emitter cable x 2 pieces
IR Receiver cable x 2 pieces
HE02PT
On: Linking , Flash: Data Transmission
No Function
HE02PR
3
