- Page 1 03/18 Wireless keypad VERSA-LCDM-WRL Firmware version 2.03 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The name plate of the device is located on the enclosure base. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

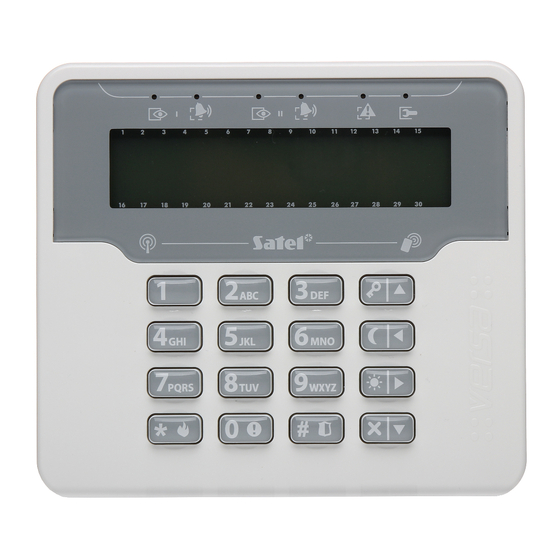

- Page 3 The VERSA-LCDM-WRL wireless keypad enables operation and programming of the control panels of VERSA (firmware version 1.04 or newer), VERSA IP and VERSA Plus series. The device is designed for work within the ABAX two-way wireless system. It is supported by the ACU-120 / ACU-270 controller connected to the VERSA / VERSA IP / VERSA Plus control panel.
-
Page 4: Installation
VERSA-LCDM-WRL SATEL 2. Description Operating modes The keypad can work in two modes: active mode – started by pressing any key. Additionally, the active mode can be started automatically when an alarm occurs or an entry delay, an exit delay or an auto-arming delay begins (see description of the parameter, section “Settings stored in ABAX system controller”... - Page 5 SATEL VERSA-LCDM-WRL Fig. 2. Opening the enclosure. 4. Place the keypad in the location intended for its installation. If you want to hold the keypad in your hand when checking the radio signal level, grab the device from its left side (on its right side, there is the antenna, which must not be covered).
-
Page 6: New Device
LCD keypad. The controller allows for registering of up to 6 VERSA-LCDM-WRL keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the DLOADX program (to establish communication between the program and the control panel, you must start the service mode “from pins”... - Page 7 SATEL VERSA-LCDM-WRL 2. Click on the wireless keypad you want to remove. Delete” 3. Click on the “ button. The “Confirm” window will open. 4. Click on the “Yes” button. The “Confirm” window will close. 5. Click on the “Write” button to save the changes to the controller and control panel.
- Page 8 VERSA-LCDM-WRL SATEL Wake-up - maximum length of time for which the active mode can be started automatically. If you enter a value different from 0: – the active mode will be started automatically when an alarm occurs or an entry delay or an exit delay begins, –...
- Page 9 SATEL VERSA-LCDM-WRL Fig. 4. DLOADX program: keypad settings stored in the control panel. Quick control – if this option is enabled, the users can control the outputs by using the number keys. 15. C When programming the control panel, the...
-
Page 10: Panic Alarm
VERSA-LCDM-WRL SATEL auto 0-100% – enabled: brightness 100%. auto 50%-100% – enabled: brightness 100%. Keys backlight – the way how the keys backlight will work in the active mode: not present – disabled. auto – enabled. permanent – enabled. Alarm messages Partitions [Part.alarm msg.] –... - Page 11 SATEL VERSA-LCDM-WRL Volume – volume level of the beeps generated during keypad operation (key pressing, confirmation of performed operation, etc.). Chime – volume level of the beeps generated after zone violation (CHIME). Entry delay – volume level of the entry delay beeps.
-
Page 12: Operation
Additionally, it enables the alarm system to be operated using a proximity card. For the way of using the keypad, please refer to the control panel user and programming manuals. The manuals are available in electronic form on the www.satel.eu website. 6. Specifications Operating frequency band .................868.0 MHz ÷...
