4 . 1 . 3 I n t e r n e t A c
4 . 1 . 3 I n t e r n e t A c

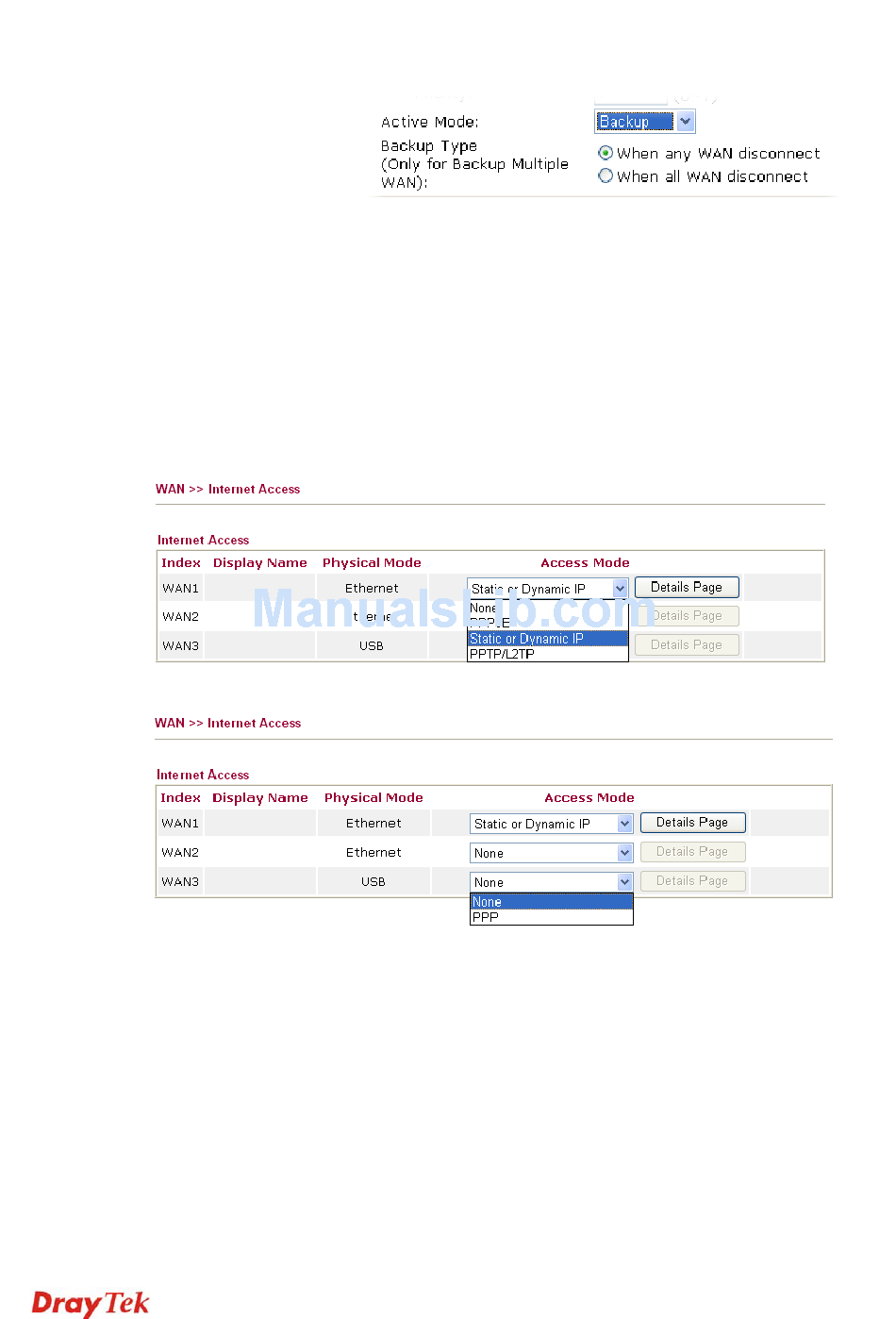

For the router supports multi-WAN function, the users can set different WAN settings (for
WAN1/WAN2/WAN3) for Internet Access. Due to different Physical Mode for WAN
interfaces, the Access Mode for these connections also varies. Refer to the following figures
Index
Display Name
Physical Mode
Access Mode
Details Page
single WAN.
When any WAN disconnect – Such backup WAN will be
activated when any master WAN interface disconnects.
When all WAN disconnect – Such backup WAN will be
activated only when all master WAN interfaces disconnect.
c e s s
c e s s
Display the WAN interface.
It shows the name of the WAN1/WAN2/WAN3 that entered in
general setup.
It shows the physical connection for WAN1(Ethernet)/WAN2
(Ethernet) /WAN3 (3G USB Modem) according to the real
network connection.
Use the drop down list to choose a proper access mode. The
details page of that mode will be popped up. If not, click
Details Page for accessing the page to configure the settings.
This button will open different web page according to the
access mode that you choose in WAN interface.
111
Vigor2920 Series User's Guide
