4. Click Connect button to build connection. When the connection is successful, you will
find a green light on the right down corner.
5 . 3 Q o S S e t t i
5 . 3 Q o S S e t t i
Assume a teleworker sometimes works at home and takes care of children. When working
time, he would use Vigor router at home to connect to the server in the headquarter office
downtown via either HTTPS or VPN to check email and access internal database. Meanwhile,
children may chat on Skype in the restroom.

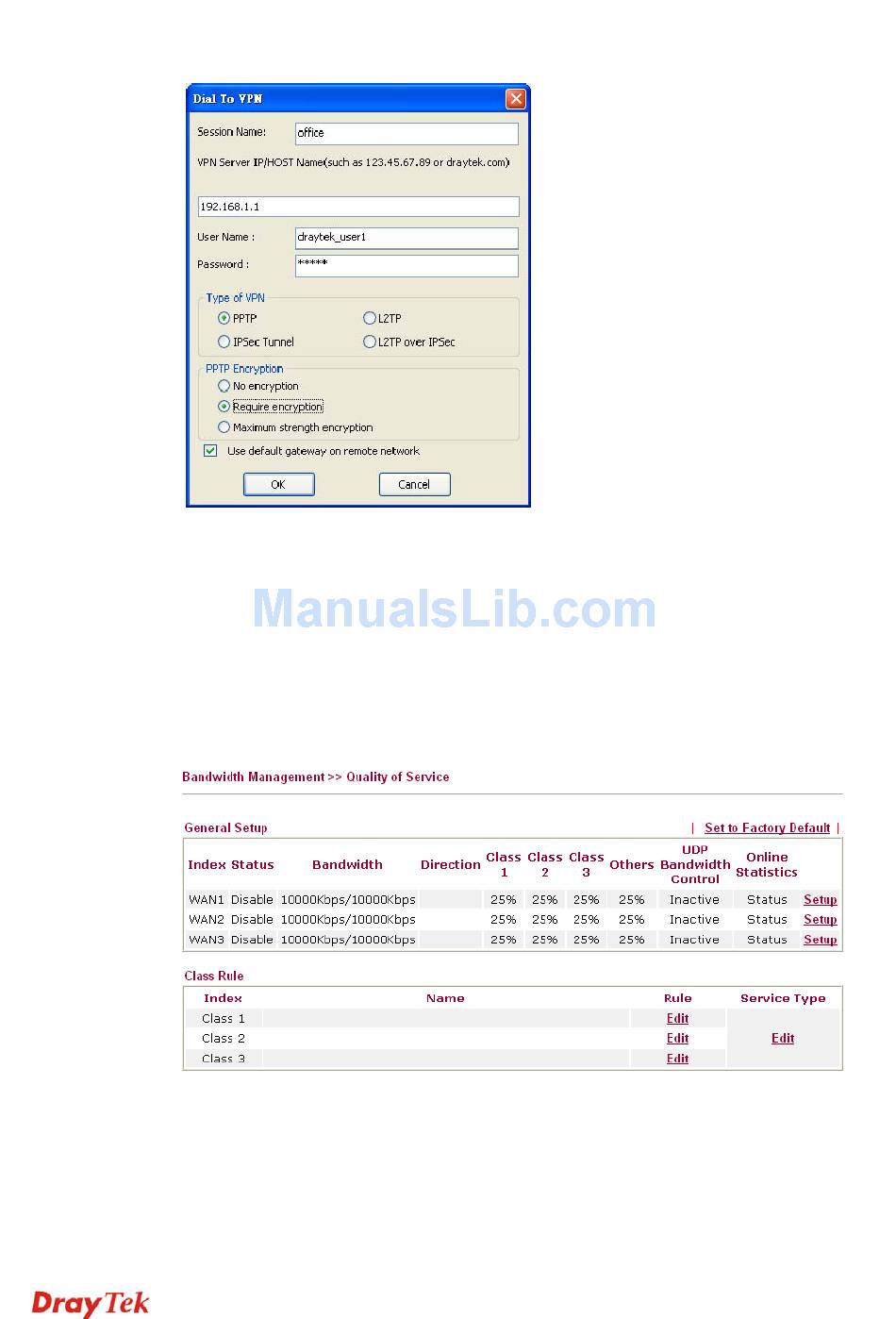

1. Go to Bandwidth Management>>Quality of Service.
2. Click Setup link of WAN. Make sure the QoS Control on the left corner is checked. And
select BOTH in Direction.
n g E x a m p l e
n g E x a m p l e
313
Vigor2920 Series User's Guide
