4 . 1 5 S y s t e m M
4 . 1 5 S y s t e m
For the system setup, there are several items that you have to know the way of configuration:
Status, Administrator Password, Configuration Backup, Syslog, Time setup, Reboot System,
Firmware Upgrade.

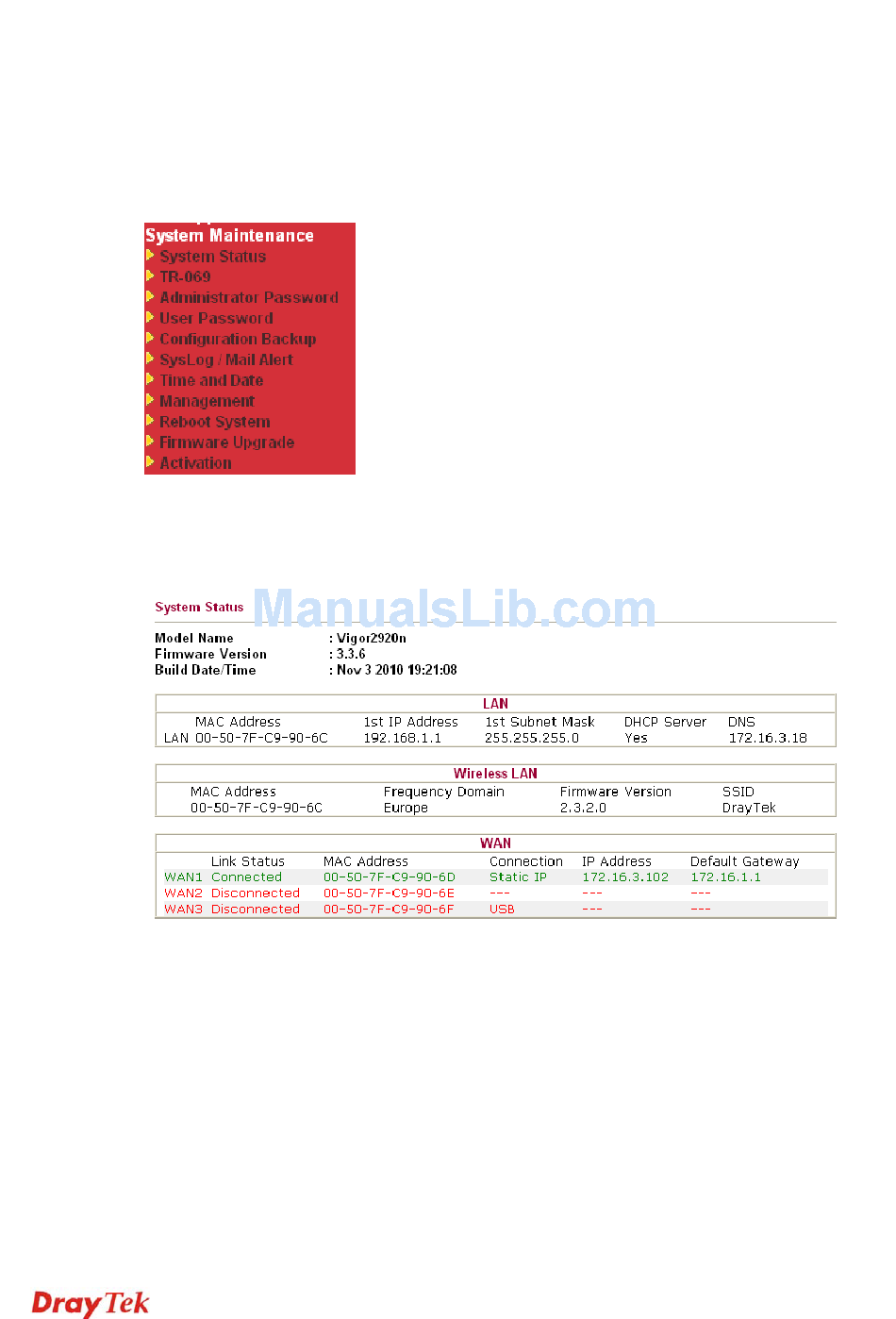

Below shows the menu items for System Maintenance.
4 . 1 5 . 1 S y s t e m
4 . 1 5 . 1 S y s t e m
The System Status provides basic network settings of Vigor router. It includes LAN and
WAN interface information. Also, you could get the current running firmware version or
firmware related information from this presentation.
Model Name
Firmware Version
Build Date/Time
LAN-------
MAC Address
st
1 IP Address
st
1 Subnet Mask
DHCP Server
a i n t e n a n c e
M a i n t e n a n c e
S t a t u s
S t a t u s
Display the model name of the router.
Display the firmware version of the router.
Display the date and time of the current firmware build.
Display the MAC address of the LAN Interface.
Display the IP address of the LAN interface.
Display the subnet mask address of the LAN interface.
Display the current status of DHCP server of the LAN
interface.
281
