Draytek Vigor2920n User Manual page 152

Index
Comment
Local IP Address
Status

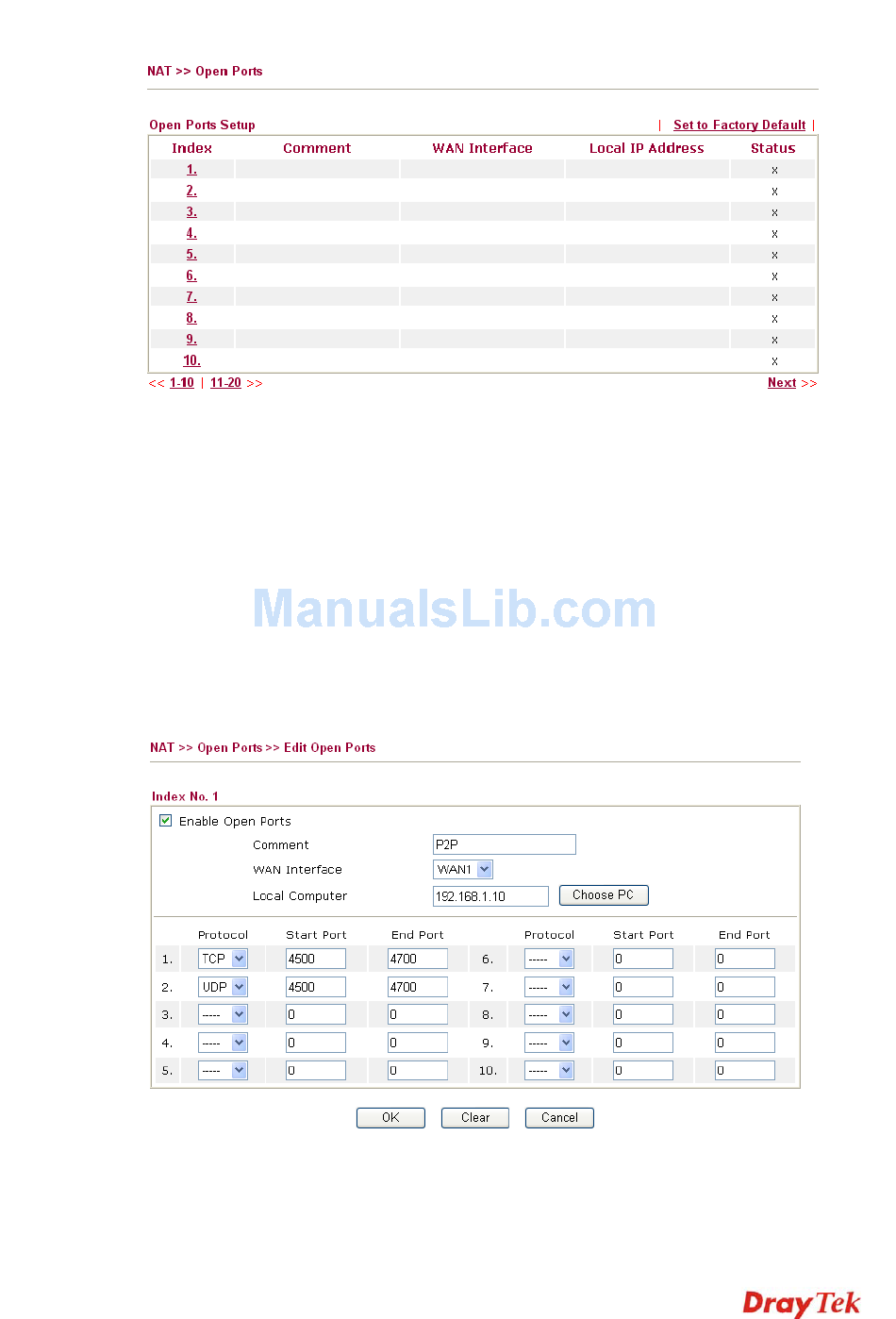

To add or edit port settings, click one index number on the page. The index entry setup page
will pop up. In each index entry, you can specify 20 port ranges for diverse services.
Enable Open Ports
Comment
WAN IP
Vigor2920 Series User's Guide
Indicate the relative number for the particular entry that you
want to offer service in a local host. You should click the
appropriate index number to edit or clear the corresponding
entry.
Specify the name for the defined network service.
Display the private IP address of the local host offering the
service.
Display the state for the corresponding entry. X or V is to
represent the Inactive or Active state.
Check to enable this entry.
Make a name for the defined network application/service.
Specify the WAN IP address that will be used for this entry. This
140
