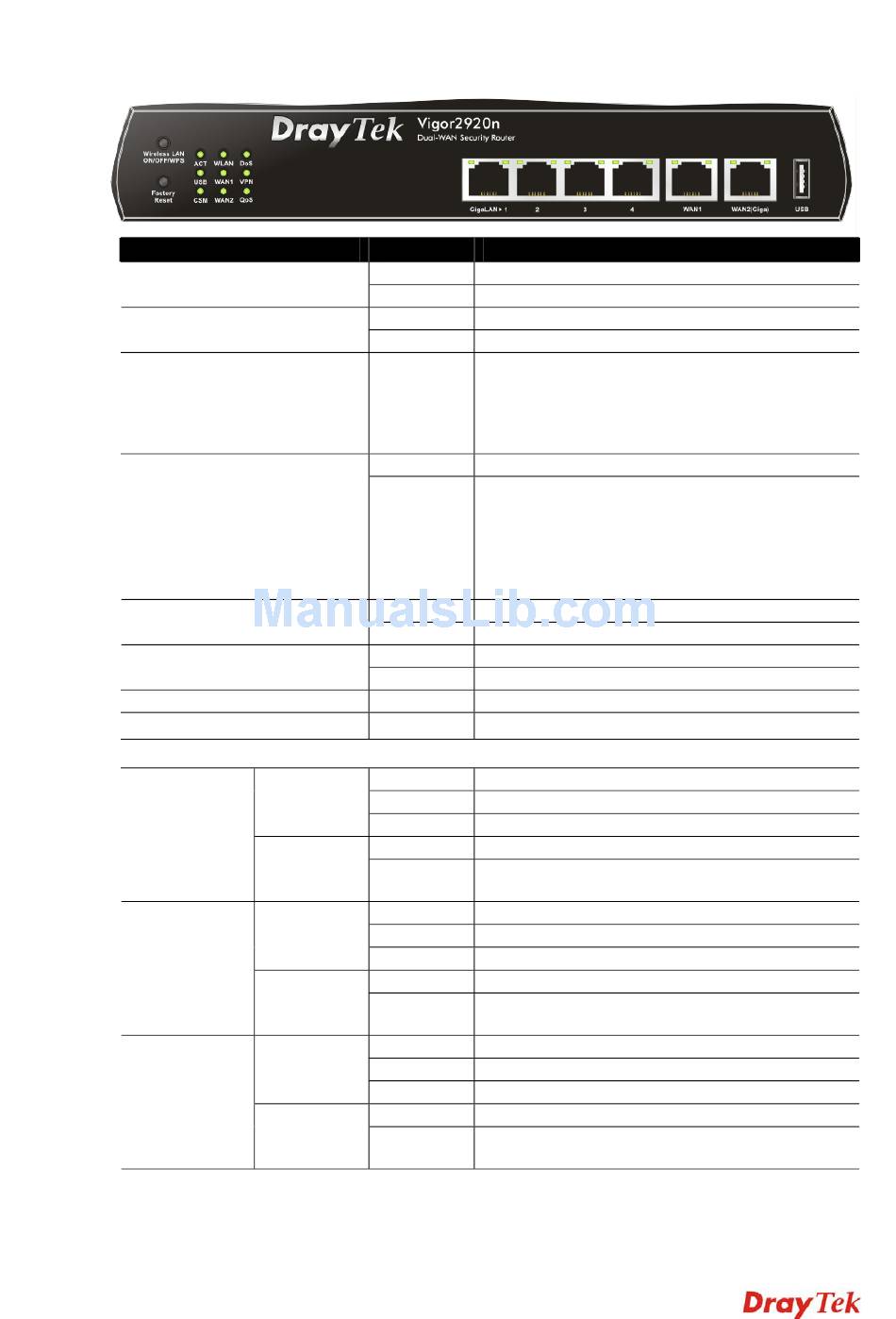

For Vigor2920N - Draytek Vigor2920n User Manual

1 . 2 . 2 F o r V i g o
1 . 2 . 2 F o r V i g o
LED
ACT (Activity)
USB
CSM
WLAN
WAN1/2
DoS
VPN
QoS
LED on Connector
WAN1
WAN2(Giga)
GigaLAN
1/2/3/4
Vigor2920 Series User's Guide
r 2 9 2 0 n
r 2 9 2 0 n
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
Status Explanation
Blinking The router is powered on and running normally.
Off The router is powered off.
On USB device is connected and ready for use.
Blinking The data is transmitting.
On The profile(s) of CSM (Content Security
Management) for IM/P2P, URL/Web Content Filter
application is enabled from Firewall >>General
Setup. (Such profile must be established under
CSM menu).
On
Wireless access point is ready.
Blinking
It will blink slowly while wireless traffic goes
through.
If ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and it will
return to normal condition after two minutes. (You
need to setup WPS within 2 minutes.)
On The WAN1 or WAN2 connection is ready.
Blinking It will blink while transmitting data.
On The DoS/DDoS function is active.
Blinking It will blink while an attack is detected.
On The VPN tunnel is active.
On The QoS function is active.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is connected with 10Mbps when left LED
is on.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps when left
LED is on.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps when left
LED is on.
4
