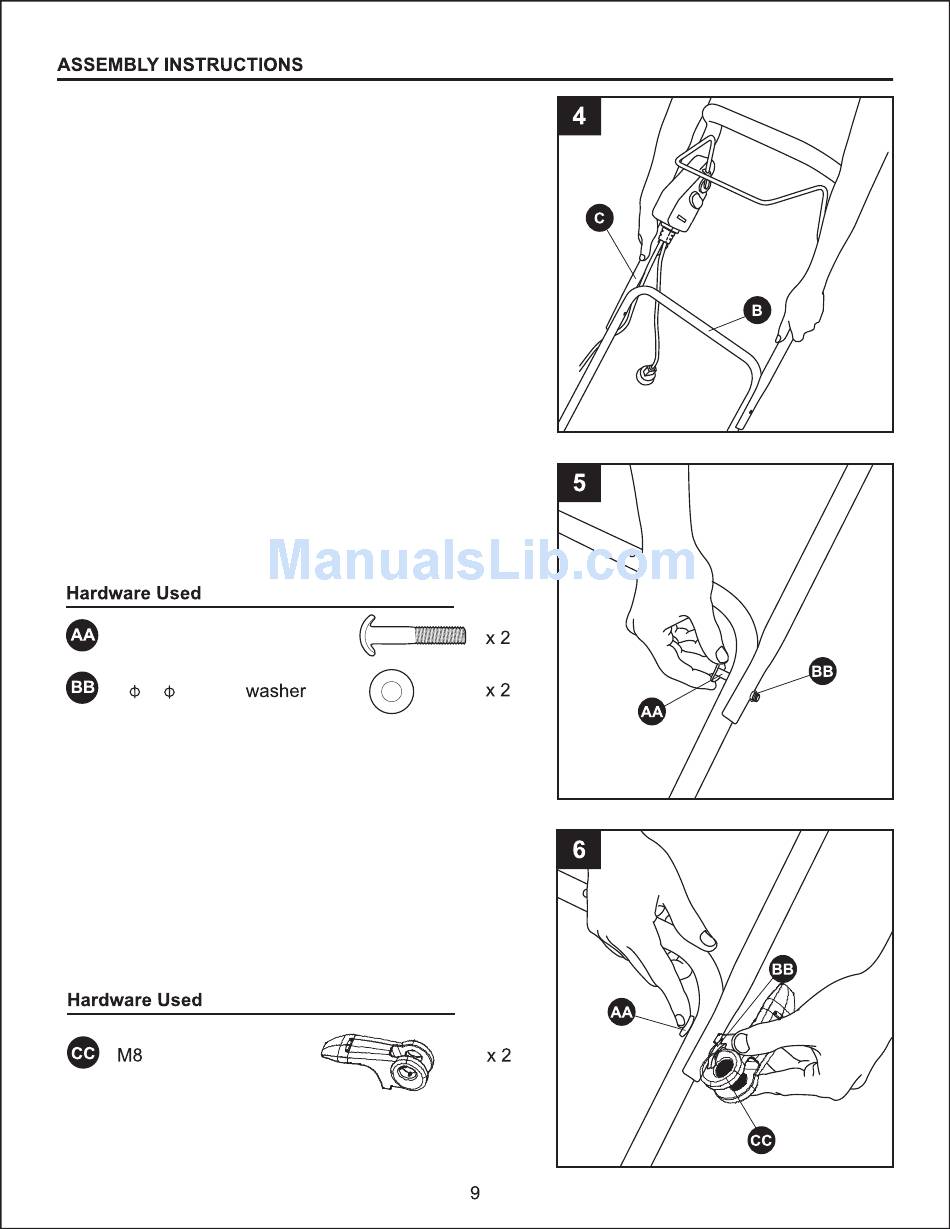

Power smart DB5023 Assembly Manual page 9

4. Position upper frame (C) as shown (handle bar up)
in image 4. Align mount holes with holes on middle
frame (B)
5. Insert the handle saddle screw (AA) with the metal
washer (BB) into the aligned holes on each side.
The metal washer (BB) should be inserted outside
of the frame.
Note: Avoid damaging screw threads during installation.
M8x50
Handle Saddle Screw
8x 28x3
6.Use the handle camlocks (CC) to secure the
connection. The handle camlocks (CC) should be
inserted outside of the frame. Tighten the camlock
just snug to the handle.
NOTICE: To avoid breaking the camlock, Do Not
overtighten the camlock. The camlock tightens as it is
pivoted when clamped. If the camlock is initially
threaded too tight and then clamped, it will break. Only
slight clamping pressure is required to hold the handle
in place.
Handle Camlock
