Questions, problems, missing parts?
Amerisun customer service department at 1-800-791-9458 or visit Amerisuninc.com and e-mail
support@amerisuninc.com. For engine related problems, questions and warranty service call the engine
manufacturer 1-877-274-2214.
WARNING! Read and follow all safety rules and instructions in this manual before attempting to operate this
machine. Failure to comply with these instructions may result in personal injury. Save these instructions. This
unit is equipped with an internal combustion engine and may spark resulting in fire or explosion if used near
combustible material or fluid. Only use when the engine's exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any). The spark arrester shall be maintained in effective working
order by operator.

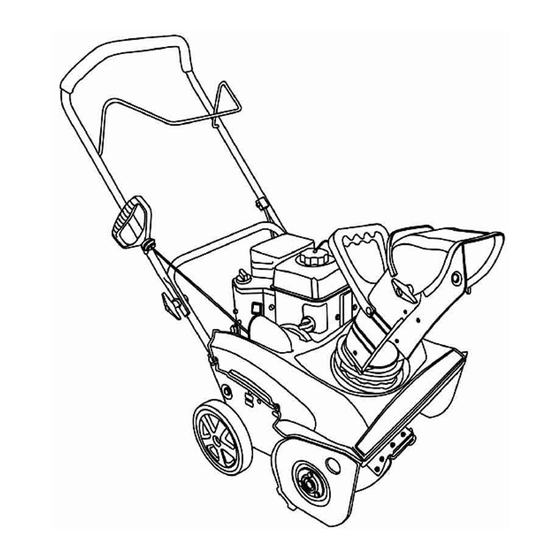

SINGLE STAGE GAS SNOW THROWER
If you have questions or need technical support, call the
MODEL DB7653

Advertisement

Table of Contents
loading

Related Manuals for Power smart DB7653

Summary of Contents for Power smart DB7653

  • Page 1 SINGLE STAGE GAS SNOW THROWER MODEL DB7653 Questions, problems, missing parts? If you have questions or need technical support, call the Amerisun customer service department at 1-800-791-9458 or visit Amerisuninc.com and e-mail support@amerisuninc.com. For engine related problems, questions and warranty service call the engine manufacturer 1-877-274-2214.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety............................... 2 Feature Identification ..........................6 Box Contents ............................7 Assembly ..............................7 Operation ..............................9 Operating Your Snow Thrower ....................... 10 Maintenance ............................11 Troubleshooting ............................13 Warranty ..............................15 DISCLAIMER The information contained within this manual is the latest information as of the publication date. All content and images are subject to change without notice.

  • Page 3: Safety

    SAFETY Preparation Thoroughly inspect the area where the This symbol points out important safety equipment is to be used. Remove all doormats, instructions which, if not followed, could newspapers, sleds, boards, wires and other endanger the personal safety and or foreign object, which could be tripped over or property of yourself and others.
  • Page 4 • Exercise caution to avoid slipping or falling, • Never fill containers inside a vehicle or on a truck or especially when operating in reverse. trailer bed with a plastic liner. Always place • Stay alert, watch what you are doing and use containers on the ground away from your vehicle common sense when operating your Snow Thrower.
  • Page 5 • If the machine should start to vibrate abnormally, • Maintain or replace safety and instruction labels, as stop the engine, disconnect the spark plug wire and necessary. ground it against the engine.Inspect thoroughly for • Observe proper disposal laws and regulations for damage.

  • Page 6: Safety Symbols

    Safety Symbols This page depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

  • Page 7: Feature Identification

    FEATURE IDENTIFICATION TECHNICAL SPECIFICATIONS Clearing Width: 21 inches Clearing Height: 10 inches Engine Displacement: 208cc, 4 stroke A - Auger Control Handle B - Chute Rotation Handle C - Chute Assembly D - Augers E - Shave Plate...

  • Page 8: Box Contents

    ASSEMBLY A. Auger Control Handle The Auger Control is used to engage and Your Snow Thrower will require some assembly. disengage the augers. Squeeze the Auger Please complete the following steps before using Control to engage the augers; release to your Snow Thrower.

  • Page 9: Chute Assembly

    Chute Assembly 1. Unfasten and remove the locking collar from the base of the discharge chute. Note: Check to make sure the chute detent spring clip is in position on the chute base. Auger Control Cable Attachment 2. Align and install the discharge chute onto the 1.

  • Page 10: Operation

    OPERATION PLEASE REFER TO ENGINE MANUAL (SEPARATE DOCUMENT) FOR ENGINE OPERATION INSTRUCTIONS. The following section describes steps to prepare your Snow Thrower for use. If after reading this section, if you are unsure about how to perform any of the steps please call 1-800-791-9458 for customer service.

  • Page 11: Operating Your Snow Thrower

    The discharge chute can be adjusted 180º by parts. If the parts freeze while your Snow Thrower is in use, stop your Snow Thrower and inspect it for rotating the chute rotation handle. Rotate the frozen parts. Thaw all parts before restarting and chute rotation handle clockwise to move the operating your Snow Thrower.

  • Page 12: Maintenance

    Clearing Restrictions Adjust the chute outlet to the desired direction. Turn the chute rotation handle clockwise or If the snow discharge chute or auger housing counter-clockwise until the desired position is becomes clogged STOP the engine, and make reached. sure that all rotating parts have come to a WARNING! Never direct the chute outlet complete stop.

  • Page 13: Maintenance Schedule

    into the cylinder. Pull the Recoil Starter Maintenance Schedule several times to distribute the oil, and reinstall the spark plug. ITEM FUNCTION FREQUENCY 4. Clean debris from around the engine and Auger Clear Jams As necessary behind the muffler. Apply a light film of oil on Engine Oil any areas that are susceptible to rust.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Troubleshooting Problem Possible Causes Remedy WARNING - Before attempting to make any inspections, repairs or adjustments, stop the engine, wait for all moving parts to stop moving and carefully disconnect the engine spark plug wire. If tipping or turning the snow blower is required for any inspection or repair, first wait until the engine is cool to the touch and then drain the engine of all fuel and oil into suitable containers and store or dispose of in a proper manner.
  • Page 15 Auger System 1 Chute assembly clogged 1 Clean chute and inside of auger housing with clean-out tool 2 Foreign object in auger causing auger to 2 Remove object from auger stop 3 Auger belt loose, slipping, worn or damaged 3 Replace auger belt or adjust auger control cable tension 4 Auger belt tension cable loose, damaged or 4 Repair, adjust or replace as necessary binding...

  • Page 16: Warranty

    WARRANTY ONE YEAR WARRANTY ENGINE WARRANTY See the ENGINE manual included with this snow thrower for engine warranty information. For all engine related warranty issues contact LCT engine corporation - phone 1-877-274-2214. WARRANTY For one year from date of retail purchase within U.S.A., the manufacturer will, at its option, repair or replace, for the original purchaser, free of charge, any part or parts found to be defective in material or workmanship.
