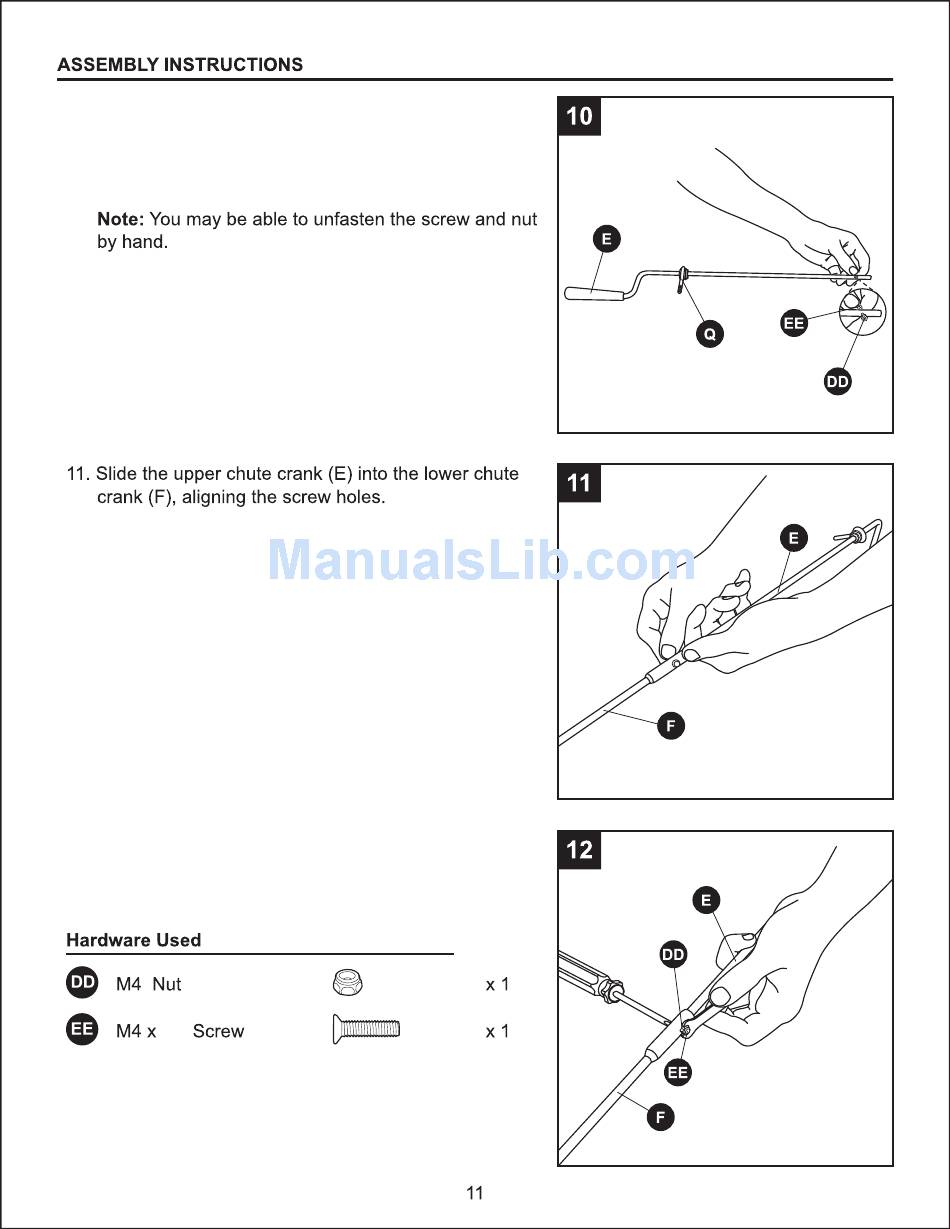

Power smart DB5023 Assembly Manual page 11

13 amp electric snow thrower
Hide thumbs Also See for DB5023:
Table of Contents

Advertisement

10.Locate the upper chute crank (E) in the parts bag
Remove the screw (EE) and nut (DD) from the
upper chute crank (E) using a Phillips screwdriver
and wrench.
12. Tighten the screw (EE) into the aligned holes
using the Phillips screwdriver. Fasten the nut
(DD) with wrench
18
