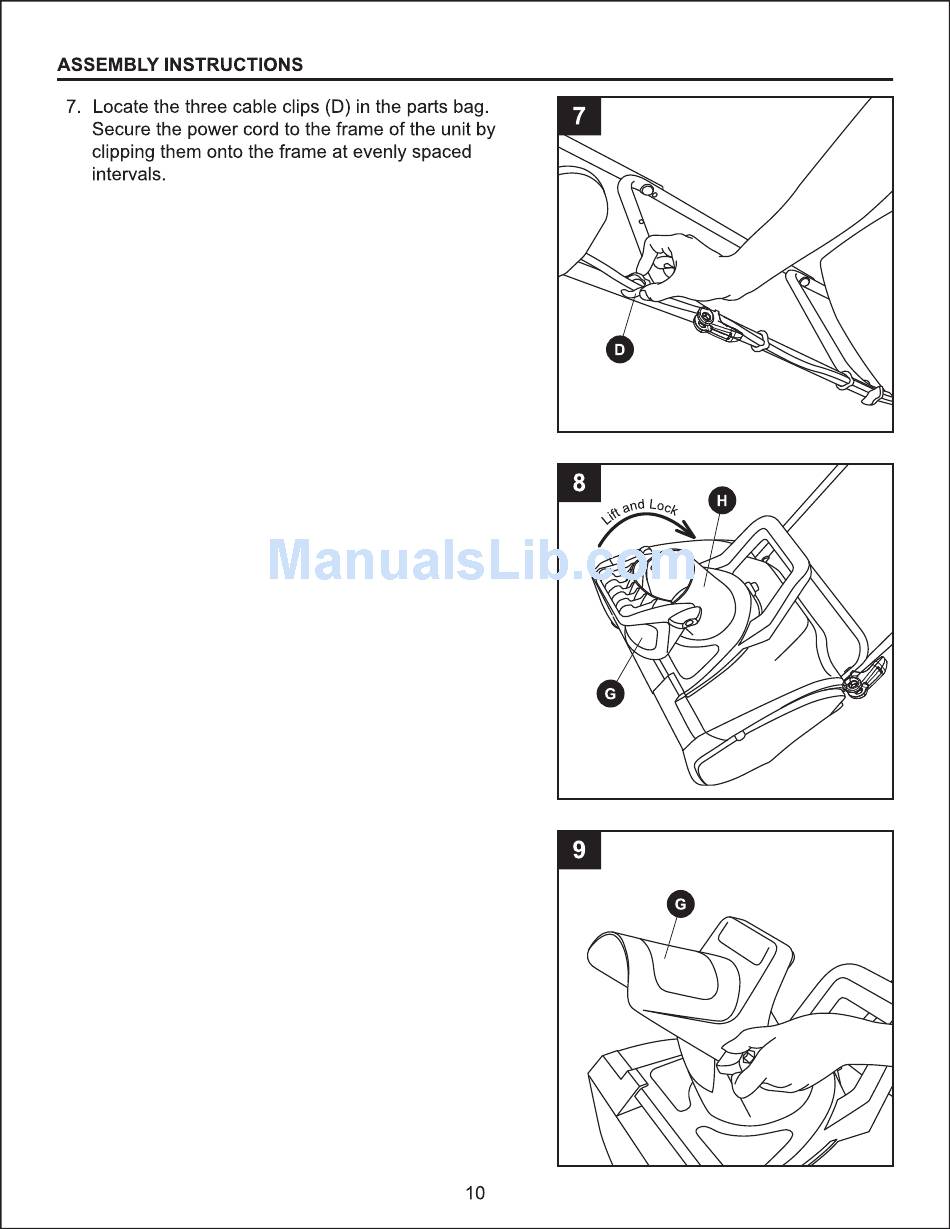

8. Loosen the two knobs on the chute deflector (G).
Lift the chute deflector (G) so that it locks securely
onto the discharge chute (H).
9. Loosen the two knobs on the chute deflector (G).
Set the chute deflector to the desired angle and
tighten the chute deflector knobs.
Note: Do not overtighten the chute deflector knobs.
