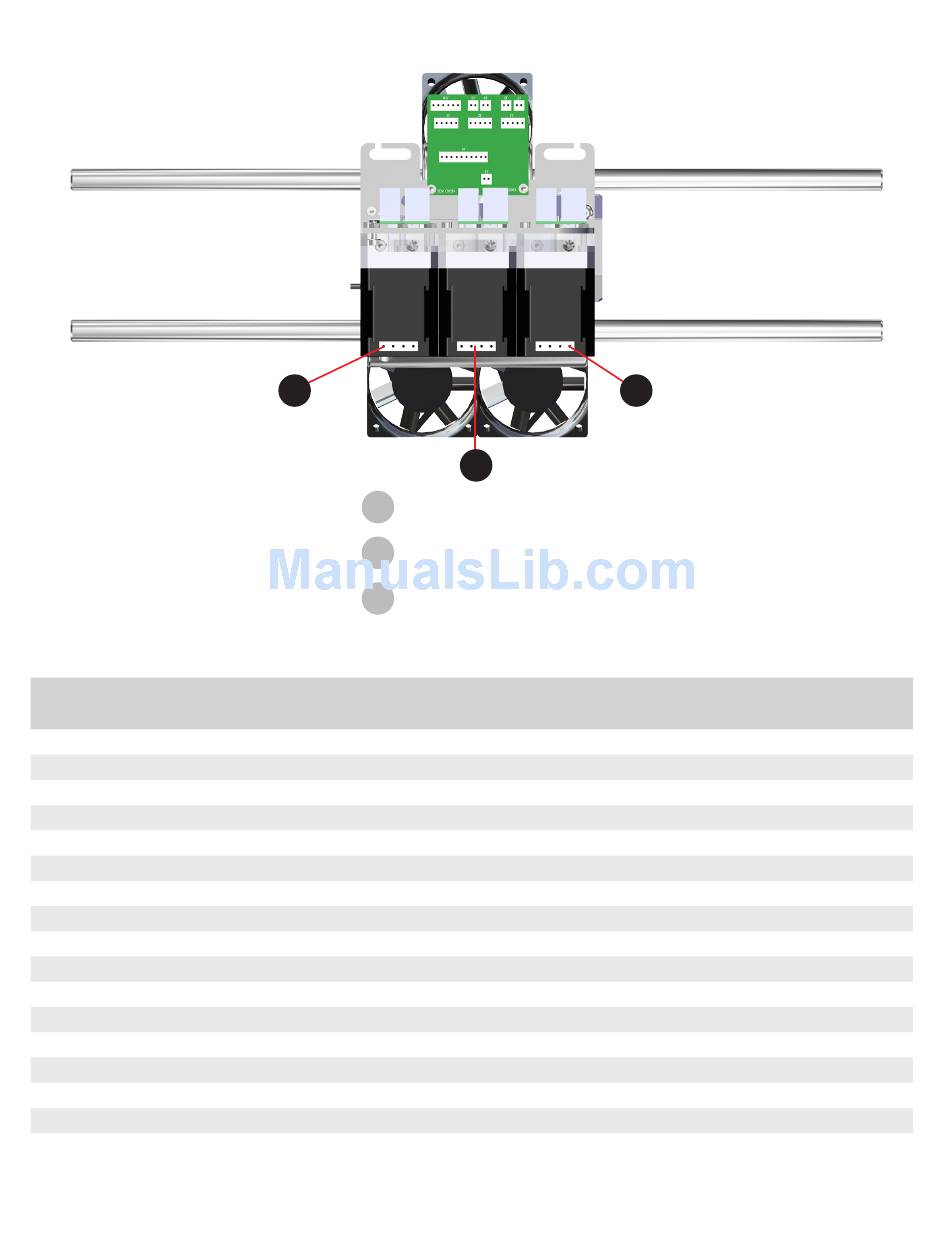

ELECTRICAL CONNECTIONS

Main Extruder
PCB
X1 (A) -
X2 (A) -
X3 (A) -
X1 (B) -
X2 (B) -
X3 (B) -
J1 401888-00
J2 401888-00
J3 401888-00
Print Jet 1
Print Jet 2
Print Jet 3
J4 P3 - 401888-00
J6 401887-00
J7 401885-00
J9 401885-00
J10 401884-00
3D Systems, Inc.
A
A
Extruder 1 Connector
B
Extruder 2 Connector
C
Extruder 3 Connector
Cable Extruder PCB Connector
401889-00
401889-00
401889-00
Extruder 1 PCB: Junction P-Jet
401889-00
Extruder 2 PCB: Junction P-Jet
401889-00
Extruder 3 PCB: Junction P-Jet
401889-00
Extruder 1 PCB: Junction B-Out
Extruder 2 PCB: Junction B-Out
Extruder 3 PCB: Junction B-Out
Extruder 1 PCB: Junction Ex
Extruder 2 PCB: Junction Ex
Extruder 3 PCB: Junction Ex
Back
C
Front
B
Extruder 1 Motor: Junction
Extruder 2 Motor: Junction
Extruder 3 Motor: Junction
Extruder 1: 403022-00 (Print Jet 1)
Extruder 2: 403022-00 (Print Jet 2)
Extruder 3: 403022-00 (Print Jet 3)
CubePro LED Wire Harness 2
CubePro Fan Wire Harness 2 (Right Fan)
CubePro Fan Wire Harness 2 (Left Fan)
CubePro Fan Wire Harness 3
