XYZprinting 3D Printer
User manual
Touch Screen Menu, Functions and Messages
The manual is mainly intended for users to understand how to
use the da Vinci Color 3D printer ("da Vinci Color") correctly.
In this manual, users can learn more about the operating tips,
application skills and maintenance of the da Vinci Color 3D printer.
Please refer support.http://support.xyzprinting.com to download
latest manual & software for better user experience.
New member is required to register account on the website
before able to access to those resources.
For more information on the da Vinci Color 3D printer and the
complete XYZprinting product line, please contact your local dealer or
visit the official website of XYZprinting: http://www.xyzprinting.com.
ENG
2
3
5
7
8
19
20

Advertisement

loading
Need help?

Need help?

Do you have a question about the da Vinci Color and is the answer not in the manual?

Questions and answers

Related Manuals for XYZ Printing da Vinci Color

Summary of Contents for XYZ Printing da Vinci Color

  • Page 1: Table Of Contents

    New member is required to register account on the website before able to access to those resources. For more information on the da Vinci Color 3D printer and the complete XYZprinting product line, please contact your local dealer or visit the official website of XYZprinting: http://www.xyzprinting.com.

  • Page 2: Safety Precautions

    Safety Precautions Safety and Compliance Please read through this manual and all safety precautions carefully before using, operating, unpacking, replacing, remov- ing any part or maintaining this product. Please also comply with the instructions of relevant safety precautions. CAUTION Important Safety Precautions Heavy object.

  • Page 3: Product Descriptions

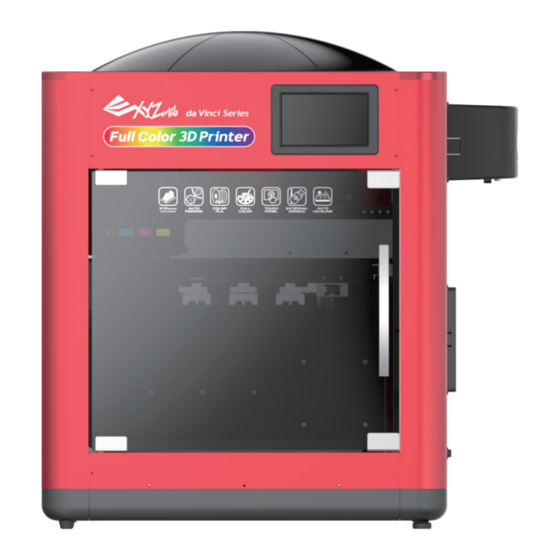

    Product Descriptions Product exterior 1. 5 inch color touch panel 2. Auto-feeding module 3. Print head 4. Print bed+EZ removable rubber magnet 5. Filament spool holder 6. USB Port 7. USB Port 8. Power switch (WiFi dongle) 9. USB Port (To PC) 10.

  • Page 4: Specifications

    Product Descriptions Accessory Checklist Precautions and Instructions of Maintenance Tools Quick Guide Top Cover The following tools are intended for use under the guidance or guard- USB drive Guide Tube ianship of an adult only. Do not allow children unfamiliar with the tools 3D Color-inkjet PLA PC Mylar x 2 to have access to them in case of danger.

  • Page 5: Unpacking And Installation

    Unpacking and Installation Move the printer to a table or plat- form. (Do not move the printer by Remove the plastic wrap and PP. yourself as it is heavy.) Remove the packaging materials, top cover box, assessory box and plastic cover. Remove the tape on the body (4 in Open front door, remove the tape at mark printer door post total).
  • Page 6 Unpacking and Installation Insert the guide tube through the top Remove the cable tie and foam in front and back of the front door. cover, and then insert one end into the printing module. Place the top cover down with the Insert the other end of the guide tube into the feed module and guide tube going through the hole in secure it tightly.
  • Page 7 Touch Screen Menu, Functions and Messages Main screen Settings Filament/Ink loading USB Printing Menu and unloading This menu can be used to import This includes the functions in Home files (.3cp) from a USB drive to the Page 1: This includes Filament, Ink Load machine for printing without a com- Settings of the Print-Bed, Print- and Unload.

  • Page 8: Function Operation And Instructions

    Function Operation and Instructions USB printing 1. Check if the USB drive is 2. Tap the USB Printing Menu in 3. Select the file you want to 4. Check file information and plugged to the machine. the main screen. print. tap “Print”.
  • Page 9 Filament Refill Material da Vinci Color will prompt you to refill material. 1. Tap the icon when printing. 2. The screen will show filament status, 3. Confirm the operation. please tap "Refill" .
  • Page 10 Function Operation and Instructions C. Ink Cartridge Installation The da Vinci Color uses four color inks which can be replaced separately. Ink Guidance 1. Prepare several paper towels and the 2. Unpack the ink cartridge. 3. Remove the cartridge cover.
  • Page 11 Function Operation and Instructions Tap the ink, the screen will show the status of the ink, including "Ink Low", "No Ink", "Invalid Ink", and "Invalid Color" Change Ink 1. Tap Change Ink and tap to 2. Confirm the operation. 3.Wait until the cartridge moves 4.
  • Page 12 Function Operation and Instructions C2-2 Calibration Ink Cartridge Troubleshoot Pic 1 Pic 2 Pic 2-1 Picture 1 shows an example of Picture 2 show some slight color Picture 2-1 shown some slighly normal test page. offset on black ink smudge on the horizon- tal &...
  • Page 13 Function Operation and Instructions C2-2 Calibration Color Calibration 1. Tap Calibration. 2. Tap Color. 3. Please fix the printing paper onto the print bed. 4. Take out the printed paper and tap 5. Check the printed calibration chart using the on- PROCEED.
  • Page 14 Function Operation and Instructions D. Setting D1-1 Print-Bed Calibration (leveling) 1. Select Calibration. 2. Confirm the operation. 3. Wait while the sensor measures the height of the print bed at three different locations. Once the 4. After the calibration is measurement is complete, the printer will automatically level the print bed.
  • Page 15 Function Operation and Instructions D2-1 Print-Head Clean Nozzle 1. Tap Clean Nozzle in the print head section. 2. Check if cleaning is necessary. Tap Check to clean it. When the temperature of the print head reaches the operating temperature, the cleaning operation will start. Note: do not touch the metal part of the print head as it becomes hot during the operation.
  • Page 16 Function Operation and Instructions Filament Refer to the Change Filament function in the main screen. WiFi Before POWER ON, please insert the WiFi dongle into USB port on the top of printer & proceed with the WiFi setup 1. Tap ADD and the printer will 2.
  • Page 17 The Sound option can be set to ON or OFF to control the sound emitted when the touch screen is tapped The da Vinci Color provides eight display languages, including traditional and simplified Chinese, English, Japanese, German, Italian, Spanish and French.
  • Page 18 Function Operation and Instructions Door Lock 1. Door lock on (ON) : when printing, 2. Door lock off (OFF) : the door won't the door will be locked; 60 sec after be locked during printing, pause, or stop the print ends, the door will unlock. The status.

  • Page 19: Printing

    For details, visit the official website: http://www.xyzprinting.com/ 1. Connect the computer and printer and select da Vinci COLOR. 2. Click on OPEN to select the model file to be printed from the 3.

  • Page 20: Support Detail

    Support detail When the problem occurs with the printer, please refer to the following troubleshooting instructions. If the problem persists, please contact the Customer Service Center. Problem code and handling When a problem occurs with the printer, the service code will be displayed on the printer screen and / or the software interface. Please refer to this service code description form for preliminary testing.
