2 Wiring Guide - Ethernet and ATMF 25.6
2.2.3

LAN Ethernet Wiring

Procedure
CAUTION
MDI vs. MDI X hub
ports and the STPro
30 / 238

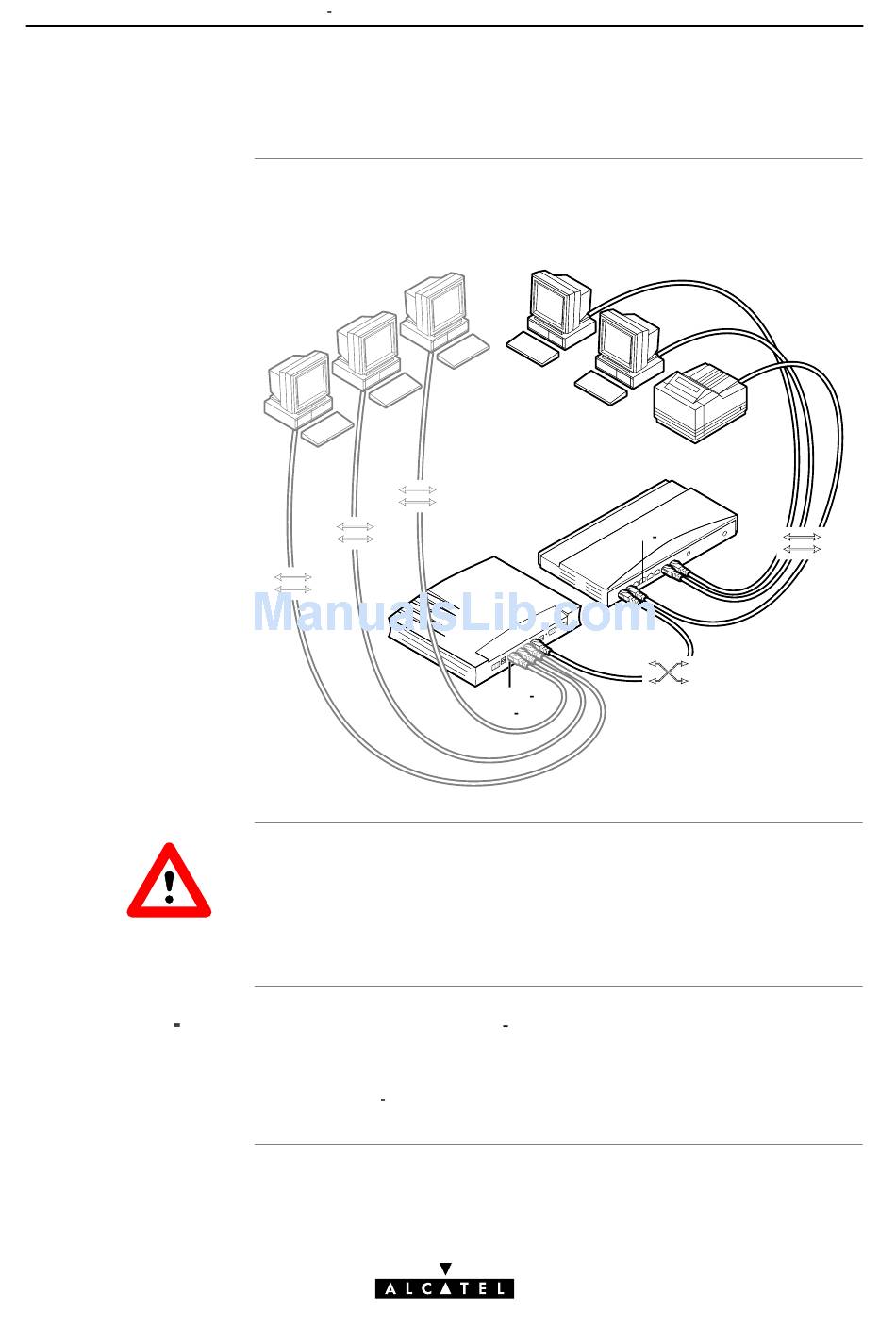

Proceed as indicated in the following figure to make the
connections for a LAN (STPro hub specific connections are shaded
gray):
MDI
MDI
Cascading Repeating Hubs
You may cascade up to four repeating hubs in your LAN
(limitations of Repeating Ethernet V2.0/IEEE802.3 hubs). In case
more hubs need to be cascaded, you must use switching hubs.
In the above figure an MDI X port on the hub connects to the
STPro. Therefore, a crossover LAN cable is used.
Note: In case the hub's uplink" port is used to wire the STPro you can use the
included straight through LAN cable.
MDI
MDI
Hub
10 Base T
MDI X
MDI
MDI
MDI X
