Summary of Contents for Lilin IPS6228E

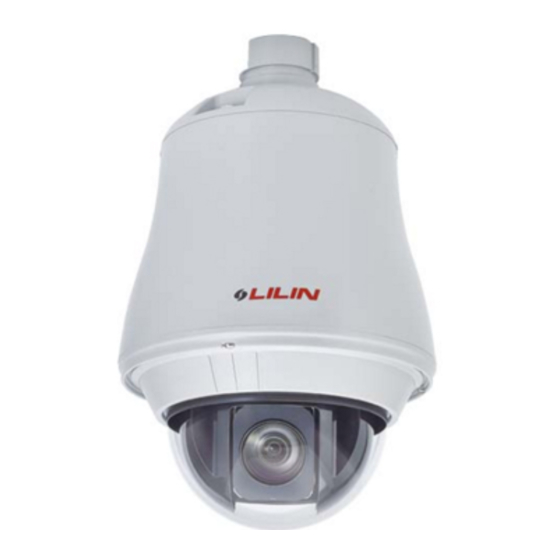

- Page 1 Outdoor D/N WDR HD Fast Dome IP Camera IPS4184E/4188E, IPS4204E/4208E IPS4304E/4308E, IPS6224E/6228E Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 PREFACE IPS4184E/4188E, IPS4204E/4208E, IPS4304E/4308E, IPS6224E/6228E with High resolution of HD/Full HD offer significant enhancement and refinements to bring you the most innovative surveillance solutions. IPS4184E/4188E, IPS4204E/4208E, IPS4304E/4308E, IPS6224E/6228E are the leading product in the industry offering the most advanced features such as 18X/20X/30X/22X optical zoom lens, Digital Zoom, Wide Dynamic Range, Digital Noise Reduction, High Light Compensation and Digital Image Stabilizer.
- Page 4 FEATURES Auto Focus Lens Build-in 30X optical zoom lens with focal length 4.4~132mm [30X Model] Build-in 22X optical zoom lens with focal length 4.7~103.4mm [22X Model] Build-in 20X optical zoom lens with focal length 4.7~94mm [20X Model] Build-in 18X optical zoom lens with focal length 4.7~84.6mm [18X Model] Day &...
-
Page 5: Warnings And Cautions
WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3. -
Page 6: Structural Element
STRUCTURAL ELEMENT Dome Cover Video Out Jack Camera Case Alarm In/Out connector Upper Base RJ45 Network Connector Power In Jack (AC100 ~ 240V) Audio In/Out Jack Power In Jack (AC24V) - Page 7 Fast Dome Connection Jack and Cable Requirement AC100~240V Power Cable AC24V Power Cable Video Signal Cable To Monitor Alarm In/Out Cable To PIR CAT5 Network Cable Signal Shield Wire 1. AC100 ~ 240V Power Cable 2. AC24V Power Cable Recommended Cable: ...
- Page 8 b. Prepare the individual conductors for clamping. After clamping the contacts, push them into the proper holes in the accessory connector of this camera until they snap in place. Contact CAUTIONS : CONNECT THIS TO 24V AC CLASS 2 POWER SUPPLY ONLY. 3.
-
Page 9: Installation
INSTALLATION Installation Structural Drawing Micro SD/SDHC Socket... - Page 10 Step 1 Separate bracket from base of bracket Untighten four screws Separate bracket and from bracket base of bracket from top of bolt. Step 2 Fix base of bracket on the wall 70mm 60mm Drill holes on desired Tighten four screws to If this circle hole is location fix the base of bracket...
- Page 11 Step 4 Connect Jack Alarm Out: Reset (Pink) (Brown) (Gray) COM. (White) Alarm In: (Black) VIDEO OUT (Red) (Green) (Orange) (Blue) (Yellow) (Violet) Attach outdoor fast Connect video cable Connect alarm out/ Connect Network cable dome camera including input cable bracket to base of bracket AC100~240V...
- Page 12 Step 2 To install fast dome camera Attach camera case to To take the camera case Turn the camera case Tighten three screws to upper base into the hole of upper clockwise to tight upper base to fix the base position camera case Installation Micro SD/SDHC card, please follow instruction as below:...
-
Page 13: Specification
SPECIFICATION 1 8 X D / N W D R H D FA S T D O M E I P C A M E R A General Model IPS4184E IPS4188E Power Supply AC24V AC100~240V Power Consumption 25W (with Heater) 63W (with Heater) Image Pick-up Device 1/2.8 Type Exmor CMOS Sensor... - Page 14 Android support System integration ONVIF & LILIN HTTP API CMX HD3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 SD Card Recording Support Micro SD/SDHC card for circular recording(card is not included)
- Page 15 2 0 X D / N 1 0 8 0 P H D W D R P T Z D O M E I P C A M E R A General Model IPS4204E IPS4208E AC24V AC100~240V Power Supply PoE+ (IEEE802.3at compliant) PoE+ 14W(does not support the heater) 37W (with Heater) 48W (with Heater)
- Page 16 Android support System integration ONVIF & LILIN HTTP API CMX 3.6/ Navigator 3.8 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 SD Card Recording Support Micro SD/SDHC/SDXC card for circular recording(card is not included)
- Page 17 3 0 X D / N 1 0 8 0 P H D P T Z D O M E I P C A M E R A General Model IPS4304E IPS4308E AC24V AC100~240V Power Supply PoE+ (IEEE802.3at compliant) PoE+ (IEEE802.3at compliant) Power Consumption 37W (with Heater) / PoE+ 14W 48W (with Heater) / PoE+ 14W...
- Page 18 Android support System integration ONVIF & LILIN HTTP API CMX 3.6/ Navigator 3.8 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 SD Card Recording Support Micro SD/SDHC/SDXC card for circular recording(card is not included)
- Page 19 2 2 X D / N W D R H D FA S T D O M E I P C A M E R A General Model IPS6224E IPS6228E Power Supply AC24V AC100~240V Power Consumption 25W (with Heater) 63W (with Heater) Image Pick-up Device Panasonic 1/3"...
- Page 20 Android support System integration ONVIF & LILIN HTTP API CMX HD3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 Design and specification are subject to change without notice. 66-IPS6228CSE-3...
- Page 21 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPS6228CSE...
