Summary of Contents for DMP Electronics eBOX-3350MX Series

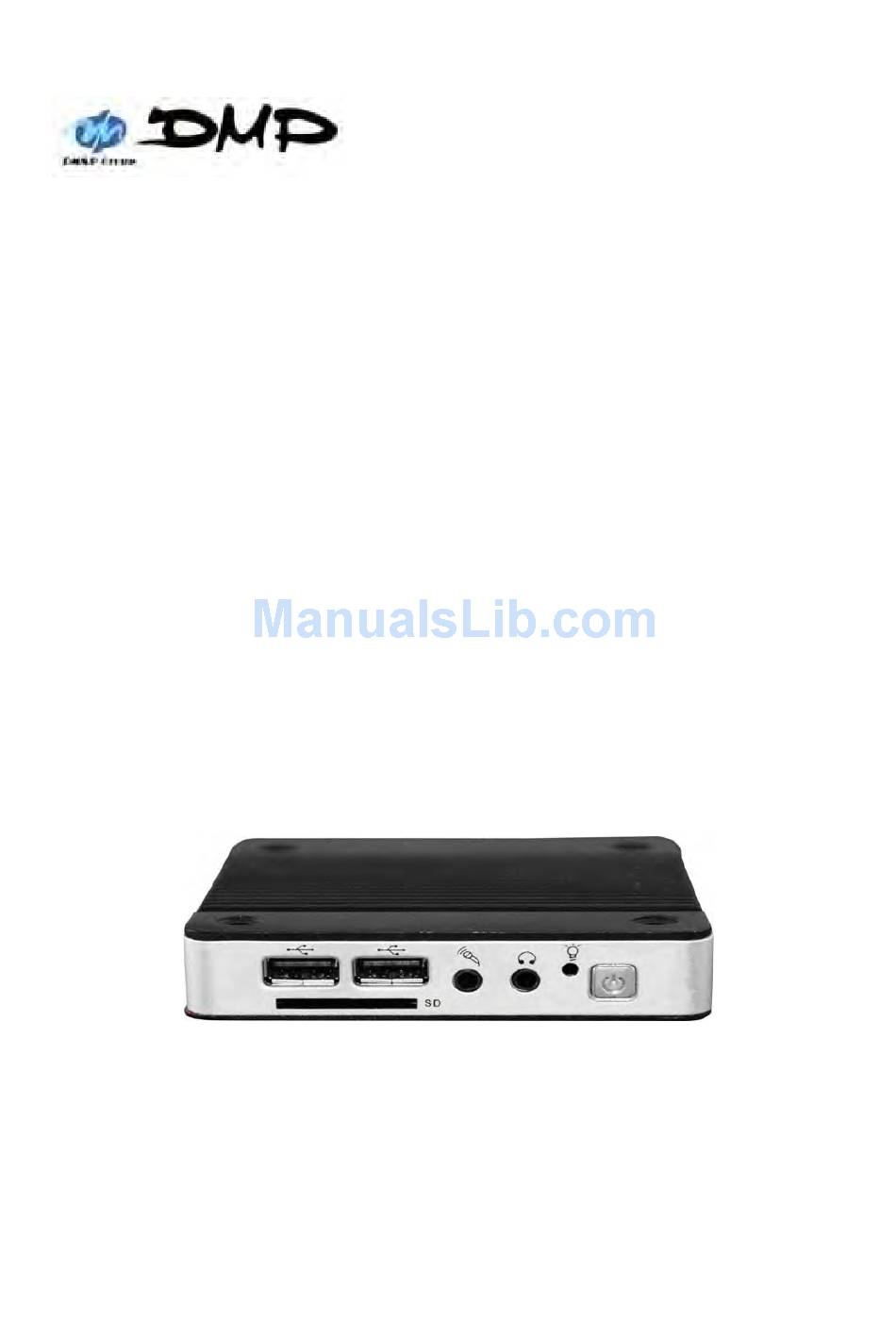

- Page 1 Series User’s Manual...
- Page 2 OTICE TO SERS DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 The serial number of this product is located at the rear panel of your eBOX- 3350MX/eBOX-3350MX-AP series. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model type of this product is also indicated on the product label of your gift box as following: eBOX-3350MX or eBOX-3350MX-AP.
- Page 4 AFETY NFORMATION WARNING Do not expose eBOX-3350MX to rain or moisture, in order to prevent shock and fire hazard. Never install eBOX-3350MX in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
- Page 5 eBOX-3350MX...
- Page 6 RODUCT ESCRIPTION With this product, herewith also known as eBOX-3350MX/eBOX-3350MX-AP, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 512MB System memory, VGA display, USB, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
..............1 NPACKING OUR E ................1 ACKING ..............1 HECK EFORE 1 – P ..................2 REFACE 2 – eBOX-3350MX O ............3 VERVIEW 3 – E CPU B ..............4 MBEDDED OARD .............. 4 YSTEM PECIFICATION 4 – P ................. - Page 8 ........13 PPENDIX NBOARD ONNECTORS UMMARY CPU B ..........13 UMMARY ABLE FOR OARD eBOX-3350MX/3350MX-AP ... RONT ONNECTORS UTLINE FOR eBOX-3350MX/3350MX-AP ONNECTORS UTLINE FOR ..............15-16 SSIGNMENTS VESA M OW TO USE MM TO OUNT ........... 18 ARRANTY ERMS AND ONDITION ................
-
Page 9: Unpacking Your E Box
NPACKING MBED You have just acquired eBOX-3350MX, please check the Congratulation! following items: eBOX-3350MX VESA PC ACKING IST FOR SERIES Item No. Description Q’ty eBOX-3350MX or eBOX-3350MX-AP Mini PC 75 x 75mm to 100 x100mm VESA mounting rack (Optional) * Note: The accessories are subject to change without immediate notice. -
Page 10: Preface
So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then eBOX-3350MX will be surely meet your need. -
Page 11: Ebox-3350Mx Overview
For connection to devices with USB interface (HDD, CD/DVD-ROM, Memory Stick, etc.) Audio Line Out Audio output to speaker eBOX-3350MX-AP (Auto Power On) Audio Mic In For Microphone Input SD Slot This system is bootable from SD card. Reset Button... -
Page 12: Embedded Cpu Board
16-bit DRAM bus ) 95 x 95 x 20 mm / 277g BIOS Operating System Supported AMI BIOS Suitable for: Windows XP Home/Pro. Windows XP Embedded Resolution up to 1600 x 1200 High Colors Windows Embedded CE Linux OS eBOX-3350MX... -
Page 13: Peripherals
ERIPHERALS ONNECTING THE OWER DAPTOR Mini USB Power Jack To use eBOX-3350MX immediately, please attach the power adapter for the power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input of eBOX- 3350MX/3350MX-AP. -
Page 14: Cusb
ERIPHERALS ONNECTING THE PEAKER ARPHONE eBOX-3350MX provides USB ports with (Two in the front & one at the back). Microphone/Earphone Front cabinet The eBox-3350MX supports Microphone Input and Speaker Output Reset Button For system reset or turn on *Note: Model type with Auto Power On feature has Reset Button Eliminated. -
Page 15: Bios
BIOS eBOX-3350MX ECONFIGURING Take note that AMI BIOS is used in the eBOX-3350MX. To reconfigure the eBOX-3350MX, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu to the desired setup for change. -
Page 16: Technical Specifications
Weight 277g Certification CE, FCC eBOX-3350MX Model Listing: eBOX-3350MX: Standard Version eBOX-3350MX-AP: Standard Version with Auto Power On Support Note: “-AP” indicated Auto Power On supported feature by which system will be turned on automatically whenever power is supplied. eBOX-3350MX... -
Page 17: Taking Care Your Ebox Vesa Pc
-3350MX AKING ARE OF YOUR E This section gives you some guidelines on using eBOX-3350MX – Safe using, Storing and Handling. TORING Do not place eBOX-3350MX in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 18: Using Cables For Connection
Do not use cut or damaged cables for connection. VESA PC LEANING Clean the eBOX-3350MX with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of eBOX-3350MX. -
Page 19: Troubleshooting
ROUBLESHOOTING A. VESA PC does not start Make sure the eBOX-3350MX is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “eBOX-3350MX Overview”. -
Page 20: Operating System Not Found
Press <DEL> to enter BIOS Setup main menu window. Follow the steps as written in item B. BIOS error message. If you have just connect eBOX-3350MX to a CD/DVD or USB Drivers, remove these peripherals.. And restart eBOX-3350MX to confirm that the Windows operating system starts properly. -
Page 21: Summary Table For F C O
15-pin Line-Out Audio Jack 2-pin Microphone Audio Jack 2-pin DC 5V Input Mini USB JACK 1-pin eBOX-3350MX RONT ONNECTORS UTLINE FOR SD Slot USB 2.0 Min In, Line Out Power LED Reset Button *Note: Model Type with Auto Power On feature... -
Page 22: Rear Connectors O
ONNECTORS UTLINE FOR Power Jack RJ-45 LAN USB 2.0 eBOX-3350MX... -
Page 23: Pin Assignments
)– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND J5,J6:USB : For connection to external USB device –4-pin USB Type 1 Connector (H) Pin # Signal Name USB2- USB2+ LED: POWER ON/OFF LED Color State Green Power On eBOX-3350MX... - Page 24 SSIGNMENTS J15: VGA – 15-pin D-Sub Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J9: LAN RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- eBOX-3350MX...
- Page 25 How to use 75 x 75mm to 100 x 100 mm VESA Mount Rack (Optional item) 2. Retaining screw on the VESA holes 1. Check the spare pars above. of the eBOX-3350MX unit. 4. Front View 3. Rear View 6. Done 5.
-
Page 26: Warranty
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment. - Page 27 eBOX-3350MX...
