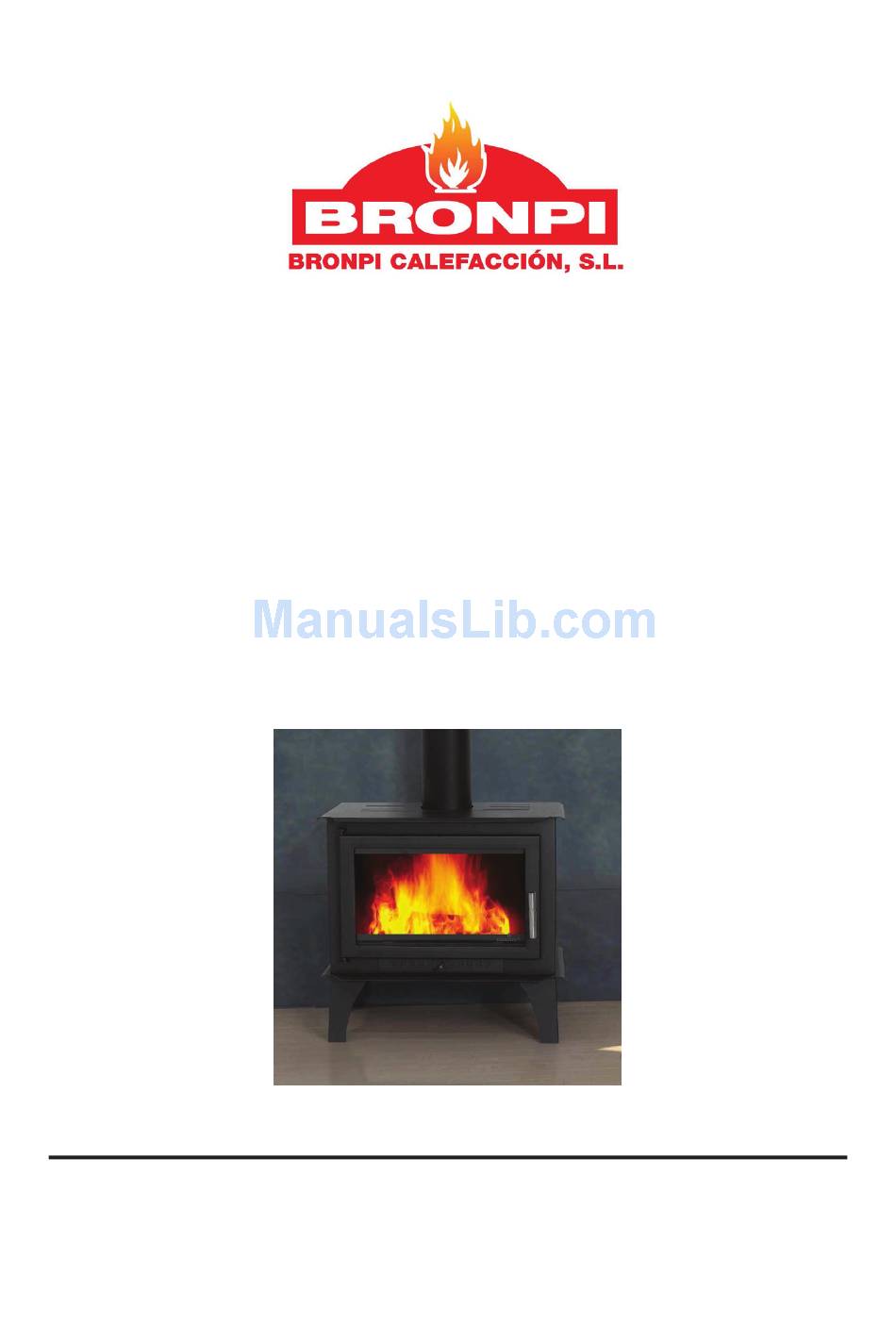

- Page 1 INSTRUCTION MANUAL Modelo SENA...
- Page 2 Dear customer: ENG We would like to thank you for choosing one of our products. The product you have just purchased is highly valuable and this is why we kindly invite you to read carefully this brief manual so as you can make the most of your equipment.
-
Page 3: General Warnings
GENERAL WARNINGS The installation of the stove must be done according to the local regulations, including those referred to the national or European rules. Our responsibility is limited to the supply of the equipment. The installation must be done according to the foreseen procedures for this type of equipments, following the prescriptions detailed in these instructions, and the rules established for this profession. - Page 4 REGULATIONS ENG To get a perfect combustion regulation, this model presents different regulation. The working process is as follow: PRIMARY AIR REGULATION It is situated in the front part of the ash pan and allows regulating the air inlet through the ash pan and the grate towards the fuel. The primary air is necessary for the combustion process.
- Page 5 ARRANGEMENT ELEMENTS REPLACEMENT ENG We will find a rectangular piece inside the combustion chamber, which is the deflector. The absence of a deflector causes a big depression with a very fast combustion, excessive wood consumption, and the subsequent overheating of the equipment. It normally comes installed from the factory and to remove it we need to proceed as follow: 2.1 DEFLECTOR 2.2 INTERNAL SHEETS.
- Page 6 Handle: A “cold hands” handle to open the door. To install it we need to introduce it from top to bottom and then spin it around.
-
Page 7: Exploded View Drawing
TECHNICAL FEATURES EXPLODED VIEW DRAWING / Potencia calorífica / Puissance nominale/ Nominal output 9 kW Rendimiento / Rendement / Efficiency / Rendimento 75 % Emisiones CO (13% O2) / Taux de CO (13%O2) / Emissions of 0.29 % CO (13%CO) / Emissões CO (13% O2) Temperatura de humos / T°... - Page 8 N° DESCRIÇÃO / DESCRIPTION N° DESCRIÇÃO / DESCRIPTION Rejilla Base Salida Humos Maneta Perno Puerta Maneta Tirador Solapa Cajon Pata Cajon Deflector Regulacion Primaria Vermiculita Trasera Pomo Regulador Vermiculita Lateral Soporte Bisagra Techo Pernio Bisagra Sujeta Vermiculita Lateral Limpia Cristal Sujeta Vermiculita Trasero Cristal Puerta Salvatroncos...
- Page 9 IMPORTANT ENG This product can be installed next to the walls of the room, provided that they meet the following requirements: • To respect a distance of about 5-10 cm. to the wall. • To check that the wall is completely made of brick, fireproof brick blocks, concrete, thin hollow brick, etc., and that they are covered by a material susceptible to support high temperatures.
- Page 10 The data provided in this manual are not binding. The company reserves the right to carry out modifications and improvements without notice.
- Page 11 Please, do not hesitate to contact your dealer for further information.
