REMOTE OPERATION
‧Hard disk overwriting
‧Pre- / post-alarm record time
‧Record time setting
‧Record path
If "Manual" is checked, click " " (Record) on the main control panel to start the manual recording immediately,
and the recordings will be saved in the specified location. The red text indication "REC" will be shown at the top left
corner of the image display view.
If "Motion" and / or "Alarm" are checked, the recording function will also be enabled at the remote side when any
event is triggered at the DVR side, and the recordings will be saved in the specified location.
Playback

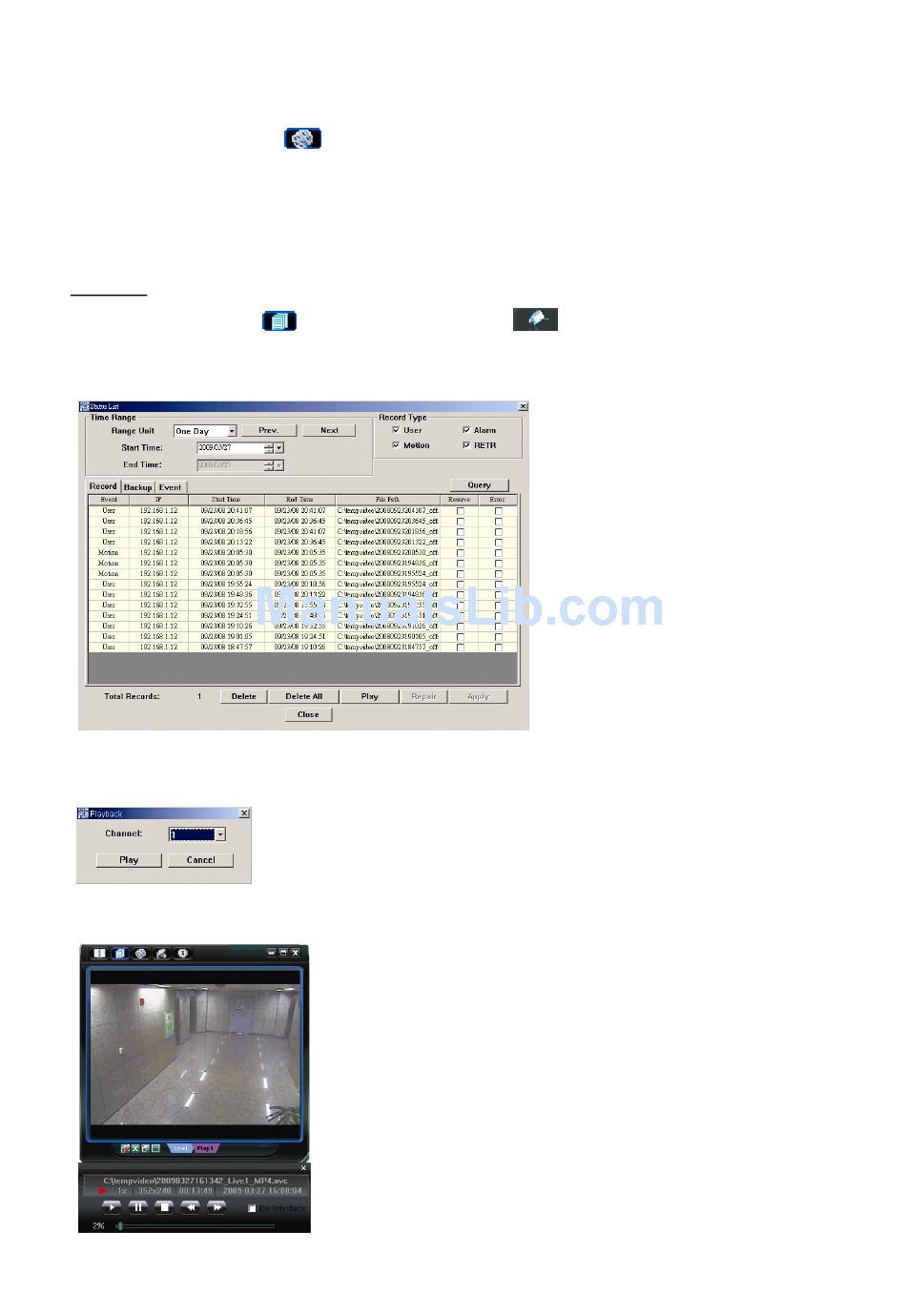

To play a recording, click " " (Miscellaneous Control) → " " (Status List), and select the "Record" tab or
"Backup" tab. A list of all the recordings will be shown by defaults, and you can also sort out the logs you want to
speed up the search time.
To immediately play a recording, select a log from the list, and click "Play", or double-click the selected log. A
channel selection window will pop up, and you can select the channel you want to see from the drop-down list.
Then, click "Play", and the playback control panel will be shown at the bottom of the main control panel similar to
the following.
