FULL D1 DVR

User Manual

 Intelligent Video Surveillance
 GUI Display with USB Mouse Control
alarm shop
Please read instructions thoroughly before operation and retain it for future reference.
For the actual display & operation, please refer to your DVR in hand.
700_708h_m769_769-b_769h_Manual_V1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVC700 and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech AVC700

Summary of Contents for Avtech AVC700

  • Page 1: User Manual

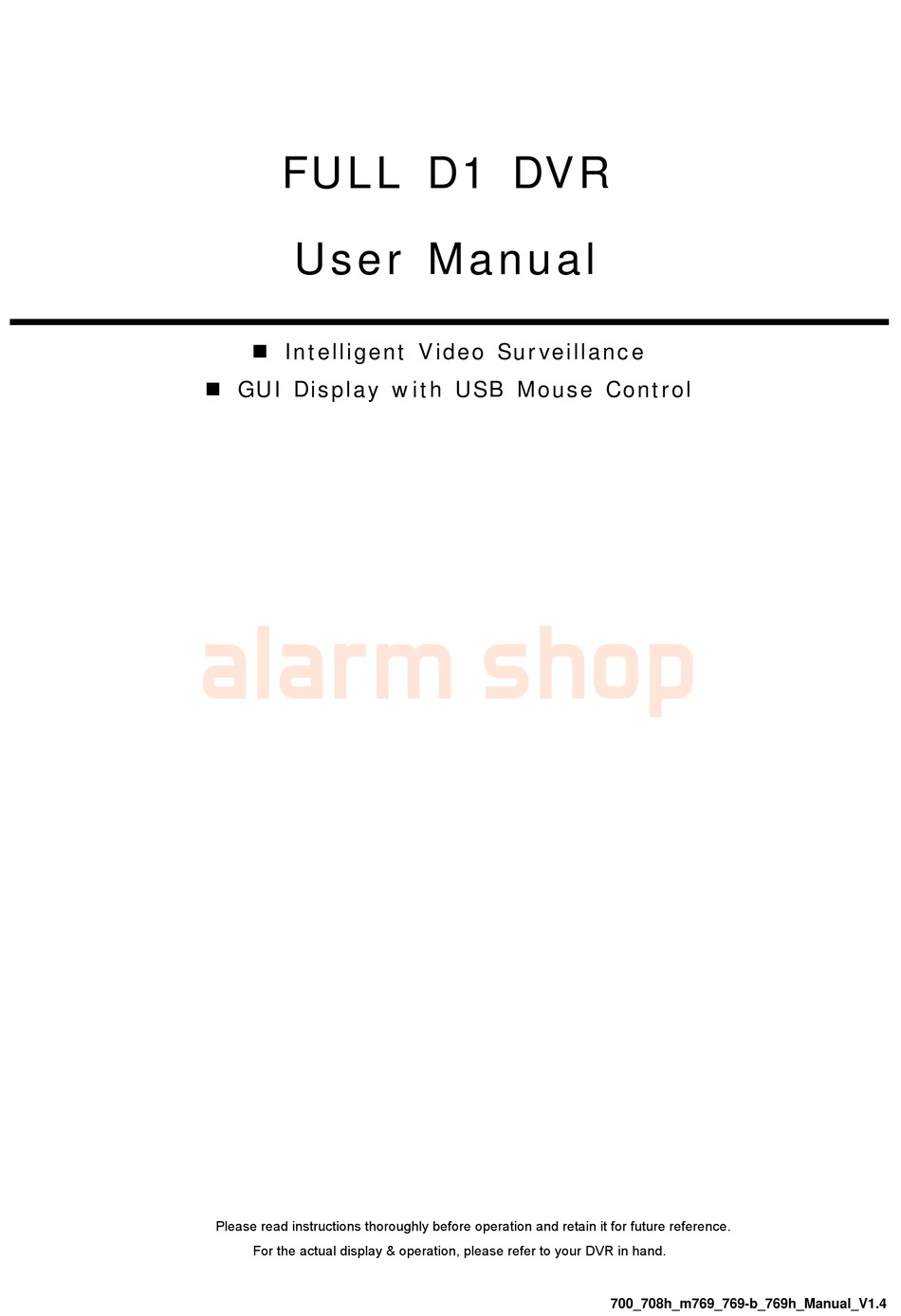

    FULL D1 DVR User Manual  Intelligent Video Surveillance  GUI Display with USB Mouse Control alarm shop Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. 700_708h_m769_769-b_769h_Manual_V1.4...

  • Page 2: Trademark Acknowledgements

    IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.
  • Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. HARDWARE OVERVIEW........................ 1 1.1 Package Content ..............................1 1.2 Front Panel ................................1 1.3 Rear Panel ................................2 2. CONNECTION AND SETUP ......................4 2.1 SATA Hard Disk Installation............................4 2.2 Camera Connection ...............................5 2.2.1 Normal / DCCS Camera ..........................5 2.2.2 PTZ Camera ..............................5 2.3 External Device Connection...........................6 2.4 DVR Power On ..............................7...
  • Page 5 5.3.1 QUICK SEARCH ............................27 5.3.2 EVENT SEARCH............................27 5.3.3 HDD INFO ..............................28 5.3.4 EVENT LOG ..............................28 5.4 ADVANCED CONFIG............................29 5.4.1 CAMERA ..............................29 5.4.2 DETECTION ..............................29 5.4.3 ALERT .................................30 5.4.4 NETWORK ..............................31 5.4.5 DISPLAY..............................34 5.4.6 RECORD ..............................35 5.4.7 DEVICES..............................36 5.4.8 DCCS ................................37 5.4.9 IVS................................38 5.4.10 NOTIFY ..............................42 5.5 SCHEDULE SETTING ............................45...

  • Page 6: Hardware Overview

    HARDWARE OVERVIEW 1. HARDWARE OVERVIEW Note: The functions on the front panel and rear panel may vary, depending on the model you have. 1.1 Package Content  Standard Package  DVR  HDD screws  Adapter & power cord  USB Mouse ...

  • Page 7: Rear Panel

    HARDWARE OVERVIEW 11)  (▲) /  (▼) /  (◄) /  (►) Press ▲ / ▼ / ◄ / ► to move up / down / left / right. In the playback mode: Press “” to pause playback. Press “”...
  • Page 8 HARDWARE OVERVIEW Connect to the VGA port of the monitor which supports VGA video output. Note: Dual video outputs via both VGA and HDMI ports are supported. Connect the IR receiver extension line for remote control. eSATA This port is used to connect a storage device supporting eSATA interface; for instance, an external hard disk or a disk array.

  • Page 9: Connection And Setup

    CONNECTION AND SETUP 2. CONNECTION AND SETUP Before the DVR is powered on, make sure you have installed a hard disk, connected at least one camera and a HDMI monitor. For details, please refer to the following sections. Note: The DVR is designed to automatically detect the video system of the connected cameras (NTSC or PAL).

  • Page 10: Camera Connection

    CONNECTION AND SETUP 2.2 Camera Connection Install the camera on the wall or ceiling based on your installation environment and camera type. For installation details, please refer to the user manual of your camera. 2.2.1 Normal / DCCS Camera 1) Connecting to DVR video input Connect the camera video output to the DVR video input port with a coaxial cable or RCA line with a BNC connector.

  • Page 11: External Device Connection

    CONNECTION AND SETUP STEP 3: Twist the RS485-A and RS485-B wires of the RJ11 cable and the speed dome camera together. Twist the RS485-A (red) and RS485-B (green) wires of the RJ11 cable to the RS485-A (brown) and RS485-B (orange) wires of the speed dome camera. To protect the naked wires, use the insulation tape to cover on the twisted wires.

  • Page 12: Dvr Power On

    CONNECTION AND SETUP 2.4 DVR Power On This device should be operated only with the type of power source indicated on the manufacturer’s label. Connect the indicated AC power cord to the power adapter, and plug into an electrical outlet. Then turn the power switch on the rear panel to “—“.

  • Page 13: Clear Hard Disk

    CONNECTION AND SETUP 2.6 Clear Hard Disk It’s recommended to clear all data in the hard disk for the first time to user this DVR to ensure the recorded data are not mixed with other data previously saved in the same hard disk. Right-click to show the main menu, and select (SYSTEM) ...

  • Page 14: Examining Dccs Signal Transmission

    CONNECTION AND SETUP 2.8 Examining DCCS Signal Transmission Note: Needed only when the camera connected to CH1 supports DCCS. Check the channel status bar of CH1, and see if the status icon of DCCS connection is “ ”.  If yes, the connection is ok. ...

  • Page 15: User Interface

    USER INTERFACE 3. USER INTERFACE 3.1 DVR Access Connect your USB mouse to one of the USB ports on the DVR front panel, and check if there’s a mouse icon ( on the screen, indicating the USB mouse is detected properly. Move your mouse to enter the DVR password with the password keypad.

  • Page 16: Channel Status

    USER INTERFACE 3.1.2 Channel Status. Note: Certain icons are for selected models only. Original size Fit to screen DCCS connection OK DCCS connection failed Live audio on Audio off Audio playback on Audio playback off Recording Human detection event Motion event Alarm event Record mode: Frame Record mode: Field...

  • Page 17: Main Menu

    USER INTERFACE 3.4 Main Menu Right-click anywhere on the screen to show the main menu as follows, and right-click again to exit. Main Menu Click to set the status display, image settings, QUICK START and date & time. SYSTEM Click to set the system configurations. EVENT INFORMATION Click to enter the event search menu.

  • Page 18: Frequently-Used Functions

    FREQUENTLY-USED FUNCTIONS 4. FREQUENTLY-USED FUNCTIONS 4.1 Key Lock / Unlock To lock or unlock NVR local operation, click (unlock) or (lock) on the DVR status bar to change the status to (lock) or (unlock). To unlock NVR local operation, you’ll be prompted to enter the user name and password to access. Note: The default user name and password are both “admin”, which is the highest user level.

  • Page 19: Ptz Control

    FREQUENTLY-USED FUNCTIONS Function User Level SUPERVISOR POWER NORMAL GUEST  Main menu  Quick Start  System  Event Information  Advanced Config.  Schedule Setting  Playback control    Fast Forward    Fast Rewind  ...

  • Page 20: Playback

    FREQUENTLY-USED FUNCTIONS How to go to a preset point: Step1: Step2: Select the numbering within which saves the camera view you want to see, and wait till you see (command sending) appearing and disappearing on the DVR status bar. 4.4 Playback Note: This function is NOT available for “GUEST”.

  • Page 21: Event Search

    FREQUENTLY-USED FUNCTIONS 4.4.2 Event Search Click to quickly search the recorded files by event types, or select FULL to show all the event logs. To quickly search the time you want, select “QUICK SEARCH”. 4.4.3 Audio Playback In the playback mode, click on the channel status bar to play or mute audio recording.

  • Page 22: Video Playback On Pc (.Dv5)

    FREQUENTLY-USED FUNCTIONS Note: It’s recommended to save the file to the default format for security reasons. Only specific video player supports the default format and not everyone can see the video footage.  When "AVI" is selected, the copied video will be converted to “avi”, and you can open it with any media player which supports the “avi”...
  • Page 23 FREQUENTLY-USED FUNCTIONS To exit this mode, right-click anywhere on the screen. Note: You need to exit the zoom mode first to use other DVR functions. alarm shop...

  • Page 24: Main Menu

    MAIN MENU 5. MAIN MENU 5.1 QUICK START 5.1.1 GENERAL QUICK START GENERAL CHANNEL TITLE TIME SETUP EVENT STATUS DAYLIGHT DATE DISPLAY BUTTON CONTROL DISPLAY MOUSE SENSITIVITY - ‫+ ׀ ׀ ׀ ׀ ׀ ׀ ׀ ׀ ׀‬ RECORD CONFIG SETUP EXIT CHANNEL TITLE...

  • Page 25: Time Setup

    MAIN MENU QUICK START MANUAL EVENT TIMER CHANNEL IMAGE SIZE I.P.S. QUALITY 960H SUPER BEST SUPER BEST HIGH FIELD SUPER BEST FRAME SUPER BEST SUPER BEST HIGH FIELD SUPER BEST NEXT AVAILABLE IPS: CIF 705 / FIELD 352.5 / FRAME 176.25 APPLY EXIT Note: The image size of 960H is available for selected models only.

  • Page 26: Daylight

    MAIN MENU 5.1.3 DAYLIGHT QUICK START GENERAL DAYLIGHT SAVING TIME SETUP DAYLIGHT START TIME 06:00 END TIME LAST 10:00 ADJUST 01:00 EXIT Depending on the time zone you’re in: DAYLIGHT SAVING Select to enable (ON) or disable (OFF) this function. START TIME / END TIME Set the start time and end time.

  • Page 27: Tools

    MAIN MENU 5.2.2 TOOLS SYSTEM  ACCOUNT LANGUAGE ENGLISH TOOLS UPGRADE SUBMIT SYSTEM INFO NETWORK UPGRADE SUBMIT BACKUP DATA BACKUP CONFIG SUBMIT BACKUP LOG RESTORE CONFIG SUBMIT EXIT LANGUAGE Select the language of the OSD. UPGRADE Save the upgrade files obtained from your installer or distributor in a compatible USB flash drive, and insert it into the USB port at the front panel.

  • Page 28: System Info

    MAIN MENU 5.2.3 SYSTEM INFO SYSTEM  ACCOUNT BAUD RATE 2400 TOOLS HOST ID  SYSTEM INFO R.E.T.R  BACKUP DATA AUTO KEY LOCK(S) NEVER  BACKUP LOG CLEAR HDD HDD-0 RESET DEFAULT SUBMIT REMOTE CONTROL ID SERIAL TYPE RS485 VIDEO FORMAT NTSC VERSION...

  • Page 29: Backup Data

    MAIN MENU 5.2.4 BACKUP DATA Note: It’s NOT allowed to remove the hard disk installed in the DVR and connect it directly to your PC to check recorded video clips. It might impair the files saved in the hard disk, causing the loss of those files even when the disk is replaced back to the DVR.
  • Page 30 MAIN MENU BACKUP Click “SUBMIT” to start backup. REQUIRE SIZE To know the size of the expected backup video before backup, click “SUBMIT” to start calculating. Video Playback on PC (.dv5) For video backup with the format “.dv5”, you can only use our own player to play. Note: It’s NOT allowed to remove the hard disk installed in the DVR and connect it directly to your PC to check recorded video clips.

  • Page 31: Backup Log

    MAIN MENU 5.2.5 BACKUP LOG This function is used to backup the event log. Insert a compatible USB flash drive to the USB port at the front panel. Note: Before using the USB flash drive, please use your PC to format the USB flash drive to FAT32 format first.

  • Page 32: Event Information

    MAIN MENU 5.3 EVENT INFORMATION 5.3.1 QUICK SEARCH EVENT INFORMATION  QUICK SEARCH HARD DISK ALL HDD EVENT SEARCH  CHANNEL 2 SELECTED HDD INFO EVENT LOG 2009 EXIT 15 : 20 SUBMIT Step1: Select the hard disk and channel including the video data you want to search. Step2: Select the year and month including the video data you want to search from the calendar, and the date with recorded data will be highlighted.

  • Page 33: Hdd Info

    MAIN MENU EVENT TYPE Select the event type you want to search, or select “ALL” to choose all events. Note: Some events are available only for selected models. SEARCH Click “START” to start search and play the video data immediately. 5.3.3 HDD INFO You can check the remaining capacity of the connected HDD in this device.

  • Page 34: Advanced Config

    MAIN MENU 5.4 ADVANCED CONFIG 5.4.1 CAMERA ADVANCED CONFIG CAMERA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11   DETECTION BRIGHTNESS ALERT CONTRAST NETWORK SATURATION DISPLAY RECORD COV. DEVICES DCCS CHANNEL TITLE NOTIFY EXIT BRIGHTNESS / CONTRAST / SATURATION / HUE Click the current value to manually adjust the brightness/contrast/saturation/hue of each channel here.

  • Page 35: Alert

    MAIN MENU SS (Spatial Sensitivity) “SS” is to set the sensitivity for detecting the size of one object (the number of the grids) on the screen. The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default setting is 03. Note: The default setting of SS is 03, which means once an object is detected more than 3 grids, the system will get triggered.

  • Page 36: Network

    MAIN MENU ALARM BUZZER Select to enable or disable the sound when any internal alarm is triggered (ON / OFF). HDD BUZZER Select to enable or disable the sound (ON / OFF) when the HDD remaining capacity reaches to the value set in “HDD NEARLY FULL (GB)”.
  • Page 37 MAIN MENU   Note: When PPPOE configuration is completed, please move to “DDNS” to configure the DDNS service. ADVANCED CONFIG CAMERA E-MAIL DDNS  DETECTION NETWORK TYPE PPPOE ALERT 192.168.001.010 NETWORK GATEWAY 192.168.001.254 DISPLAY NETMASK 255.255.255.000 RECORD PRIMARY DNS 168.095.001.001 DEVICES SECONDARY DNS...
  • Page 38 MAIN MENU When this function is enabled and an event occurs, a html file including a link will be sent to the specified FTP site. Click the link to access to this DVR and check the event recording. ADVANCED CONFIG CAMERA E-MAIL DDNS...

  • Page 39: Display

    MAIN MENU DDNS You need to additionally set DDNS when your network type is PPPOE or DHCP. We have our own DDNS server for quick DDNS service configuration. You don’t need to additionally apply a DDNS service.  To use our own DDNS server, select “eagleeyes” in “SYSTEM NAME”. ...

  • Page 40: Record

    MAIN MENU HDD DISPLAY MODE Select “REMAINING SIZE” to show the remaining HDD capacity for recording in GB, “REMAINING TIME” to show the remaining recording time, or “DAYS KEPT” to show how many recording data are saved in day. DISPLAY OUTPUT Select the display resolution you want.

  • Page 41: Devices

    MAIN MENU RECORD CONFIG Click “SETUP” to enter the setting page individually for manual record, event record and timer record. For details, please refer to “5.1.1 GENERAL” at page 19. 5.4.7 DEVICES ADVANCED CONFIG CAMERA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11  ...

  • Page 42: Dccs

    MAIN MENU 5.4.8 DCCS Note: This function is for selected models only. Note: DCCS is supported only for CH1. Make sure you’ve connected a DCCS-enabled camera to the video channel of CH1, and you see “ ” in the channel status bar. ADVANCED CONFIG CAMERA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 ...

  • Page 43: Ivs

    MAIN MENU 5.4.9 IVS Note: This function is for selected models only. Note: Before using the IVS function, make sure the event record function is enabled on your DVR. IVS, Intelligent Video Surveillance, is the advanced application for motion detection, but more precise and smarter. It can be applied to different situations with one of the following three modes: FLOW COUNTING, VIRTUAL FENCE, and ONE WAY.
  • Page 44 MAIN MENU SCENE CHANGE Select “ON” to trigger a motion event when the camera is sensed to be moved and the camera scene is changed. At the same time, the icon “ ” will be also shown on the screen in addition to the motion icon “...
  • Page 45 MAIN MENU   Step1: Go to “VIRTUAL FENCE AREA” to draw a detection line with your mouse, and decide the detection direction by selecting “REVERSE”. Step2: Finish the IVS setting and return to the live view. When anyone walks across the detection line, the system will determine his movement is in or out, and: An event happens for anyone walking across the detection line, and “...
  • Page 46 MAIN MENU IVS STATISTICS ”  “ Press “LIST” on the DVR front panel, or click “ ” to enter the event search menu. Then, select “STATISTIC” LIST QUICK SEARCH CHANNEL 3 SELECTED  RECORD  MOTION   ALARM ...

  • Page 47: Notify

    MAIN MENU Chart View IVS STATISTIC LIST CHART  HOUR  2010/MAY/17 EXIT 5.4.10 NOTIFY You can configure this DVR to send notifications for certain events to mobile devices with our mobile app, EagleEyes, installed, or to the specified E-mail address(es). PUSH VIDEO alarm shop Note: This function is for selected models only.
  • Page 48 MAIN MENU Note: For details about DVR operations from your mobile device, please visit http://www.eagleeyescctv.com. ALARM TYPE Select the external alarm type to “ALARM NO.” or “ALARM N.C.” For CH01, there’s one more option of “INTERNAL ALARM”. This option should be selected only when the camera connected to CH1 is a human detection camera.
  • Page 49 MAIN MENU MESSAGE MAIL Note: For E-mail notifications, make sure you have configured an E-mail account in “NETWORK”  “E-MAIL” to send the notifications. Enable this function in “ACTION”, select the event type(s) you want to send notifications in “EVENT”, and add the E-mail address(es) to which you want to send notifications in “RECEIVER”.

  • Page 50: Schedule Setting

    MAIN MENU How to check video recording Step1: Open the html file attached. Note: Please accept to install ActiveX control on your computer. Step2: Enter the user name and password to log into this NVR, and select the channel you want. Step3: Click “Open”...

  • Page 51: Detection

    MAIN MENU 5.5.2 DETECTION Select “ON” to enable detection timer, and select the day and time for this function. SCHEDULE SETTING RECORD DETECTION TIMER DETECTION ALARM EXIT 0 ~ 24 hours. Each time bar is 30 minutes. X axis Monday ~ Sunday. Y axis 5.5.3 ALARM Select “ON”...

  • Page 52: Remote Operation

    REMOTE OPERATION 6. REMOTE OPERATION You can also control the DVR remotely via the supplied licensed software “Video Viewer”, web browser, and your smart phones. Note: For more details about mobile surveillance via your smart phones, please visit our official website www.eagleeyescctv.com, or download the instructions of EagleEyes installation and configuration from www.surveillance-download.com/user/eagleeyes_quick.pdf.

  • Page 53: Control Panel Overview

    REMOTE OPERATION   When the network configuration of your DVR is completed, you can access your DVR remotely via Internet. a) Double-click “ ” on your PC desktop to enter the control panel. By defaults, the “Address Book” panel will be displayed on the right side of the control panel.
  • Page 54 REMOTE OPERATION Full Function Version alarm shop Main Button Overview Button Function Description Simplified Full Function Click to show the predefined IP address(es). You can add, remove or Address Book search the IP address to log in the DVR remotely. Remote Click to go into the detailed DVR setting.

  • Page 55: General Operation

    REMOTE OPERATION 6.1.3. General Operation Record To record remotely at the same time for any event or alarm at the DVR side, click “ ” or “ ” → “ ” to go to the “Record Setting” page. In the “Record Setting” page, you can set the following items: ...

  • Page 56: Network Backup

    REMOTE OPERATION To immediately play a recording, select a log from the list, and click “Play”, or double-click the selected log. Network Backup Click “ ” → “ ”, or click “ ” to go into the “Backup” page as follows, and you can select a specific time range or event to make a video backup remotely.

  • Page 57: E-Map

    REMOTE OPERATION Function Description Simultaneous Playback To view the backup images simultaneously when the download process is in progress, select the checkbox “Simultaneous Playback”. You will see the backup images while the images are being downloaded to the PC or notebook. To simply backup images without previewing, deselect the checkbox “Simultaneous Playback”.
  • Page 58 REMOTE OPERATION Note: Before using this function, make sure Video Viewer is connected to all the devices (up to 16) you want to monitor. E-Map is ONLY available when the control panel is switch to the full function version. How to Add an E-Map Group STEP1: In the simplified version, click “...
  • Page 59 REMOTE OPERATION alarm shop STEP3: When the E-Map group is created, you will see the tree on the top-left panel, showing all the devices you’ve added to this group.
  • Page 60 REMOTE OPERATION Icon Description The connected device is camera. When it’s selected, it will become red. The connected device is DVR. When it’s selected, it will become red. For any motion or alarm event, it will appear on the screen to catch your attention. To know what’s happening quickly, double-click the device icon on the E-Map to show the live view.
  • Page 61 REMOTE OPERATION  For Single E-Map Group Right-click on the group name to show the shortcut menu list, and select “Edit E-MAP” or “Remove E-MAP” as needed.  For Building E-Map Group Right-click on the group name to show the shortcut menu list, and select “Edit Building E-MAP”...
  • Page 62 REMOTE OPERATION To edit or remove a certain level of the building E-Map group, right click on the level name, and select “Edit E-MAP” or “Remove E-MAP” as needed. alarm shop...

  • Page 63: Web Browser

    REMOTE OPERATION 6.2 Web Browser You can view the images or operate your DVR with a web browser, for example, Microsoft Internet Explorer. Note: The supported PC operation systems are Windows 7, Vista & XP. Note: To use Mozilla Firefox or Google Chrome for remote access, please go to Apple’s official website (http://www.apple.com) to download and install QuickTime first.
  • Page 64 REMOTE OPERATION Icon Description means mute. To disable the mute status, click this icon again and select the audio channel you want. Channel Control Channel Selection Click one of the number to switch to the channel you want to see in full screen. (1~16) Click to go to the previous / next channel, or change setting.

  • Page 65: Event Playback & Download

    REMOTE OPERATION 6.2.1 Event Playback & Download alarm shop Note: Certain icons are for selected models only. Close all / Click to close the current playback video clip (in the red frame), or to close all playback Close video clips. Previous / Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00 ~ 15:00, Next Hour...

  • Page 66: Ivs Statistics

    REMOTE OPERATION 6.2.2 IVS Statistics Note: This function is for selected models only. alarm shop...

  • Page 67: Appendix 1 Specifications

    APPENDIX 1 SPECIFICATIONS APPENDIX 1 SPECIFICATIONS Model 1 Model 2 Model 3 Model 4 Model 5  Video Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Input 16 channels (Composite video signal 1 Vp-p 75Ω BNC) Video Loop Output 16 channels (Composite video signal 1 Vp-p 75Ω...
  • Page 68 Android versions)  Others DCCS Support YES (1 channel) IVA Support YES (4 channels) AVTECH Free DDNS service Multiplex Operation Live display / record / playback / backup / network operations System Recovery System auto recovery after power failure Optional Peripherals Keyboard Controller * The specifications are subject to change without notice.

  • Page 69: Appendix 2 Pin Configuration

    APPENDIX 2 PIN CONFIGURATION APPENDIX 2 PIN CONFIGURATION Siren: When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact: When the magnetic contact is opened, the alarm will be triggered and the recording is on.

  • Page 70: Appendix 3 Push Video Configuration

    APPENDIX 3 PUSH VIDEO CONFIGURATION APPENDIX 3 PUSH VIDEO CONFIGURATION Note: Available only when your DVR supports Push Video. A3.1 PIN Connection This DVR supports sending instant event notifications to your mobile devices, such as iPhone, iPad and Android mobile devices, for an alarm event (Push Video). However, only certain alarm-in pins support this function. There are two methods to connect alarm sensors for Push Video to take efforts: via PUSH VIDEO alarm-in terminal and via external I/O port.
  • Page 71 APPENDIX 3 PUSH VIDEO CONFIGURATION alarm shop...

  • Page 72: A3.2 Configuration

    APPENDIX 3 PUSH VIDEO CONFIGURATION A3.2 Configuration Before configuring Push Video, make sure: 1. The DVR system is set up as described in “2. CONNECTION AND SETUP” at page 4. 2. The DVR is connected to Internet. 3. You’ve installed the app, EagleEyes, on your iPhone, iPad or Android mobile devices. For details, please refer to “APPENDIX 4 MOBILE SURVEILLANCE VIA EAGLEEYES”...

  • Page 73: Appendix 4 Mobile Surveillance Via Eagleeyes

    APPENDIX 4 MOBILE SURVEILLANCE VIA EAGLEEYES APPENDIX 4 MOBILE SURVEILLANCE VIA EAGLEEYES EagleEyes is a mobile phone program used with our surveillance system for remote surveillance. It has several advantages:  It’s free (Except EagleEyes Plus for iPhone, EagleEyes Plus+ for Android, and EagleEyesHD Plus for iPad). ...
  • Page 74 APPENDIX 4 MOBILE SURVEILLANCE VIA EAGLEEYES Follow the onscreen instructions to start downloading. When the download is completed, EagleEyes will be installed automatically to the location where all applications are saved in your phone by default, or where you specify. Note: For more details about configuring this program, scroll down the download page to see related instructions.

  • Page 75: Appendix 5 Set Push Video

    APPENDIX 5 SET PUSH VIDEO APPENDIX 5 SET PUSH VIDEO Note: Available only when your DVR supports Push Video. This DVR series supports instant event notifications to your iPhone / iPad / Android mobile device with our self-developed program, “EagleEyes”, installed. When a man is detected by a human detection camera or the external alarm device, the DVR will immediately receive alarm signals and send to your iPhone / iPad / Android mobile device.

  • Page 76: A5.2.2 From Android Mobile Device

    APPENDIX 5 SET PUSH VIDEO A5.2.2 From Android Mobile Device In the address book, switch “Guard” from “OFF” to “ON”. alarm shop...

  • Page 77: Appendix 6 Compatible Usb Flash Drive List

    APPENDIX 6 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 6 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the DVR, you will see on the screen.

  • Page 78: Appendix 7 Compatible Sata Hdd List

    APPENDIX 7 COMPATIBLE SATA HDD LIST APPENDIX 7 COMPATIBLE SATA HDD LIST Please upgrade the firmware of the device to the latest version to ensure the accuracy of the following table. Note: It’s not recommended to use a green hard disk with this device to make sure it works properly. MANUFACTURER MODEL CAPACITY...

  • Page 79: Appendix 8 Main Menu Structure

    APPENDIX 8 MAIN MENU STRUCTURE APPENDIX 8 MAIN MENU STRUCTURE QUICK START GENERAL CHANNEL TITLE EVENT STATUS DATE DISPLAY BUTTON CONTROL DISPLAY MOUSE SENSITIVITY RECORD CONFIG TIME SETUP DATE TIME NTP SERVER FORMAT SYNC PERIOD DAYLIGHT SYSTEM ACCOUNT TOOLS LANGUAGE UPGRADE NETWORK UPGRADE BACKUP CONFIG...
  • Page 80 APPENDIX 8 MAIN MENU STRUCTURE DISPLAY FULL SCREEN DURATION QUAD SCREEN DURATION CALL SCREEN DURATION* DISPLAY COVERT HDD DISPLAY MODE DISPLAY OUTPUT RECORD MANUAL RECORD EVENT RECORD TIMER RECORD PRE-ALARM RECORD OVERWRITE KEEP DATA LIMIT (DAYS) RECORD CONFIG DEVICES DCCS* IVS* CAMERA IVS MODE...

  • Page 81: Appendix 9 Dvr Battery Replacement

    APPENDIX 9 DVR BATTERY REPLACEMENT APPENDIX 9 DVR BATTERY REPLACEMENT DVR time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the DVR time from resetting, a non-chargeable lithium battery, CR2032, is installed in the DVR.

  • Page 82: Appendix 10 Dvd Writer Installation

    APPENDIX 10 DVD WRITER INSTALLATION APPENDIX 10 DVD WRITER INSTALLATION Model 1 allows users to install a DVD writer by themselves. The supported DVD writer models are as follows. Please use only the suggested DVD writer models to ensure the compatibility.
