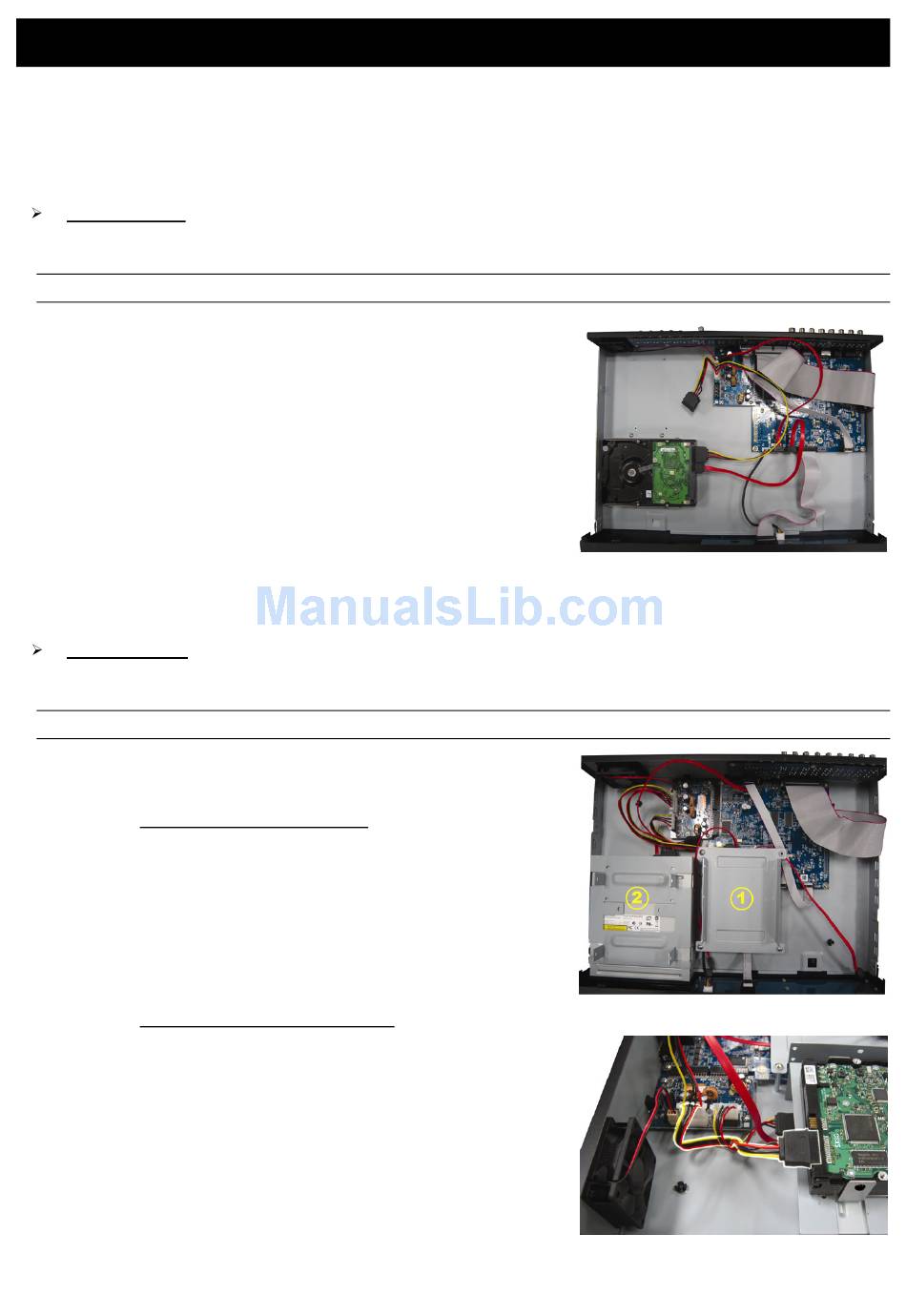

3. CONNECTION AND SETUP

3.1. HDD Installation

The HDD must be installed before the DVR is turned on. The steps below are for your reference only. The actual
installation process may vary depending on different models and situations.
For Model 1 ~ 4
Step 1: Loose the screws on the upper cover and open the upper cover of the DVR.
Note: The DVR cover is made of metal. Please be careful with its edge when you remove the cover.
Step 2: Find the HDD brackets supplied within the sales package,
two L-shape brackets for each HDD.
Step 3: Get a compatible HDD, and align the screw holes of the
bracket with the HDD's screw holes. Make sure the PCB
side of the HDD is facing up. Then, fasten the HDD to the
brackets.
Step 4: Connect the power connector and data bus connector to
the HDD.
Step 5: Find the screw holes on the DVR base, and fasten the
brackets to the DVR base.
Step 6: Close the upper cover of the DVR, and fasten all the screws you loosened in Step 1.
For Model 6 & 8
Step 1: Loose the screws on the upper cover and open the upper cover of the DVR.
Note: The DVR cover is made of metal. Please be careful with its edge when you remove the cover.
Step 2: There are two HDD brackets for this DVR as indicated on
the right picture.
2-1 To install on the first bracket
Remove the bracket, and align the screw holes of the
bracket with the HDD's screw holes. Make sure the PCB
side of the HDD is facing up.
Fasten the HDD to the bracket, and connect the power
connector and data bus connector to the HDD. Then,
replace the bracket to DVR.
2-2 To install on the second bracket
Connect the power connector and data bus connector to
the HDD.
When connecting the power cable, make sure the cable is
passed through the power cable of DVD writer. This is to
prevent the HDD power cable from interfering with the fan
spinning.
Align the screw holes of the bracket with the HDD's screw
holes. Make sure the PCB side of the HDD is facing up.
Then, fasten the HDD to the bracket.
