10.1 Diagram of single-phase models UE001 to UE009

(**) Important: for the TAM confi guration and connection see par. 11.1
"UE BASIC" +0300042EE - rel. 1.0 - 02.12.2009

10. WIRING DIAGRAMS

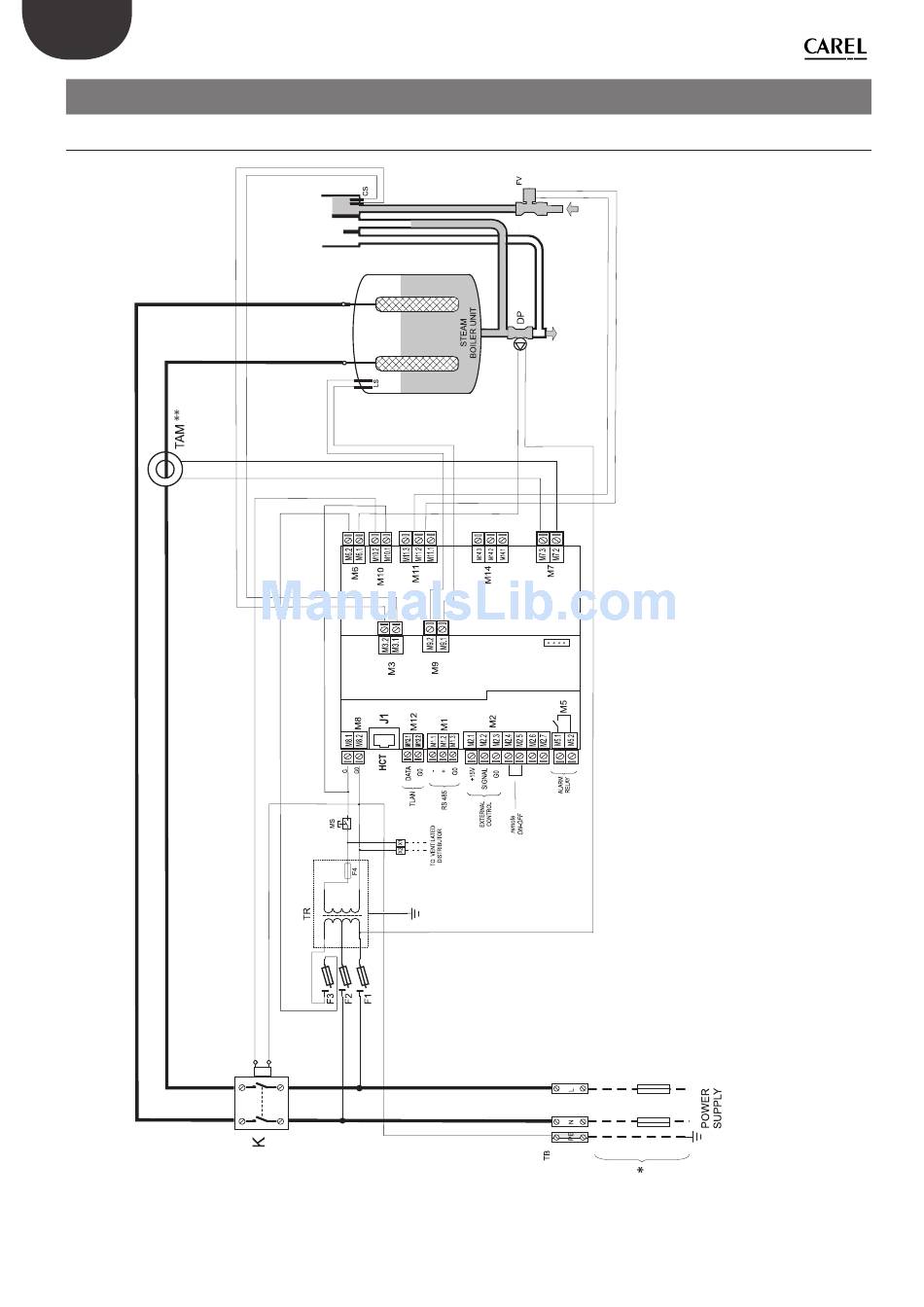

Fig. 10.a
28
key:
TB terminal block
K contactor
F1-F2 primary fuses
F3 fuse protection drain pump
F4 secondary fuses
TR transformer
MS manual switch
FV fi ll valve
DP drain pump
LS high level electrodes
CS conductimeter
TAM external TAM
