4 FIRMWARE

4.1 Updating firmware using USB cable

FM5300 functionality is always improving, new firmware versions are developed. Current
module firmware version can be retrieved from configurator. See configuration description for
details.
Contact sales manager to get the latest firmware.
Updater is needed to update the firmware. It can be downloaded from:
http://avl1.teltonika.lt/downloads/FM53/
Firmware must to be copied to "Firmware updater" folder.
Connect FM5300 to PC with USB cable. Launch "Firmware Updater", select COM port, click
connect and update. Update process may take up to several minutes.

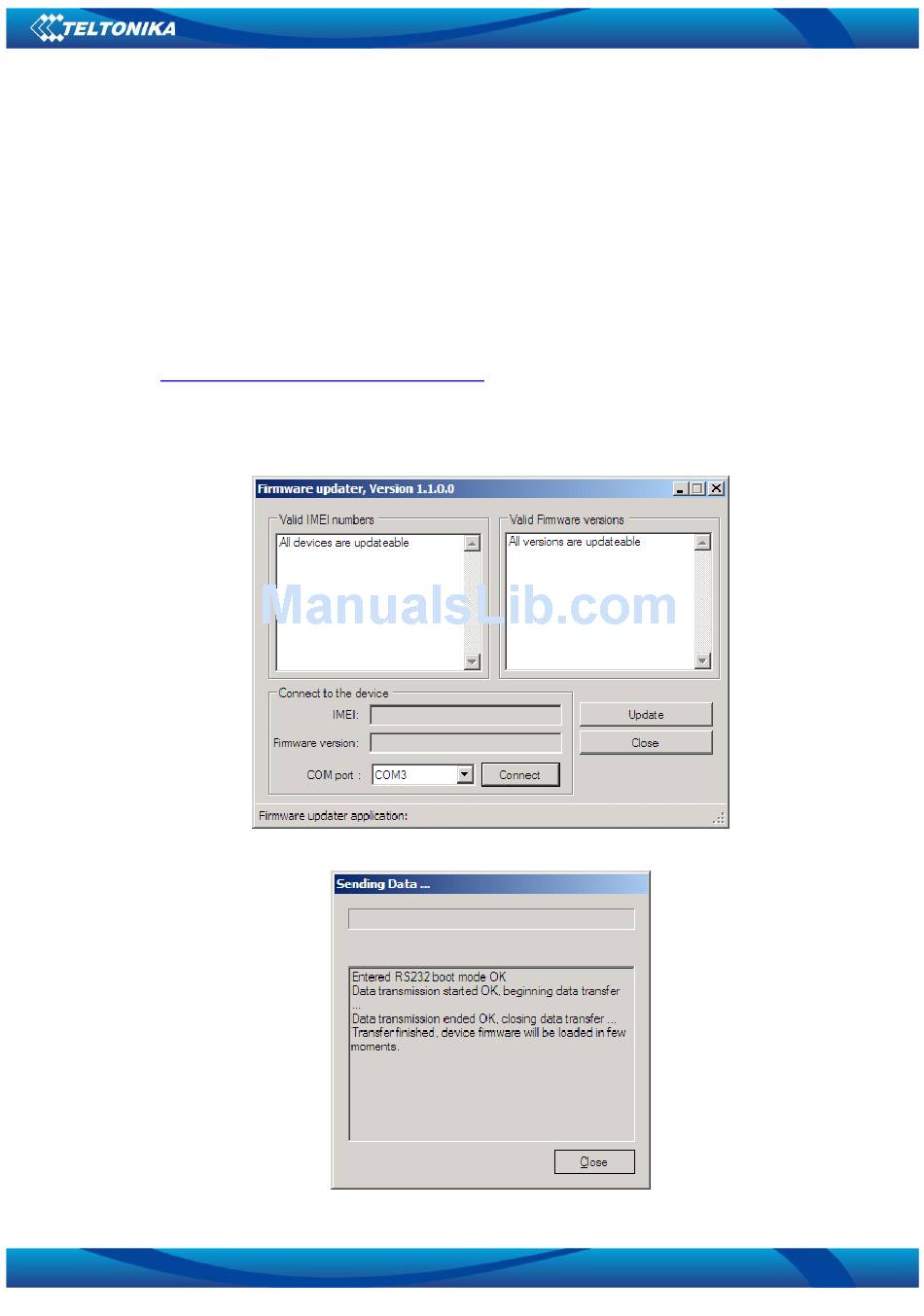

Figure 7 FM updater screen
Figure 8 FM firmware updating finished
18
