FMM00A
Advanced OBDII tracker
Quick Manual v1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMM00A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teltonika FMM00A

  • Page 1 FMM00A Advanced OBDII tracker Quick Manual v1.2...
  • Page 2: Table Of Contents

    How to install USB drivers (Windows) ................................6 Configuration........................................7 Quick SMS configuration ....................................9 Mounting recommendations..................................11 Basic characteristics ......................................12 LED indications ......................................... 12 Safety information ......................................15 Certification and Approvals .................................... 16 Warranty ........................................... 17 Warranty disclaimer ....................................... 17 Quick Manual v1.2 // FMM00A Telematics...

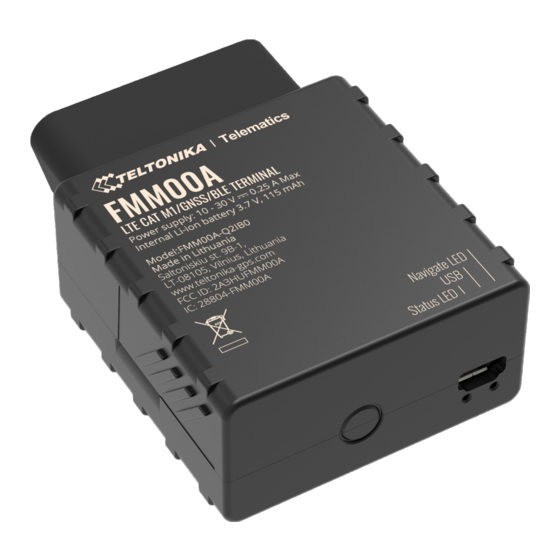

  • Page 3: Know Your Device

    KNOW YOUR DEVICE TOP VIEW TOP VIEW (WITHOUT COVER) BATTERY MICRO-USB SOCKET OBDII CONNECTOR NAVIGATE STATUS MICRO-SIM SLOT Quick Manual v1.2 // FMM00A Telematics...
  • Page 4: Pinout

    GND (-) Ground GND (-) Ground CAN_H CAN high K-Line PWM_BUS- CAN_L CAN low L-Line PIN2 PIN4 PIN5 PIN6 PIN7 VCC (10 - 30)V Power supply (+10-30 FMM00A OBDII socket pinout DC(+) V DC) Quick Manual v1.2 // FMM00A Telematics...
  • Page 5: Set Up Your Device

    Teltonika Configurator Make sure that Micro- SIM card cut-off corner is pointing forward to slot.  wiki.teltonika-gps.com/view/ FMM00A_Security_info  wiki.teltonika.lt/view/Teltonika_ Configurator Quick Manual v1.2 // FMM00A Telematics...
  • Page 6: Pc Connection (Windows)

    PC CONNECTION (WINDOWS) Power-up FMM00A with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED indications ”. Connect device to computer using Micro-USB cable or Bluetooth connection: • Using Micro-USB cable •...
  • Page 7: Configuration

    CONFIGURATION At first FMM00A device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
  • Page 8 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMM00A configuration using Configurator can be found in our Wiki  wiki.teltonika-gps.com/view/FMM00A_Status_info  wiki.teltonika-gps.com/view/FMM00A_Status_info#GNSS_Info  wiki.teltonika-gps.com/view/FMM00A_Status_info#GSM_Info  wiki.teltonika-gps.com/view/FMM00A_Status_info#I.2FO_Info  wiki.teltonika-gps.com/view/FMM00A_Status_info#Maintenance...
  • Page 9: Quick Sms Configuration

    2003 – APN password (if there are no APN password, empty field should be left) SERVER SETTINGS: 2004 – Domain 2005 – Port 2006 – Data sending protocol (0 – TCP, 1 – UDP) Quick Manual v1.2 // FMM00A Telematics...
  • Page 10 If device has made a stationary and record ignition is off After successful SMS configuration, FMM00A device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters  wiki.teltonika-gps.com/view/Teltonika_Configurator...
  • Page 11: Mounting Recommendations

    MOUNTING RECOMMENDATIONS CONNECTING THE DEVICE TO THE VEHICLE: Find OBDII connector in your vehicle. Most common OBDII connector locations. Quick Manual v1.2 // FMM00A Telematics...
  • Page 12: Basic Characteristics

    Blinking every two Sleep mode Technology LTE CAT M1 seconds LTE-FDD (CAT M1): Blinking fast for a Modem activity short time 4G bands B1/B2/B3/B4/B5/B8/B12/B13/B18/ Device is not working or Device is in B19/B20/B25/B26/B27/B28/B66/B85 boot mode Quick Manual v1.2 // FMM00A Telematics...
  • Page 13 128MB internal flash memory At 12V < 0.25A Max. (with full Load / Peak Physical Specification Dimensions 67,2 x 49,6 x 25 mm (L x W x H) Bluetooth Weight 63 g Specification 4.0 + LE  https://teltonika.lt/product/bluetooth-sensor/ Quick Manual v1.2 // FMM00A Telematics...
  • Page 14 Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Scenarios Idling detection, Unplug detection, wiki.teltonika-gps.com/view/FMM00A_Sleep_modes#Deep_Sleep_mode 3  Towing detection, Crash detection, Auto Geofence, Manual Geofence, wiki.teltonika-gps.com/view/FOTA_WEB 4  Trip wiki.teltonika-gps.com/view/FOTA 5  wiki.teltonika-gps.com/view/Teltonika_Configurator 6  wiki.teltonika-gps.com/view/FMM00A_Features_settings wiki.teltonika-gps.com/view/FMBT_Mobile_application 2  7  Quick Manual v1.2 // FMM00A Telematics...
  • Page 15: Safety Information

    Teltonika is not responsible for any harm caused by wrong cables used for connection between PC and FMM00A WARNING! Do not use FMM00A device if it distracts driver or causes inconvenience due to OBDII placement. Device must not interfere with driver.
  • Page 16: Certification And Approvals

    Electronics and Electrical Equipment (EEE) within the EU, which bans from use All newest certificates may be found in our Wiki 10 different hazardous materials (to date). wiki.teltonika-gps.com/view/FMM00A_Certification_%26_Approvals wiki.teltonika-gps.com/view/FMM00A_RoHS 1  Quick Manual v1.2 // FMM00A Telematics...
  • Page 17: Warranty

    WARRANTY TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. Contact us teltonika-gps.com/about-us/contacts All batteries carry a reduced 6 month warranty period.
