User Manual
FM5500 Sample User Guide for Recommended
Configuration
1 About the document
This document contains information required for fast testing of the FM5500 device
1.1 Getting started with FM5500 device
This paragraph contains the information needed to successfully launch and use the FM5500
device. The steps below should be followed carefully to completely test the FM5500.
1.2

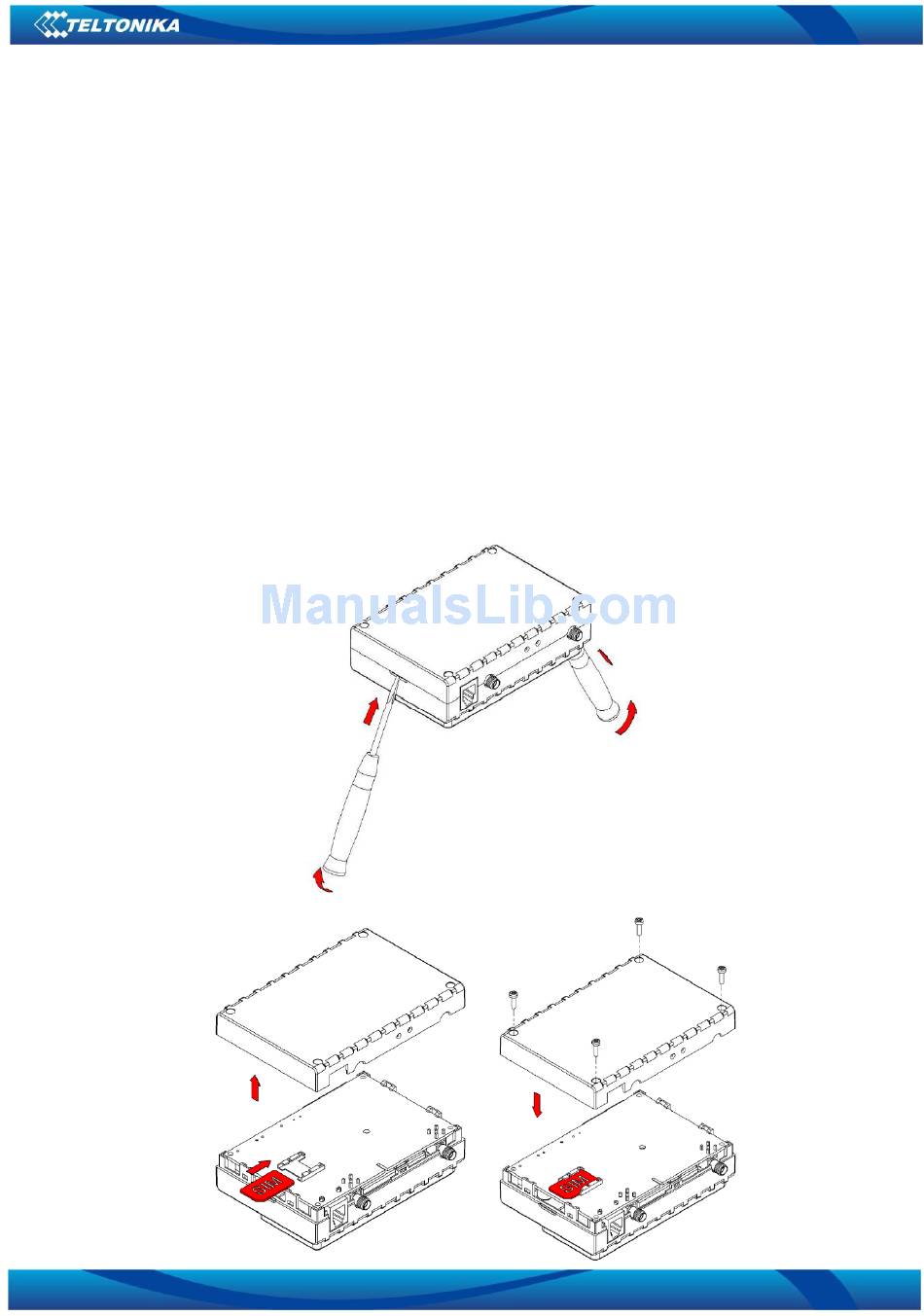

SIM card insert scheme
1
Advertisement
Table of Contents
Related Manuals for Teltonika FM5500
Summary of Contents for Teltonika FM5500
-
Page 1: About The Document
This document contains information required for fast testing of the FM5500 device 1.1 Getting started with FM5500 device This paragraph contains the information needed to successfully launch and use the FM5500 device. The steps below should be followed carefully to completely test the FM5500. - Page 2 (-)GND (+)VCC (10…30) V DC Pic. 2. Standard FM5500 2x10 socket pinout The external 10...30 V DC (12 W Max) power supply must be used to power up the device. Connect power supply to 1 pin and 11 pin as shown above.
- Page 3 • MS .NET Framework V3.5 or later (http://www.microsoft.com or http://avl1.teltonika.lt/downloads/tavl/Framework/dotnetfx35setupSP1.zip). Drivers Please download Virtual COM Port drivers from Teltonika website: http://avl1.teltonika.lt/downloads/FM11/vcpdriver_v1.3.1_setup.zip Installing drivers Extract and run VCPDriver_V1.3.1_Setup.exe. This driver is used to detect FM5500 device connected to the computer. Click 'Next' in driver installation window (pictures 5-7):...
- Page 4 Pic. 5. Driver installation window Setup will continue installing drivers and will display a window about successful process in the end. Click 'Finish' to complete setup: Pic. 6. Driver installation window You have now installed drivers for FM5500 device successfully.
- Page 5 Pic. 7. Configuration toolbar view 1.6.1 APN configuration In order to make FM5500 device to be able to connect to local GPRS network (and send AVL data) the following APN data (provided by local GSM services provider) must be entered into FM5500 configuration: ...
- Page 6 Min.Distance = 100 meters, so the additional AVL record will be generated after driving more than 100 meters in the straight line. If the object with FM5500 device is not moving, the AVL data records are generated periodically every 300 seconds (Min.period = 300 s).
- Page 7 If power voltage value falls less than 11 V; Ignition is turned ON/OFF (DIN1=1 or DIN1=0). 1.6.5 What is the purpose of testing FM5500 in this scenario? The main propose of this testing scenario is for the user to see the highly detailed track (as in the sample screenshot below) of his driven track in the city.
