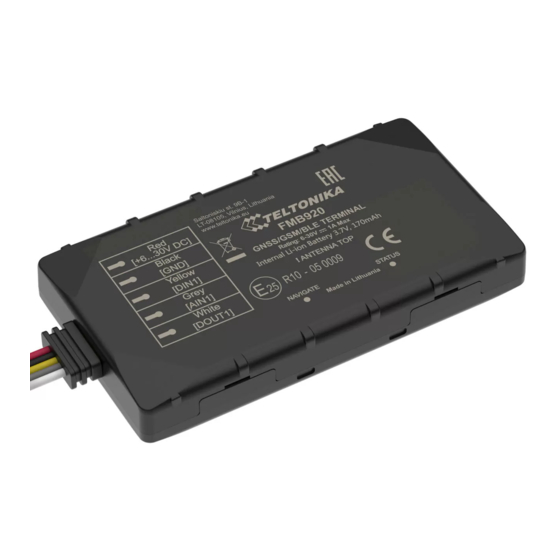

Small and smart tracker with bluetooth and internal backup battery
Hide thumbs Also See for FMB920:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB920_First_Start
FMB920 First Start
Main Page
>
Basic Trackers
Small and smart tracker with Bluetooth and internal backup battery
Contents
1 How to insert Micro-SIM card
How to insert Micro-SIM card
1.
Gently remove FMB920 cover using plastic pry tool from both sides.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect the battery as shown on device. Position the battery in place where it does not
obstruct other components.
4.
Attach device cover back. Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off -
external voltage and internal battery disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
>
FMB920
> FMB920 First Start
Security info
how to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMB920 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMB920

Summary of Contents for Teltonika FMB920

  • Page 1: Table Of Contents

    5 Installation photos 6 Safety information 6.1 Precautions How to insert Micro-SIM card Gently remove FMB920 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.

  • Page 2: Pinout

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMB920 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator software.

  • Page 3: Quick Sms Configuration

    Maintenance and etc. FMB920 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...

  • Page 4: Quick Start Guide

    If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMB920 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 5: Mounting Recommendations

    These points in the car are the battery terminals. Therefore, we recommend connecting the power of FMB920 (GND and POWER wires) directly to the battery terminals. Another valid option is to connect the wires to the main POWER cable inside the fuse box (if there is none, then to the power supply where the fuses of vehicle’s computer are), GND wire must be connected in a special point, designed to...

  • Page 6: Installation Photos

    Installation photos FMB920 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker view to the open sky (metal free). FMB920 area with sticker is shown in figure below: FMB920 can be mounted under the plastic panel behind the front window, with the sticker / engraving direction to a window (sky).
