Step 1: Loosen The Screws On The Th-Module; Step 2: Connect The Security Detector Wires; Step 3: Remove The Backing From The Sensors; Step 4: Repeat For Additional Detectors - Eaton Powerware User Manual

SECURITY DETECTOR
2. Connect the security detector wires to the TH-Module alarm 1 or
3. Remove the backing from the security detector sensors and stick
4. If you are installing additional security detectors, repeat Steps 1
5. Connect the RJ-45 network cable to the TH-Module port labeled
4 EATON Powerware
alarm 2 connectors, and then tighten the screws on the TH-Module
(see Figure 2).

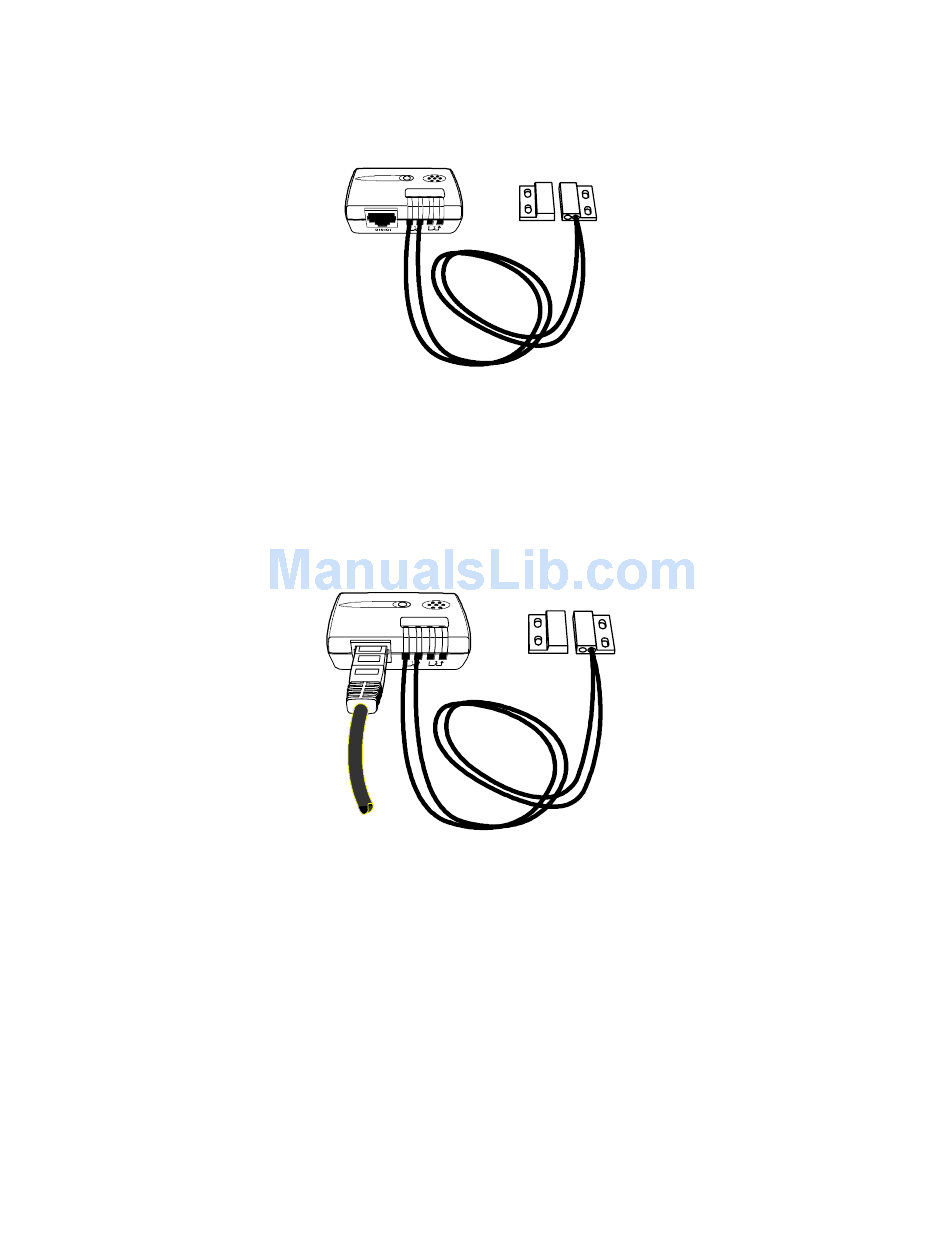

Figure 2. TH-Module with Security Detector
the sensors to the door and doorframe or the window and
windowframe.
through 3.
"010101" (see Figure 3).
Figure 3. Connecting the RJ-45 Network Cable
S
® Security Detector User's Guide 164201679 Rev 1
