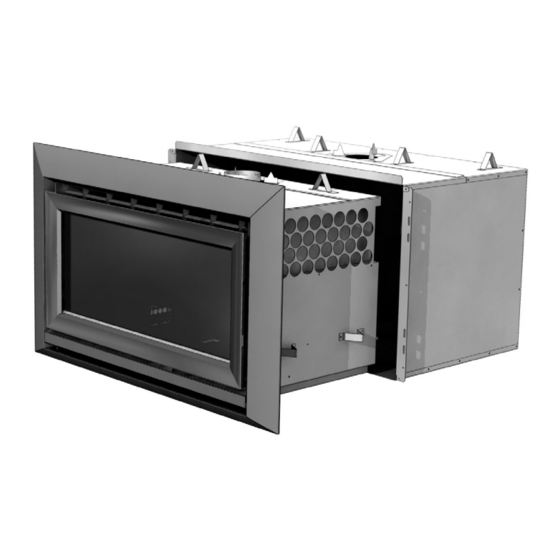

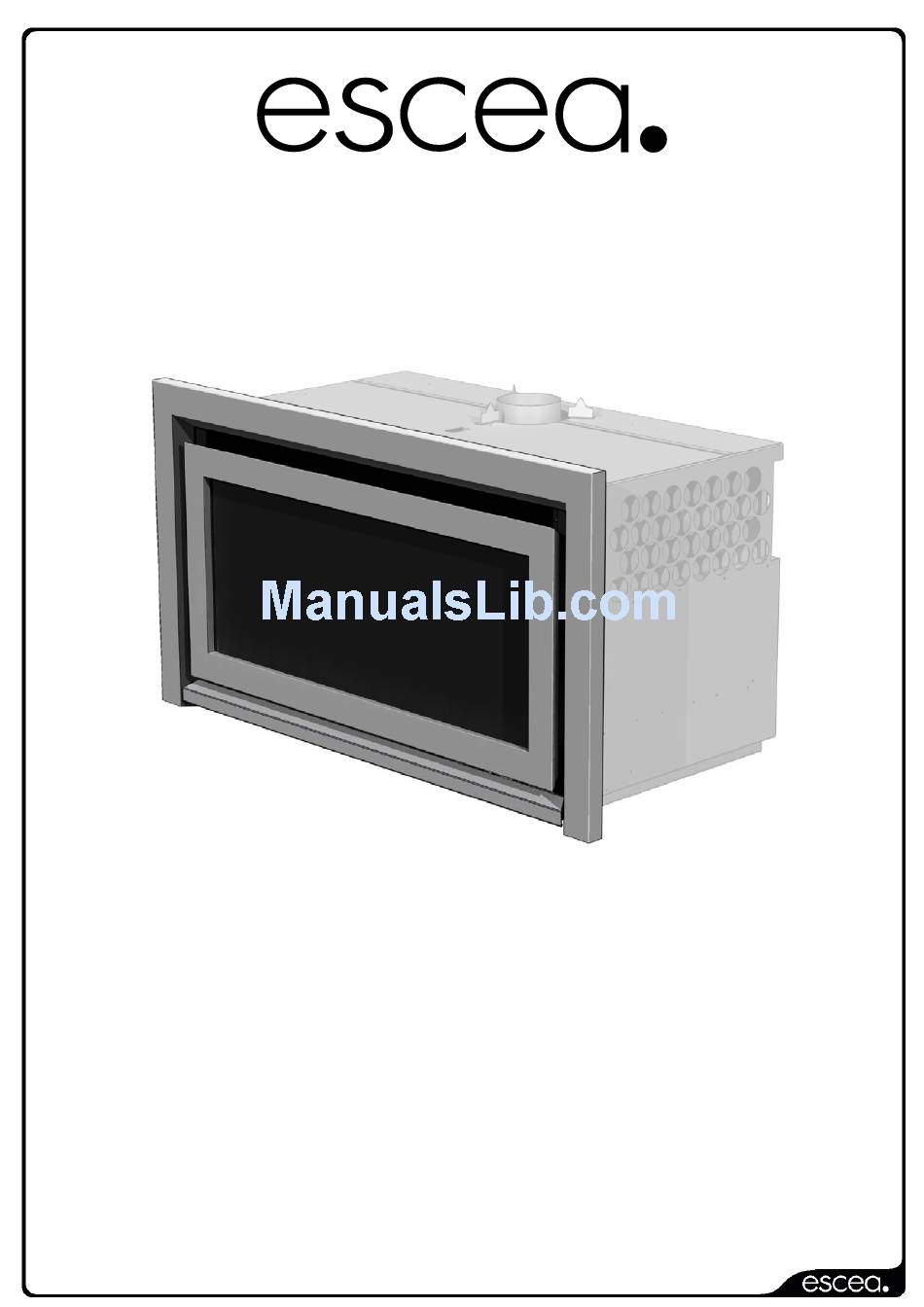

Inset - IB850, IB1100
Fascia Installation Manual
NEW ZEALAND EDITION
Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Must be installed by a qualified person
• This Manual replaces section 21.0 of the IB850/IB1100 Installation Manual
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.co.nz
For contact details of your local escea distributor or dealer please visit www.escea.co.nz
630096_5 Spazio Inset Installation Manual NZ.doc
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Escea IB850
Summary of Contents for Escea IB850
- Page 1 Young children should be supervised to ensure that they do not play with the appliance. Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.co.nz For contact details of your local escea distributor or dealer please visit www.escea.co.nz...
- Page 2 The wall board that lines the outside of this opening can be normal dry wall (Gib Board) and does not need to be non-combustible providing that it does not come any closer to the fire than the dimensions below show. Internal Cavity & Product Dimensions: (mm) IB850 IB1100 1265 565 1295...
- Page 3 If a cavity is to be created in a corner the picture to the left gives the approximate minimum sized interior wall and resultant flue position. IB1100 IB850 1235 1075 1265 Fire Installation: Please refer to the separate install instructions that come with the fire.
- Page 4 Replace the glass Note: If the glass gasket requires a replacement, call your nearest Escea agent who will ensure the part is replaced with the correct type. In the event that the glass is broken by impact, purchase the replacement from an authorised Escea agent only.
- Page 5 The heater may have to be adjusted in or out of the cavity to ensure fascia fits correctly. IB850 ONLY (see next page for IB1100): Step 5: Hang the top edge of the inner fascia...
- Page 6 IB1100 ONLY: Step 5: Attach the inner fascia brackets to the Inner Fascia as per the instruction page supplied with the fascia. Hang the top edge of the Inner Fascia (smaller one) from the lip that extends at 45 degrees from the top of the firebox.
