Summary of Contents for Escea IB1100

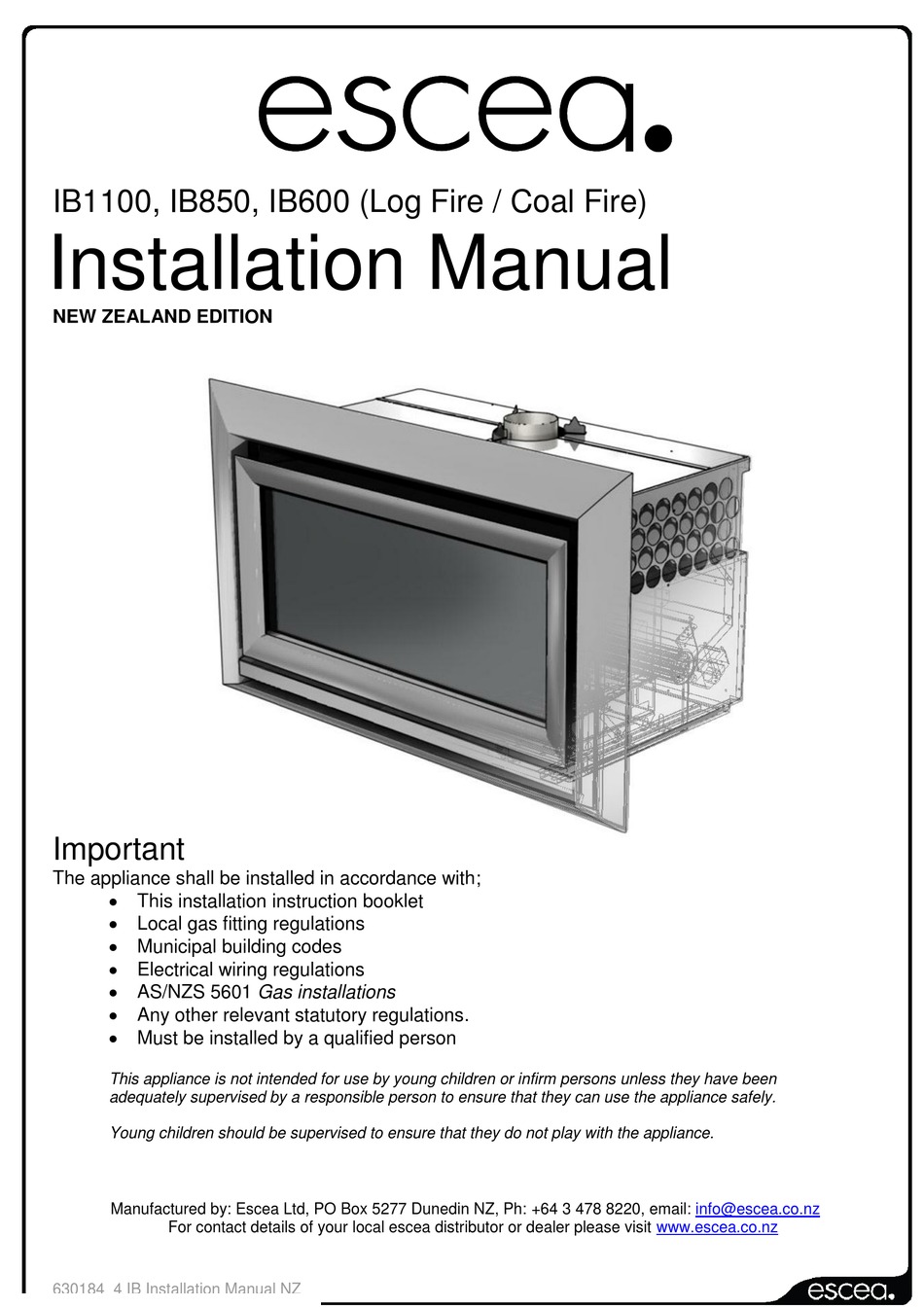

Page 1 Young children should be supervised to ensure that they do not play with the appliance. Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 478 8220, email: info@escea.co.nz For contact details of your local escea distributor or dealer please visit www.escea.co.nz...
Page 2 (eg. AS/NZS5601). Any shortcomings in the appliance and flue installation will be the responsibility of the installer, and Escea will not be accountable for any such failings or their consequences.
Page 3: Table Of Contents
Contents: Section:  Product Description  Creating the Cavity  Ventilation  Cavity Base  Hearth  Raised Installations Up a Wall  Wall Linings  Mantle Clearance  Television Clearance  Corner Installations  Power Supply 10.0  Installing the Flue System 11.0 ...
Page 4: Product Description
Product Description: The Escea IB1100, IB850 and IB600 gas fires are designed to be built into a cavity. These appliances are flued conventionally via a Ø100mm flue system. The Escea IB600 Zero Clearance Kit , IB850 Zero Clearance Kit and IB1100 Zero Clearance Kit are to be used for all installations.
Page 5 Product Dimensions IB600 Velo (3 sided) Velo (4 sided) 795mm 795mm 625mm 660mm 36mm IB850 Velo (3 sided) Velo (4 sided) Quadrato Rado 1060mm 1060mm 1067mm 985mm 600mm 635mm 652mm 560mm 35mm 50mm Note: 30mm clearance required below Quadrato fascia for air ventilation 630184_4 IB Installation Manual NZ...
Page 6 IB1100 Velo (3 sided) Velo (4 sided) Quadrato Rado 1360mm 1360mm 1367mm 1285mm 600mm 635mm 652mm 560mm 35mm 50mm Note: 30mm clearance required below Quadrato fascia for air ventilation 630184_4 IB Installation Manual NZ...
Page 7: Creating The Cavity
The IB1100 and IB850 have their electronics compartment protruding from the left hand side of the fire and the resulting offset needs to be taken into account when installing into a tight masonry cavity.
Page 8: Cavity Base
The base must also be levelled to prevent vibration from possible fan imbalance. For the installation of an IB1100 the base of the cavity must be strong enough to support the total product weight, which is a minimum of 70kg.
Page 9: Mantle Clearance
It is the responsibility of the end user to check the installation instructions of their electrical appliances to ensure that the location in relation to the gas fire is suitable. Escea in no way guarantees or takes responsibility that the above installation suggestion will be suitable for all electrical or home entertainment appliances.
Page 10: Power Supply
10.0 Power Supply: Whilst the cavity is being created consideration should be given to appropriate location of a standard 3 pin, EARTHED 240V power outlet. This must be within 0.5m of the rear left hand corner of the appliance. 10.1 Locating the power outlet within the cavity makes the installation very neat but the provision MUST be made to be able to switch the power supply off and on (electrical isolation switch) and MUST be accessible after the heater has been installed.
Page 11: Installing The Flue System
11.0 Installing the Flue System: Non-Masonry Timber Frame Cavity: The heater must be flued to the outside via a 100mm diameter stainless steel flue that is covered by a 150mm diameter liner. This must be installed in accordance with the requirements of AS/NZS 5601.
Page 12: Flue Assembly
12.0 Flue Assembly Secure the Flue spacer bracket (G3003) to the top section of 100mm Flue and insert the cowl, this can be riveted or held in place with screws (see 12.1 Installing the Flue Terminal). Now slide the 150mm flue onto the bracket. For each section of flue a Spider bracket will be required.
Page 13 12.1 Installing the Flue Terminal Cut the flue termination to the height specified on the attached “Flue position” diagrams and leave a vertical offset of 20 - 30mm between the inner and outer as shown. Slide the flue liner sleeve over the liner and push it down about 150mm out of the way.
Page 14 Note: As per national standards, the finished terminal must be in clear air and not enclosed in any way. All the required flue components are available from your Escea dealer in both kitset form and as individual components. 600mm clearance to nearest part of roof...
Page 15 FROM AS/NZS 5601, please ensure compliance to all other relevant sections of this code. 2.6.13 FLUE TERMINALS 2.6.13.1 Location The termination point of a flue shall be located in relation to any associated building and to neighbouring structures so that wind from any direction is not likely to create a downdraught in the flue or chimney. Except where 2.6.13.3 applies, a flue terminal shall: (a) Be at least 1m horizontally from a neighbouring structure;...
Page 16 FLAT ROOFS WITH NO PARAPET STRUCTURE CLOSE TO FLUE TERMINAL Less Than 1500 FLUE CLOSE TO PARAPET MULTIPLE STRUCTURES (Envelope Method) Less Than 1500 If Less Than If Less Than 10 x h 10 x h FLUE AWAY FROM PARAPET MULTIPLE STRUCTURES AT A DISTANCE Greater than 1500 If greater than...
Page 17 12.4 Fixing the Flue to the Cavity A length of Angle should be attached to the inside of the timber frame cavity to hold the flue in place. Once you have fixed the Angle to the inside of the cavity holes must be drilled to secure it to the flue.
Page 18: Masonry Cavity And Chimney
13.1 The top of the flue must be capped with an appropriate anti down draft cowl. Note: Chimney liner flue kits intended for other brands of heater may not fit. Escea flue spigot is 100mm inside diameter. 14.0 Laying Gas Pipe: Gas pipe should be sized as per the requirements of AS/NZS5601.
Page 19: Assembling The Zero Clearance Kit
Split plug as indicated to allow gas pipe to pass through 14.3 It is recommended that a gas isolating valve be installed as close to the regulator on the gas inlet side as possible. This will allow for easier servicing in the future. 14.4 If the room has not been completed and the wall surfaces are yet to be lined or plastered the fire must not be installed into the Zero Clearance Kit until such time that there will be no further sanding.
Page 20: Fixing The Zero Clearance Kit To The Cavity
15.3 Attach the Top-Rear: Attach the top-rear panel to the Sides and Rear panels, with the flanges of the Top-rear panel on the outside. Do not attach Top-Front panel yet, This will be done after the flue has been mated with the fire.
Page 21: Gas Fireplace Installation
17.0 Gas Fireplace Installation: Attached to the base of the Zero Clearance Kit are guide rails. The inside edge of these rails will line up with the outside edge of the two outer under base supports. When the parts are lined up, push the fire towards the back of the Zero Clearance Kit until it cannot be pushed back any further.
Page 22: Attaching The Flue To The Fireplace
14.1 19.1 The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty.
Page 23: Fixing The Heater To The Base And Wall
Plan view from top looking down. Electrical point of entry Install gas lines to any of these 3 points. Leave enough piping to reach the front right hand corner of the ZCK once installed. Final gas connection point Gas pipe (after ZCK installation) 20.0 Fixing the Heater to the Base and Wall: There are several ways that the heater can be fixed against movement: It is a requirement...
Page 24: Placing The Fuel Bed
After replacing the firebox (if removed in 17.1) the fuel bed media can now be placed. → If you are installing logs into an IB600 or IB850 SEE SECTION 21.1 → If you are installing logs into an IB1100 SEE SECTION 21.2 → If you are installing a ceramic coal fuel bed SEE SECTION 21.3...
Page 25 IB850 Log & Template Position 4) Line up some of the coals that have been supplied with this appliance, along the burner holes in front of the logs. 5) Scatter the remaining coals around to fill the empty spaces left over. 630184_4 IB Installation Manual NZ...
Page 26 21.2 Locating the Log Set for IB1100: 1) Remove packaging from around log sets 2) Place 2 x rear logs (long rectangular ones) into position by inserting behind retainer brackets at rear of fire box. 3) Place front three log sets into position over the top of the main burners. Use the log template to properly locate the logs.
Page 27 Retainers as shown in the image to the right. There will be 2x Rear Log Retainers on the IB600 and IB850, and 4x on the IB1100 - Remove all of these. Step 5: Replace the firebox by reversing the instructions in section 17.0 of this manual (do...
Page 28 The IB600 and IB850 have 2x Rear Log Retainers, which should be screwed in place in the rear corners of the firebox. The IB1100 has 4x Rear Log Retainers, two in the rear corners of the firebox and two in the center as shown.
Page 29: Electrode Placement
To attach to the right hand side, use the supplied screw and brass washer as shown in the diagrams below. In some cases it may be necessary to drill a 1/8” (3.3mm) hole in the lower baffle. Note, the diagram below is for an IB1100. For IB850 and IB600 the log templates shape will vary.
Page 30 Step 3: (IB850 & 600 only) Unscrew rear burner clamp bracket on left side. Lift out the rear burner. 24.4 Step 4: Change the three jets (two jets in IB1100) Step 4 with the jets supplied in kitset (outlined in the table below).
Page 31 24.5 Step 5: If changing from LPG to NG, slide the supplied burner collar onto the burner tubes of both burners as shown to the right and secure in place using the supplied screw as shown If changing from NG to LPG, remove the burner collar by removing the screw and completely removing the burner collar.
Page 32: Checking Operating Pressure
25.0 Checking Operating Pressure: WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty.
Page 33: Fitting The Fascia Panels
Replace the glass Note: If the glass gasket requires a replacement, call your nearest Escea agent who will ensure the part is replaced with the correct type. In the event that the glass is broken by impact, purchase the replacement from an authorised Escea agent only.
Page 34: Locating Wall Mount Cradle For Wireless Control
5. A suitable distance away from the heater. 6. Ideally 1.2m to 1.5m from the floor The radio frequency signal will go through some walls but for best results escea suggest that the cradle position is between 5 and 15 metres away from the heater.
Page 35: Normal Operating Sounds And Smells
Fan: Escea gas appliances use electric fans to push heated air further into the room. It is not unusual for the fan to make a “whirring” sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan.
Page 36: Installation Check List
29.0 Installation Check List: Tick here Ensure there is adequate ventilation in the area the appliance is installed in. Ensure the spark electrodes are correctly positioned. Operating pressure checked with heater running on full (all burners operating) and all other gas appliances in the house switched on.
Page 37: Warranty Terms And Conditions
ESCEA operating and maintenance instructions, then for the first period of twelve (12) months from the date of purchase ESCEA will pay the cost of repairing or replacing any part of the Product that is deemed by ESCEA to be faulty.
