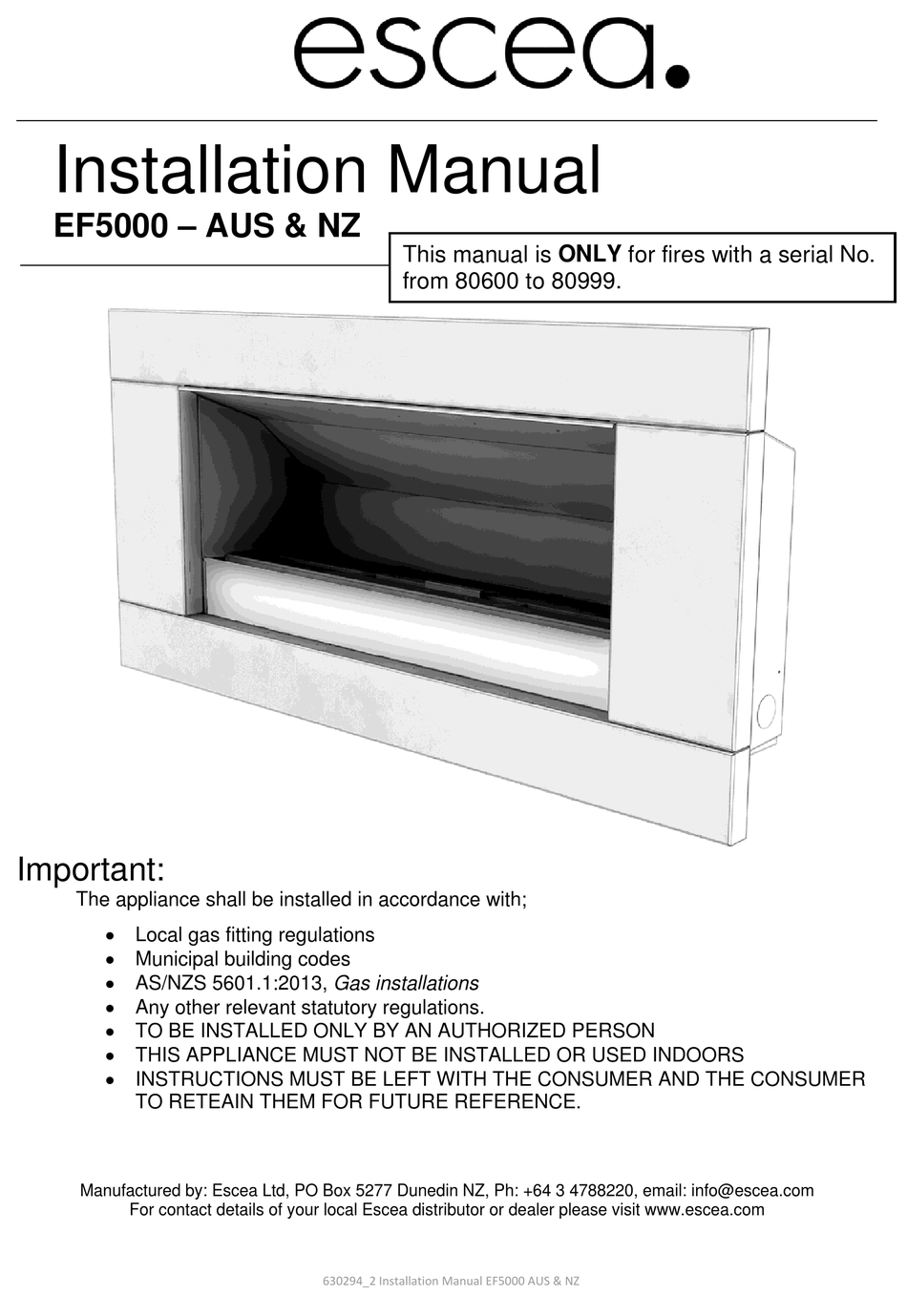

Installation Manual
EF5000 – AUS & NZ
Important:
The appliance shall be installed in accordance with;
Local gas fitting regulations
Municipal building codes
AS/NZS 5601.1:2013, Gas installations
Any other relevant statutory regulations.
TO BE INSTALLED ONLY BY AN AUTHORIZED PERSON
THIS APPLIANCE MUST NOT BE INSTALLED OR USED INDOORS
INSTRUCTIONS MUST BE LEFT WITH THE CONSUMER AND THE CONSUMER
TO RETEAIN THEM FOR FUTURE REFERENCE.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 4788220, email: info@escea.com
For contact details of your local Escea distributor or dealer please visit www.escea.com
This manual is ONLY for fires with a serial No.
from 80600 to 80999.
630294_2 Installation Manual EF5000 AUS & NZ
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Escea EF5000 – AUS
Summary of Contents for Escea EF5000 – AUS
- Page 1 INSTRUCTIONS MUST BE LEFT WITH THE CONSUMER AND THE CONSUMER TO RETEAIN THEM FOR FUTURE REFERENCE. Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 4788220, email: info@escea.com For contact details of your local Escea distributor or dealer please visit www.escea.com...
- Page 2 Warning: Children and adults should be alerted to the hazards of high surface temperatures, burns and clothing ignition. Young Children should be carefully supervised when they are in the area of the ap- pliance. Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
-
Page 3: Table Of Contents
Contents: Chapter: Product description Power supply Creating the cavity Wall cladding around the fire Minimum install height off the ground Types of installation Corner Installations Laying gas pipe Fixing the fire into the cavity Connecting gas pipe 10.0 Connecting the power supply and touch panel 11.0 Testing of touch panel and spark ignition 12.0... -
Page 4: Product Description
Product Description: The escea EF5000 flame effect gas fire is designed for outdoor use only. This appliance re- quires no flue and must be permanently installed into a cavity. It may be installed into a tim- ber cavity. The fire is controlled by the user from a switch that is situated on the lower right hand side of the stainless steel fascia. -
Page 5: Power Supply
1400mm. Warning: Under no circumstances should any object such as people, 1400mm Minimum WALL pets, furniture, etc. be closer than 1 metre in front of the escea EF5000. 1000mm Minimum 30mm Minimum Warning: Do not install a TV above this fire under any circumstances. -
Page 6: Wall Cladding Around The Fire
Certain materials or items, when placed under or near the appliance, will be subjected to ra- diant heat and could become damaged. The following installation diagrams are escea recommendations only and may or may not comply with your local council standards. Please check with your local council for actual building standards. - Page 7 Within a partial enclosure that includes an overhead cover and no more than two walls. Within a partial enclosure that includes an overhead cover and more than two walls, the following should apply: At least 25% of the total wall area is completely open, and ...
-
Page 8: Corner Installations
Corner Installations: If a cavity is to be created in a corner, the following drawings give the minimum sized interi- or wall dimensions possible. 1010 1830 Note: Allowances need to be made for cladding the internal of the cavity. Dimensions of the cavity in this diagram represent the internal size only. 1000 Minimum Minimum... -
Page 9: Laying Gas Pipe
Laying Gas Pipe: Gas pipe should be sized as per the requirements of AS5601/AG601-2000. The pipe sizing must be sufficient to deliver the following volume of gas to the heater with all other gas ap- pliances in the home running at the same time; EF5000 Natural Gas = 52 Mj/hr EF5000 Propane = 40 Mj/hr EF5000 ULPG = 40 Mj/hr... -
Page 10: Fixing The Fire Into The Cavity
No matter which connection the installer chooses, the regulator that is supplied in the fire MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended for use with an Escea EF5000, will void the limited appliance warranty. 10.2 The EF5000 must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½... - Page 11 11.0 Connecting the power supply and power switch: 11.1 The Power Supply socket is located in the centerline of the fire, below the firebox, facing the right hand side behind the ignition tray. Push the 2 pin plug together until they ‘click’. 11.2 The ON/OFF Power Switch socket plugs into the 3 pin plug lead situated at the front RH side of the fire.
-
Page 12: Checking Operating Pressure
13.0 Checking Operating Pressure: NOTE: Check ensure that the correct jets, for the gas being used, are installed – see Chapter 20. This check is done at the regulator located at the lower front of the appliance. 13.1 This must be done before fascia has been fitted. 13.2 Pressure test point available for operating pressure (as shown below). -
Page 13: Assembly Of Stone Cartridge
14.0 Assembly of stone cartridge: The glass which fits inside in the stone Cartridge has been packaged to protect it during transit, and can be found inside the firebox. Insert the glass strip into the stone cartridge as shown to the right, between the two metal flanges and push it all the way to the bottom. A bag of pebbles (River Stones) are also supplied, use these to fill the stone cartridge. -
Page 14: Fitting The Fascia
15.0 Fitting the Fascia: Before fitting the fascia, the hooks must be attached using the screws supplied. Ensure the wires connecting the fascia to the fire are securely connected, as per section 11.0. The EF5000 fascia is attached to the combustion box by four ‘hooks’ on the corners of the fascia. - Page 15 THEY ARE FOR USE INSIDE THE STONE CARTRIDGE ONLY 16.1 If desired, an optional Weather Cover can be purchased from your Escea retailer, which protects the fuelbed and burners. This should be replaced when while the fire is not in use.
-
Page 16: Operating Instructions
17.0 Operating Instructions: The EF5000 is operated by the switch located on the right hand side outer edge of the fas- cia. The basic operations possible are ON/OFF. Before operating the fire, ensure the power transformer is plugged into the mains wall socket &... -
Page 17: Maintenance And Cleaning
17.3 Pilot Flame and Burner Positioning 18.0 Maintenance and Cleaning The unit must be cold before starting any form of maintenance or cleaning. To remove the glass and stones in the front stone tray simply reverse the steps in section 15.0. The glass can be cleaned using standard window cleaner and the quartz stones can be washed using soapy water 18.1... -
Page 18: Electrical Schematic
19.0 Electrical Schematic 630294_2 Installation Manual EF5000 AUS & NZ ... - Page 19 630294_2 Installation Manual EF5000 AUS & NZ ...
- Page 20 Rear Burner Aeration 11mm x 2 off per burner 11mm x 2 off per 5mm x 2 off per burner Hole burner Collar must be fitted Mj/hour For any inquires, please contact your local Escea distributor or dealer www.escea.com 630294_2 Installation Manual EF5000 AUS & NZ ...
-
Page 21: Gas Conversion
20.0 Gas conversion Warning: Before starting the gas conversion, ensure that the fireplace is cool. Step One: Lift the fascia and hang it in the second slot, now you can unplug the fascia lead and remove the Fascia from the EF5000 firebox by lifting up and outwards. - Page 22 Pilot Jet helpful remove EF5000 AUS control tray AGA Cert. No. 7427 Part No. 620161_2 www.escea.net Escea Ltd, PO Box 5277 Dunedin, NZ Gas NG Propane ULPG Pilot Jet Ø0.45 Ø0.30 Ø0.30 Example 7427 Front Jet ...
- Page 23 Natural Gas Propane ULPG Step Eight: For Propane/ULPG to Natural gas conversion you will need to fit the natural gas restrictor collars. These slide over the burner tube on the underside of the burners, and must be screwed into place so that the porting holes line up. Holes must line up Fitting the restrictor sleeve...
- Page 24 Step Nine: Insert the burners and fix them into place with the burner clamps. Replace the stone tray and fix it back onto the firebox. Replace the coals, ensuring you have only one even layer. Do not heap or mound the coals. Step Ten: Re-attach the fascia power supply lead.
