Escea IB1100 Service Manual

Hide thumbs Also See for IB1100:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual

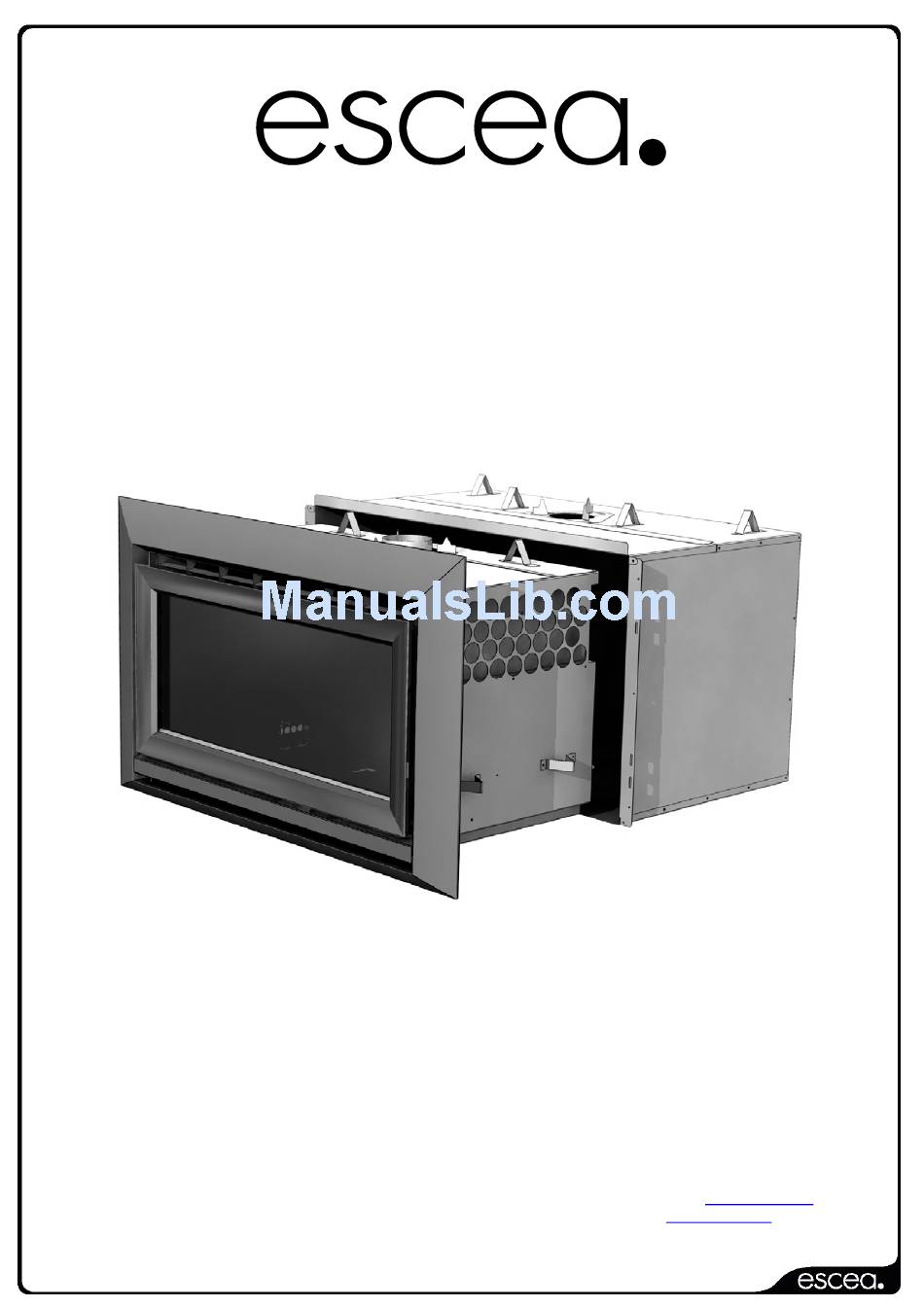

IB1100 and IB850
Service Manual
AUSTRALIAN EDITION
Important
• This appliance must be serviced every 12 months.
• Any service operation should be carried out only by a suitably qualified and trained person
• Gas and electricity supply MUST be isolated before any service operation is carried out
on this appliance.
• This manual must be left with the appliance.
•
DO NOT MODIFY THIS APPLIANCE
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email:
For contact details of your local escea distributor or dealer please visit
G8872_7 Service Manual AU.doc
info@escea.net
www.escea.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IB1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Escea IB1100

Summary of Contents for Escea IB1100

  • Page 1 • This manual must be left with the appliance. • DO NOT MODIFY THIS APPLIANCE Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net For contact details of your local escea distributor or dealer please visit www.escea.net...

  • Page 2: Table Of Contents

    Contents: Page: Error Codes Cleaning the Log Set and Glass Checking Operating Pressure Removing / Cleaning Fan Removing Electronic Drawer Replacing a Wireless Control Gas Type Conversion Annual Service Procedure Wiring Diagram G8872_7 Service Manual AU.doc...

  • Page 3: Error Codes

    Error Codes: This gas fire has been designed to show error codes to help explain and identify any fault situation that occurs. These codes will appear on the wireless control in the form of a large letter “E” with a number beside it.
  • Page 4 This indicates a fault with one of the two temperature sensors installed in your fire. Resetting the fire (turning the power to the fire off then on again after a few seconds) and if the fault reappears, please contact your Escea sales agent to organise a replacement sensor. These sensors must not Temp Sensor Error be disabled or bypassed.

  • Page 5: Cleaning The Log Set And Glass

    The high temp silver powder coating that is used on Escea fascia parts contains certain amounts of aluminium that when rubbed too hard will oxidise leaving a black smudge that cannot be removed. Always clean when cold.

  • Page 6: Checking Operating Pressure

    1) Remove inlet pressure test point screw and attach manometer tube. 2) Run the heater on full (all three burners for IB850 and two burners for IB1100 are running) and measure inlet pressure. If pressure does not fall within the maximum or minimum pressures listed on the table below then reassess installation pipe size or upstream regulator settings.

  • Page 7: Removing / Cleaning Fan

    Removing or Cleaning Fan As part of regular service procedure, it is recommended that the fan is removed for cleaning. Dust will build up on the fan rotor and in the cavity where the fan is located. This can be removed by the service person using a hearth brush and a vacuum cleaner.

  • Page 8: Removing Electronic Drawer

    All of the electronic components of the heater have been located on a removable drawer. This drawer is located on the left hand outer side of the IB850 and IB1100. On the back of the drawer are two large connectors that unplug as the drawer is removed so only the three wires connecting the electronics to the ignition and flame rods must be removed manually from the PCB (Printed Circuit Board).

  • Page 9: Replacing A Wireless Control

    Replacing a Wireless Control: If the wireless control becomes lost or damaged, a new one can be ordered from any Escea retail agent. When you have the new remote, the following procedure needs to be followed to “teach” the remote to only communicate with that fire.

  • Page 10: Gas Type Conversion

    Lift out the rear burner. Step Four: Change the three jets (two jets in IB1100) with the jets supplied in kitset. Replace the rear burner and clamp bracket (IB850 only). Replace front two burners with the burners supplied in kitset.

  • Page 11: Annual Service Procedure

    Annual service procedure: 1. Isolate power to fire. 2. Remove front glass and clean inside of glass. 3. Remove logs and brush off any soot. 4. Remove burners and blow compressed air through the burner ports. 5. Remove jets and clean injector hole with solvent. 6.

  • Page 12: Wiring Diagram

    Wiring Diagram: G8872_7 Service Manual AU.doc...
