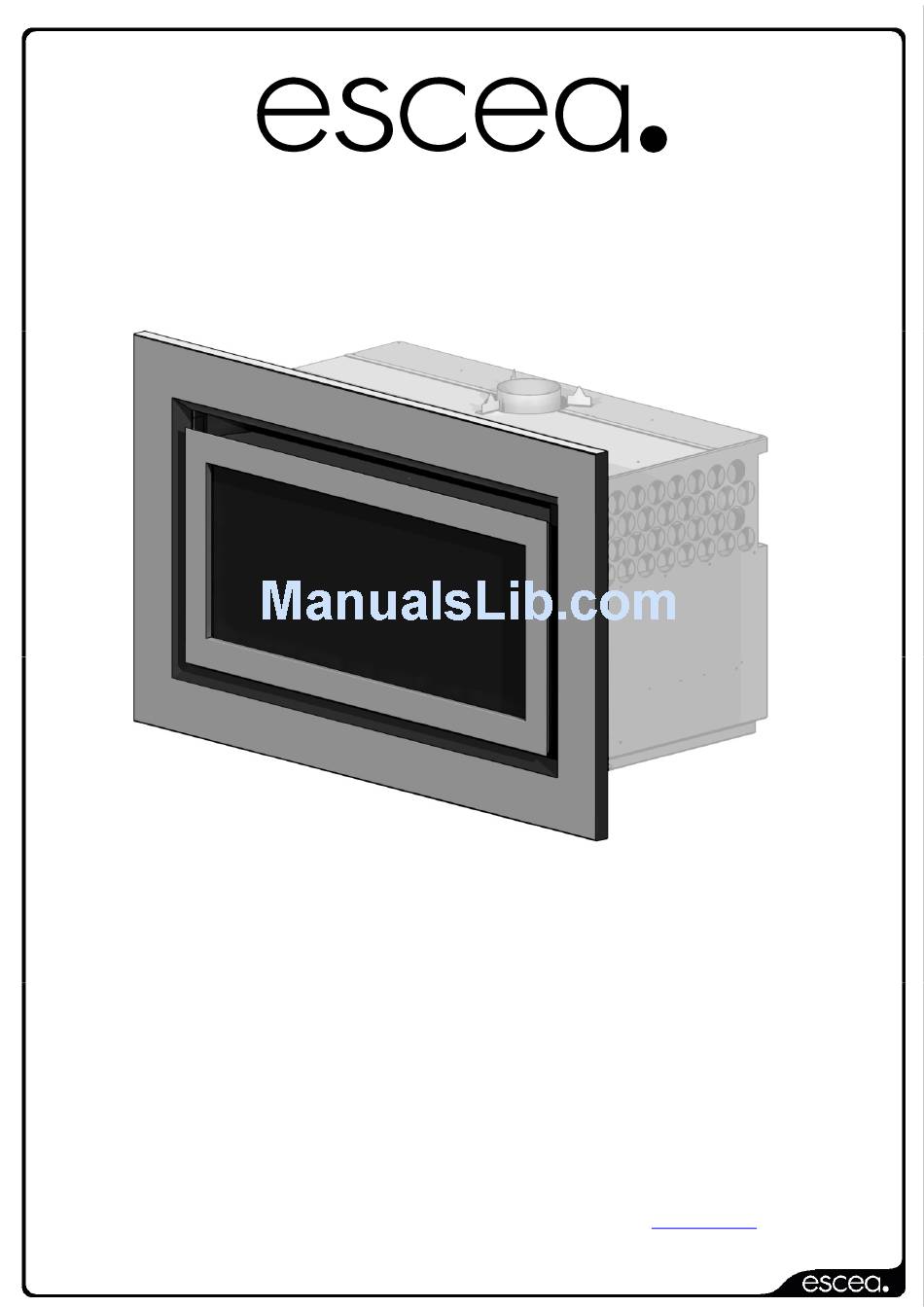

Escea IB850 Installation Manual

Square fascia

Hide thumbs Also See for IB850:

See also: Service Manual , Installation Manual

IB850, IB1100

Square Fascia

Installation Manual

AUSTRALIAN EDITION

Important:

The appliance shall be installed in accordance with;

 This installation instruction booklet.

 Must be installed by a qualified person

 This Manual replaces section 21.0 of the IB Series Installation Manual

This appliance is not intended for use by young children or infirm persons unless they have been

adequately supervised by a responsible person to ensure that they can use the appliance safely.

Young children should be supervised to ensure that they do not play with the appliance.

Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net

For contact details of your local escea distributor or dealer please visit

www.escea.net

630099_2 Square Fascia Installation Manual AUS.doc

Table of Contents

Need help?

Do you have a question about the IB850 and is the answer not in the manual?

Page 1 Young children should be supervised to ensure that they do not play with the appliance. Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net For contact details of your local escea distributor or dealer please visit www.escea.net...
Page 2 Step 1: Replace the glass. Note: If the glass gasket requires a replacement, call your nearest Escea agent who will ensure the part is replaced with the correct type. In the event that the glass is broken by impact, purchase the replacement from an authorised Escea agent only.
Page 3 Step 3: Remove Existing bracket The next step in attaching the square fascia mounts, is to remove the existing left hand fascia bracket attached to the control box on the front left hand side of the firebox. Using a screwdriver, carefully screw out the two screws holding the left hand bracket in place. Remove this bracket.
Page 4 Step 5: Hang the Outer Fascia (larger one) from the 45 degree flange at the top of the firebox. Once the Fascia is hung on this flange it will swing down and clip into place. Once it has clipped onto the firebox the Fascia should be parallel with the wall.
