Escea IB850 Installation Manual

Freestanding unit

Hide thumbs Also See for IB850:

See also: Service Manual , Installation Manual

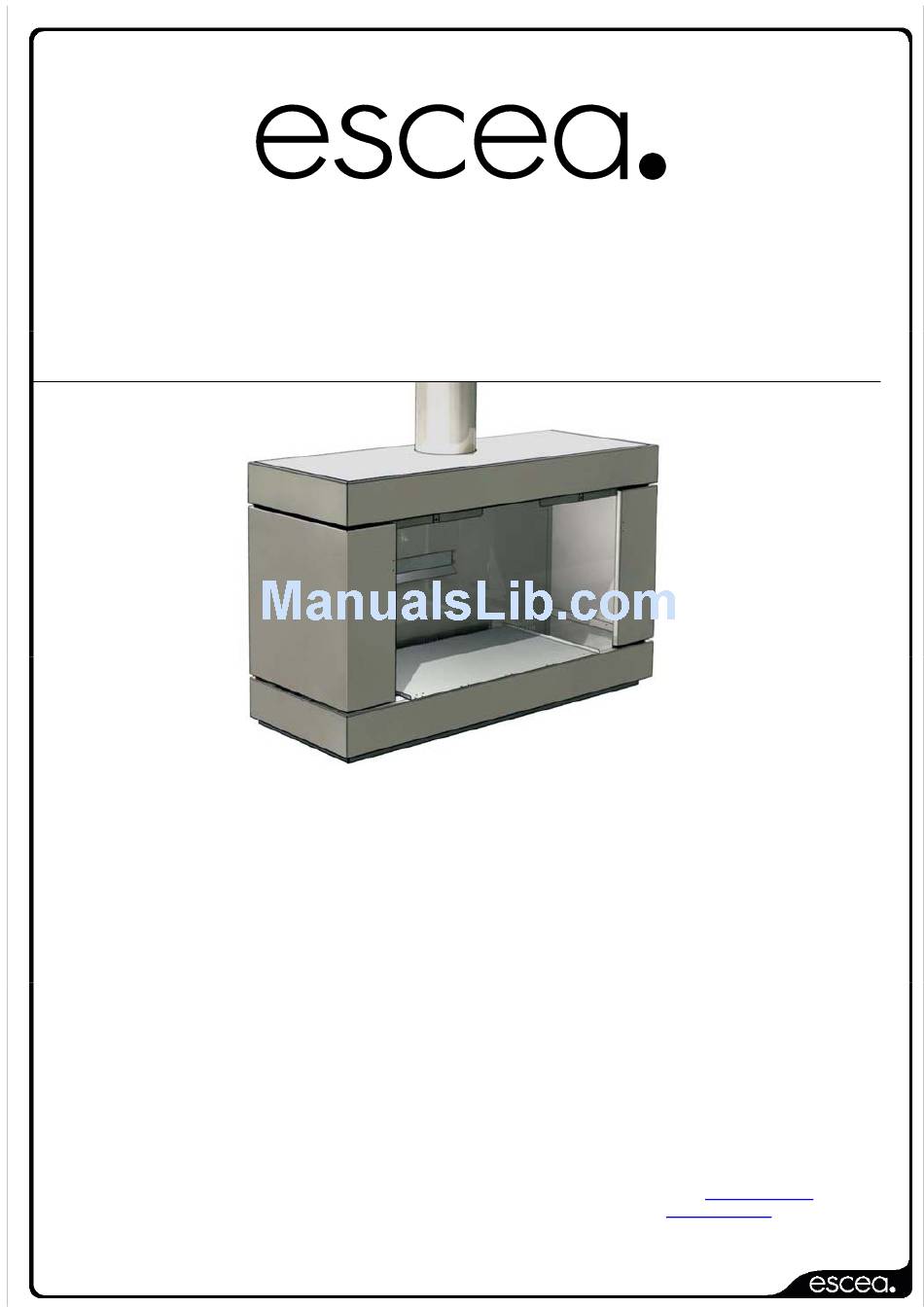

IB850 Freestanding Unit

Installation Manual

NEW ZEALAND EDITION

Important:

This Freestanding Unit is intended for use with an Escea IB850 Indoor Gas Fire only. You

will need to get a 230/240 Volt power supply to the lower back left or right of the

Freestanding Unit. You will also need to get a gas supply to the lower back left or right of the

Freestanding Unit.

The gas fire appliance shall be installed in accordance with;

• This installation instruction booklet and with the Installation Manuals supplied with your

IB850 and Outer Skin Kit

• Local gas fitting regulations

• Municipal building codes

• Electrical wiring regulations

• AS 5601 / AG 601—2000, Gas installations/ NZ 5261:2003 Gas installation

• Any other relevant statutory regulations.

• Must be installed by a qualified person

This appliance is not intended for use by young children or infirm persons unless they have been

adequately supervised by a responsible person to ensure that they can use the appliance safely.

Young children should be supervised to ensure that they do not play with the appliance.

Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email:

For contact details of your local escea distributor or dealer please visit

630095-1 NZ Freestanding Unit Installation Manual.doc

info@escea.net

www.escea.net

Table of Contents

Need help?

Do you have a question about the IB850 and is the answer not in the manual?

Page 1 NEW ZEALAND EDITION Important: This Freestanding Unit is intended for use with an Escea IB850 Indoor Gas Fire only. You will need to get a 230/240 Volt power supply to the lower back left or right of the Freestanding Unit. You will also need to get a gas supply to the lower back left or right of the Freestanding Unit.
Page 2: Product Description
• Installation Notes Product Description: The Escea IB850 Free Standing Unit is intended only for use with an Escea IB850 Gas Appliance and is designed to provide a free standing cavity suitable for an indoor installation. This Free Standing Unit and IB850 Gas Appliance is not to be installed outdoors.
Page 3 Outer Skin Kit. Ensure that gas and electricity services to the gas appliance have been taken into account before finalising the Free Standing Unit position. The following parts are required in order to install your IB850 Free Standing Unit: 1 x IB850 Free Standing Unit 2 x Ø200mm Outer Flue...
Page 4 Some measurements to take into consideration are shown below. Note: Sealing around the hole in the ceiling and flue terminal is the responsibility of the installer and should be completed in accordance with local regulations 630095-1 NZ Freestanding Unit Installation Manual.doc...
Page 5 The flue should be connected to the fire in accordance with local regulations based on the following illustration 630095-1 NZ Freestanding Unit Installation Manual.doc...
