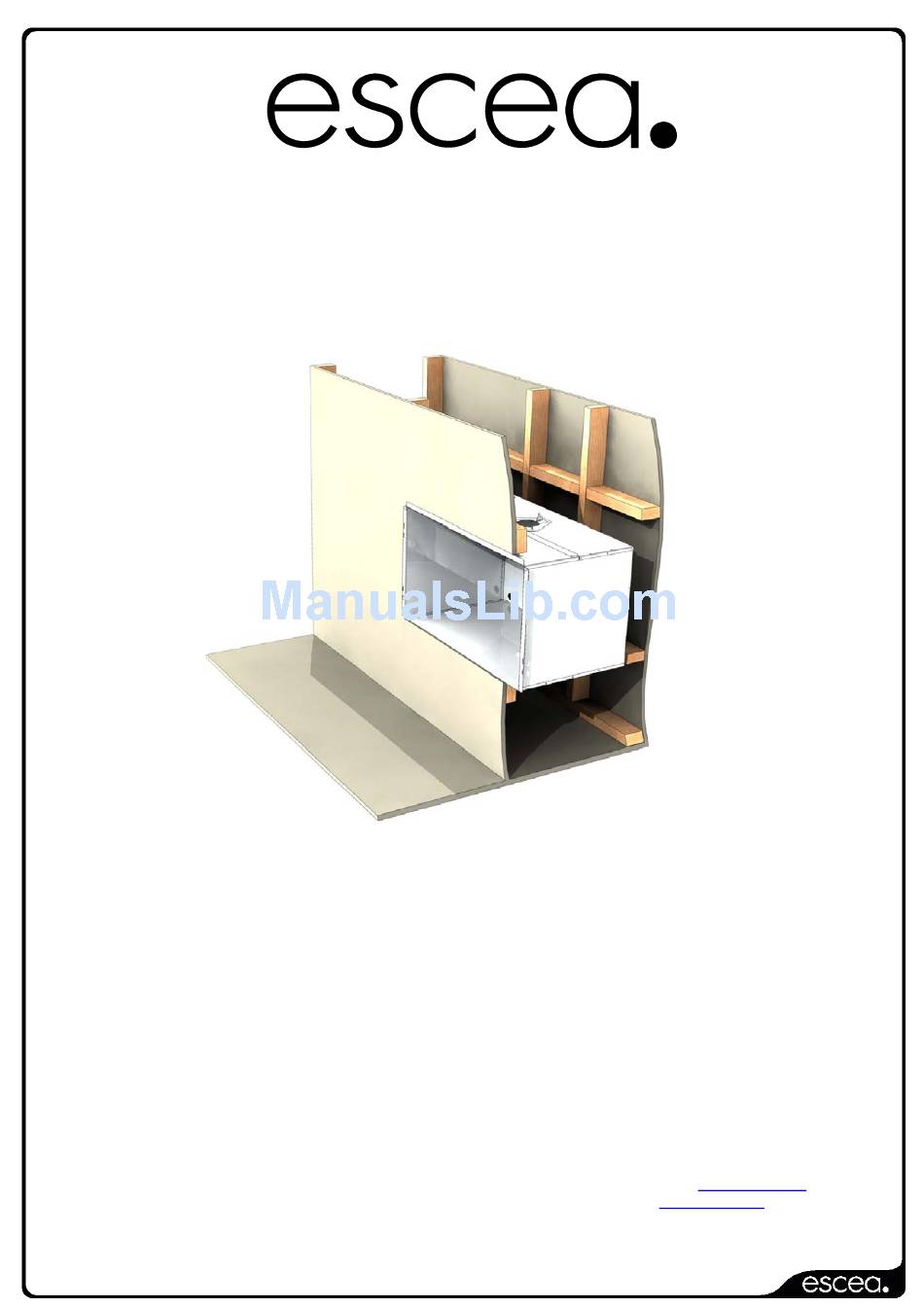

Outer Skin Kit & Flue:
IB600, IB850, IB1100
Installation Manual
Please see IB series product installation guide for details of installing the gas fire into this pre-
formed metal cavity.
Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Local gas fitting regulations
• Municipal building codes
• Electrical wiring regulations
• AS 5601, Gas installations / NZ5261 Gas Installation
• Any other relevant statutory regulations.
• Must be installed by a qualified person
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email:
For contact details of your local escea distributor or dealer please visit
630077_5 Outer Skin Kit Installation Manual.doc
info@escea.net
www.escea.net
Advertisement
Table of Contents
Related Manuals for Escea IB600
Summary of Contents for Escea IB600
- Page 1 • Any other relevant statutory regulations. • Must be installed by a qualified person Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: info@escea.net For contact details of your local escea distributor or dealer please visit www.escea.net...
- Page 2 Note: THERE ARE TWO MAIN THINGS TO CONSIDER BEFORE INSTALLATION • You will need to get 230/240 Volt power supply to the back right corner of the cavity • You will need to get gas pipe to one of the three corners of the cavity by removing a knock out Plan view from top looking down.
-
Page 3: Table Of Contents
Contents: Section: • Product Description • Creating the Cavity • Hearth • Raised Installations Up a Wall • Wall Linings • Mantle Clearance • Television Clearance • Corner Installations • Power Supply • Installing the Flue System • Flue Assembly (NZ ONLY) 10.0 •... -
Page 4: Product Description
Product Description: The Escea IB600 Outer Skin Kit (New Zealand only), IB850 Outer Skin Kit and IB1100 Outer Skin Kit are to be used for all installations. They seal the cavity and isolate the fire from air pressure changes within the cavity. -
Page 5: Creating The Cavity
If the fire is being located in such a way that the bottom of the cavity is any more than 100mm up off the ground no hearth is required. Escea recommend that if a heater is being mounted more than 100mm up a blank wall and no hearth is being used, then a four sided fascia is used (available from your Escea dealer). -
Page 6: Mantle Clearance
It is the responsibility of the end user to check the installation instructions of their electrical appliances to ensure that the location in relation to the gas fire, is suitable. Escea in no way guarantees or takes responsibility that the above installation suggestion will be suitable for all electrical or home entertainment appliances. -
Page 7: Power Supply
Power Supply: The electrical cord (either of the fire, or an extension cord) should pass through the ‘Outer Skin Kit’ as shown, through the supplied ‘Cord Strain Relief Bush’. Locating the power outlet within the cavity makes the installation very neat but the provision MUST be made to be able to switch the power supply off and on (electrical isolation switch) and MUST be accessible after the heater has been installed. - Page 8 NZ ONLY Installing the Flue System Non-Masonry Timber Frame Cavity: The heater must be flued to the outside via a 100mm diameter stainless steel flue that is covered by a 150mm diameter liner. This must be installed in accordance with the requirements of AS5601 / NZ5261.
- Page 9 NZ ONLY 10.0 Flue Assembly Secure the Flue spacer bracket to the top section of 100mm Flue and insert the cowl, this can be riveted or held in place with screws (see 10.1 Installing the Flue Terminal). Now slide the 150mm flue onto the bracket.
- Page 10 NZ ONLY 10.1 Installing the Flue Terminal Cut the flue termination to the height specified on the attached “Flue position” diagrams and leave a vertical offset of 20 - 30mm between the inner and outer as shown. Slide the flue liner sleeve over the liner and push it down about 150mm out of the way.
- Page 11 AUSTRALIA ONLY 10.2 Flue Kits : (Glen Dimplex kits only shown. Check with local distributor for availability) 552327 Standard Flue Kit 552332 Offset Flue Kit Black 552330 900mm Flue Extension Kit 552333 Offset Flue Kit Galvanised Black 552331 900mm Flue Extension Kit Galvanised 630077_5 Outer Skin Kit Installation Manual.doc...
-
Page 12: Installing The Flue System
AUSTRALIA ONLY 10.3 Installing the Flue System Non-Masonry Timber Frame Cavity: The heater must be flued to the outside via a 100mm diameter inner flue that is covered by a 150mm diameter liner. This must be installed in accordance with the requirements of AS5601 and local codes. - Page 13 6. Fix an appropriate weather shielding to the outer liner at the penetration and seal to the roof or chimney using an appropriate sealer. 7. Fit the gas cowl. 8. Once gas fireplace is operational check the installation for flue spill where possible 9.
- Page 14 The top of the flue must be capped with an appropriate and approved anti down draft cowl. All the required flue components are available from your escea dealer in both kitset form and as individual components. Seal - Deck Tight or similar...
- Page 15 FROM AS5601, please ensure compliance to all other relevant sections of this code. 2.6.13 FLUE TERMINALS 2.6.13.1 Location The termination point of a flue shall be located in relation to any associated building and to neighboring structures so that wind from any direction is not likely to create a downdraught in the flue or chimney.
-
Page 16: Flue Clearance
10.6 Flue Clearance: 630077_5 Outer Skin Kit Installation Manual.doc... - Page 17 630077_5 Outer Skin Kit Installation Manual.doc...
- Page 18 10.7 Fixing the Flue to the Cavity A length of angle should be attached to the inside of the timber frame cavity to hold the flue in place. Once you have fixed the angle to the inside of the cavity holes must be drilled to secure it to the flue.
-
Page 19: Assembling The Outer Skin Kit
11.0 Assembling the Outer Skin Kit: Included in the Outer Skin Kit is: 1x Top-Rear panel 1x Top-Front panel 2x Side panels 1x Rear panel 1x Base panel 11.1 Attach the Sides to the Base: Attach Side panels to Base, make sure Base panel flanges are on the outside, and the large flange of the Side panels faces the front. -
Page 20: Fixing The Outer Skin Kit To The Cavity
12.0 Fixing the Outer Skin Kit into the Cavity: Slide the Outer Skin Kit into the cavity, and secure it to the wall using screws or other fasteners through the slots at the front of the side panels. The cavity is now ready for the installation of the Gas Fireplace. -
Page 21: Laying Gas Pipe
Gas pipe should be sized as per the requirements of AS5601 / NZ5261:2003. The pipe sizing must be sufficient to deliver the following volume of gas to the heater with all other gas appliances in the home running at the same time; New Zealand Australia IB600 36 MJ/hr ----- IB850 42 MJ/hr... -
Page 22: Gas Fireplace Installation
14.0 Gas Fireplace Installation: Attached to the base of the Outer Skin Kit are guide rails. The inside edge of these rails will line up with the outside edge of the two outer under base supports. When the parts are lined up, push the fire towards the back of the Outer Skin Kit until it cannot be pushed back any further. -
Page 23: Securing The Flue Sleeve
NZ ONLY 16.0 Securing the Flue Sleeve Tighten the flue sleeve with a screw driver and spanner, ensure a tight and secure seal has been made between the flue assembly and the flue outlet spigot. 16.1 Inserting the OSK Lid: Once the previous steps have been completed you slide the 180mm flue sleeve (NZ ONLY) down until it rests on...
