AVE RegCom-Pro Operation Manual page 87

APPENDIX O

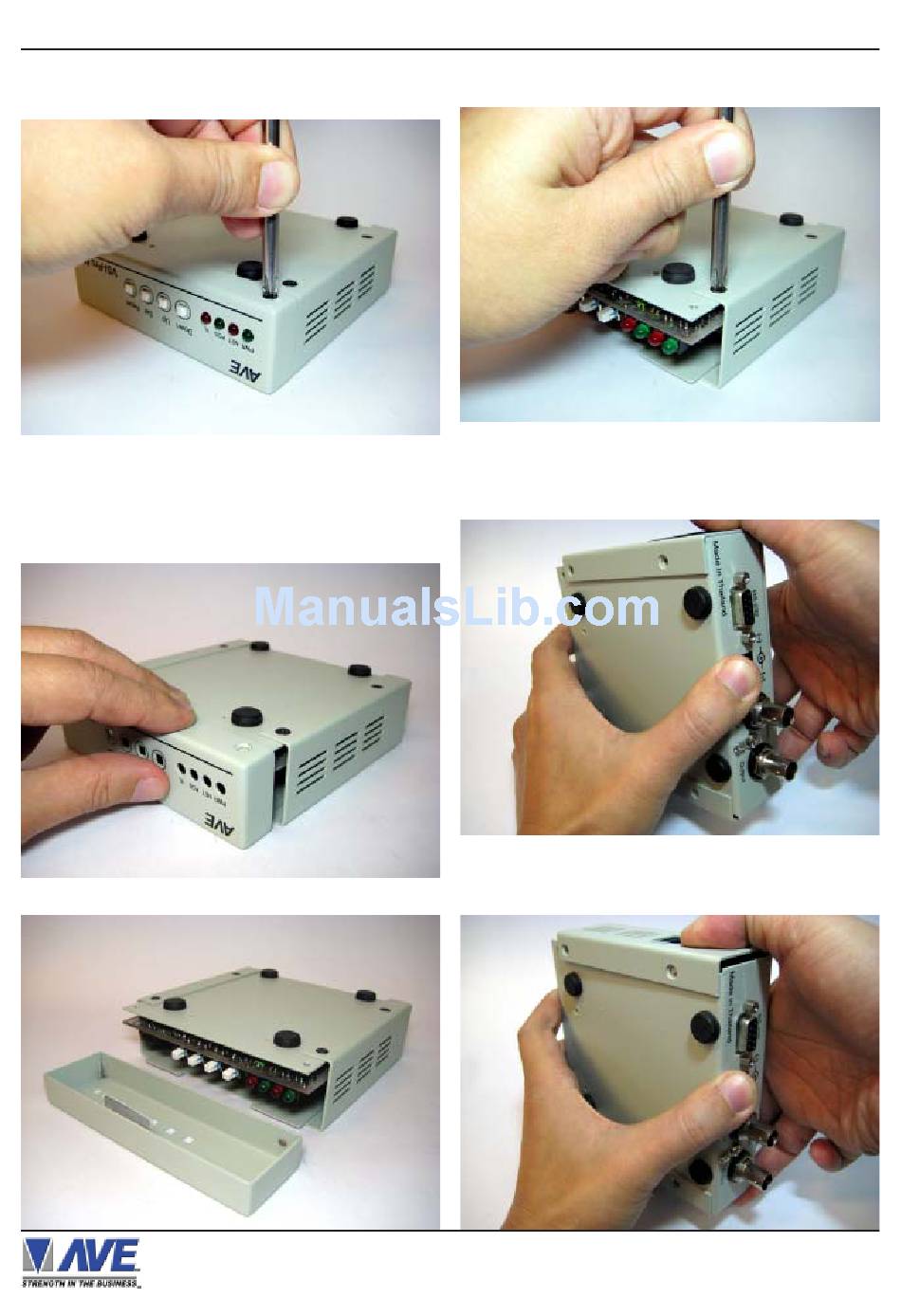

1. Place the RegCom-Pro on the table with the base
cover facing upwards.
2. Remove the 2X M3 x L5mm P0.5 Countersunk Philips
screws using a proper screw driver.
3. Hold onto the top cover assembly and slide out the
front cover.
4. Remove the front cover panel completely.
RegCom-Pro POS / Cash Register Interface
RegCom-Pro Case Disassembly / Assembly
5. With the base cover remaining facing upward, remove
the remaining 4X M3 x L5mm screws.
6. With the right hand thumb holding the top cover at the
rotation edge and the left hand holding the base cover, rotate
the cover in the direction shown to expose the end catch.
7. With the left hand holding the base cover slide down
the cover and at the same time press to dislocate the
RJ45 connectors away from the top cover.
87
