AVE RegCom-Pro Operation Manual page 84

RS-485 VNETWORKER
View Status
Pull Down the Window to select ComPort and select 32 Address when using less than 32 registers
and select 64 if using more than 32 registers.
The Green Led is indicated when a Networker is Detected.
The Red Led is indicated no Networker at that Address.
Windows
Windows Tile Horizontally
Files:
C:\Logfiles directory contains all the files with the name extension Address1.txt, Address2.txt, etc
corresponding to the address of the Networker. These files are updated continuously. If you copy
and then delete the file, a new log file will be created with the same number as new data is
recieved. Viewing the files is updated every 2 seconds.
RegCom-Pro POS / Cash Register Interface

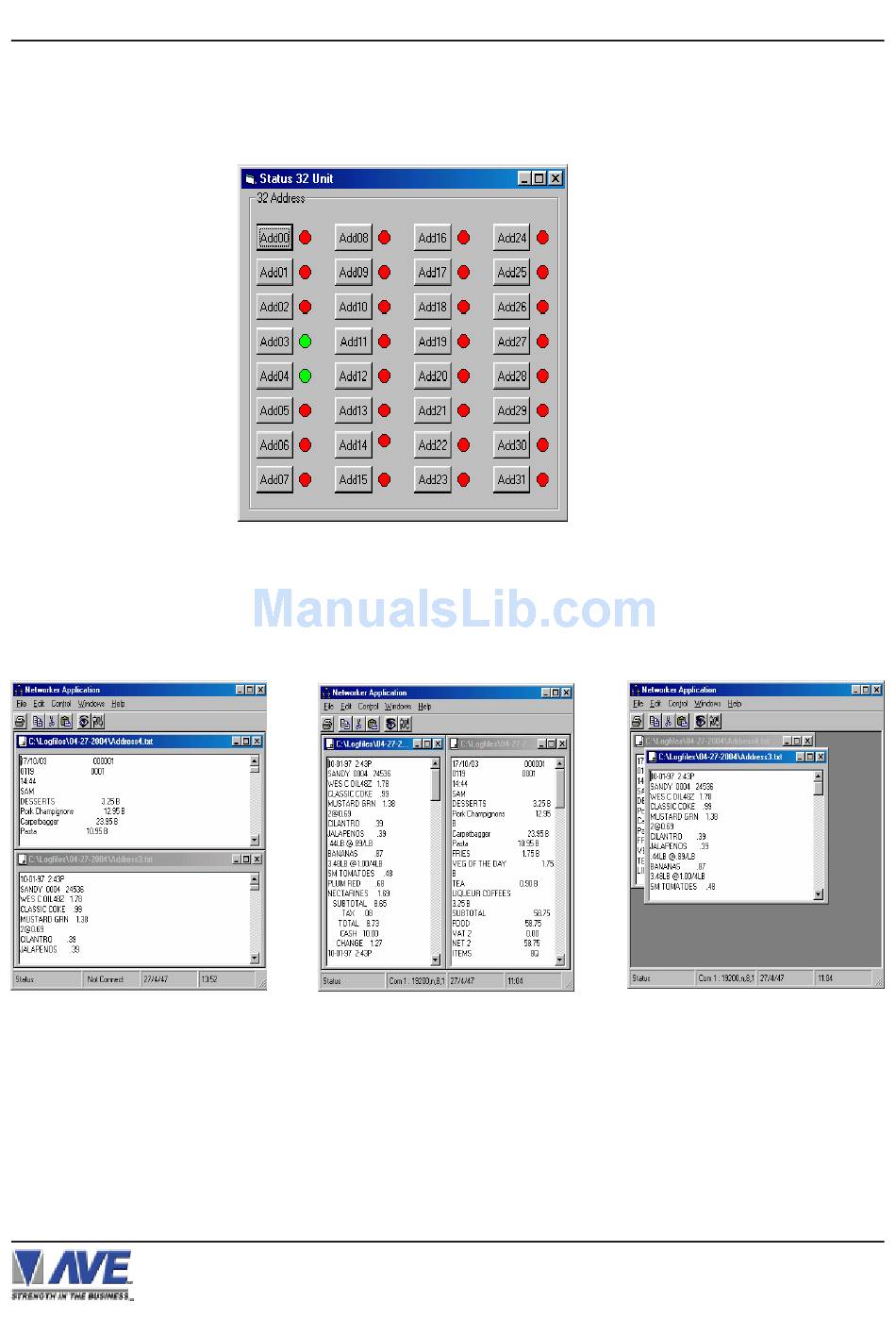

Figure 151: Status Display
Windows Tile Vertically
Figure 152: Window Tile Options
84
APPENDIX M
Windows Cascade
