4. PROGRAMMING
Click the Tab "Remote" and you will see the following Page.
Click on "Set Comport". If the RegCom-Pro is in the "Baudrate
Detection" Mode then you can set any baud rate and the
RegCom-Pro will self configure. However if the RegCom-Pro
is already set to a baud rate you must select the exact baud
rate and communication configuration in the RegCom-Pro for
connection to occur. If the unit does not display "Connected"
then you have either entered the wrong baud rate or communi-
cation settings or a cable problem or the RegCom-Pro not
powered.
RegCom-Pro POS / Cash Register Interface

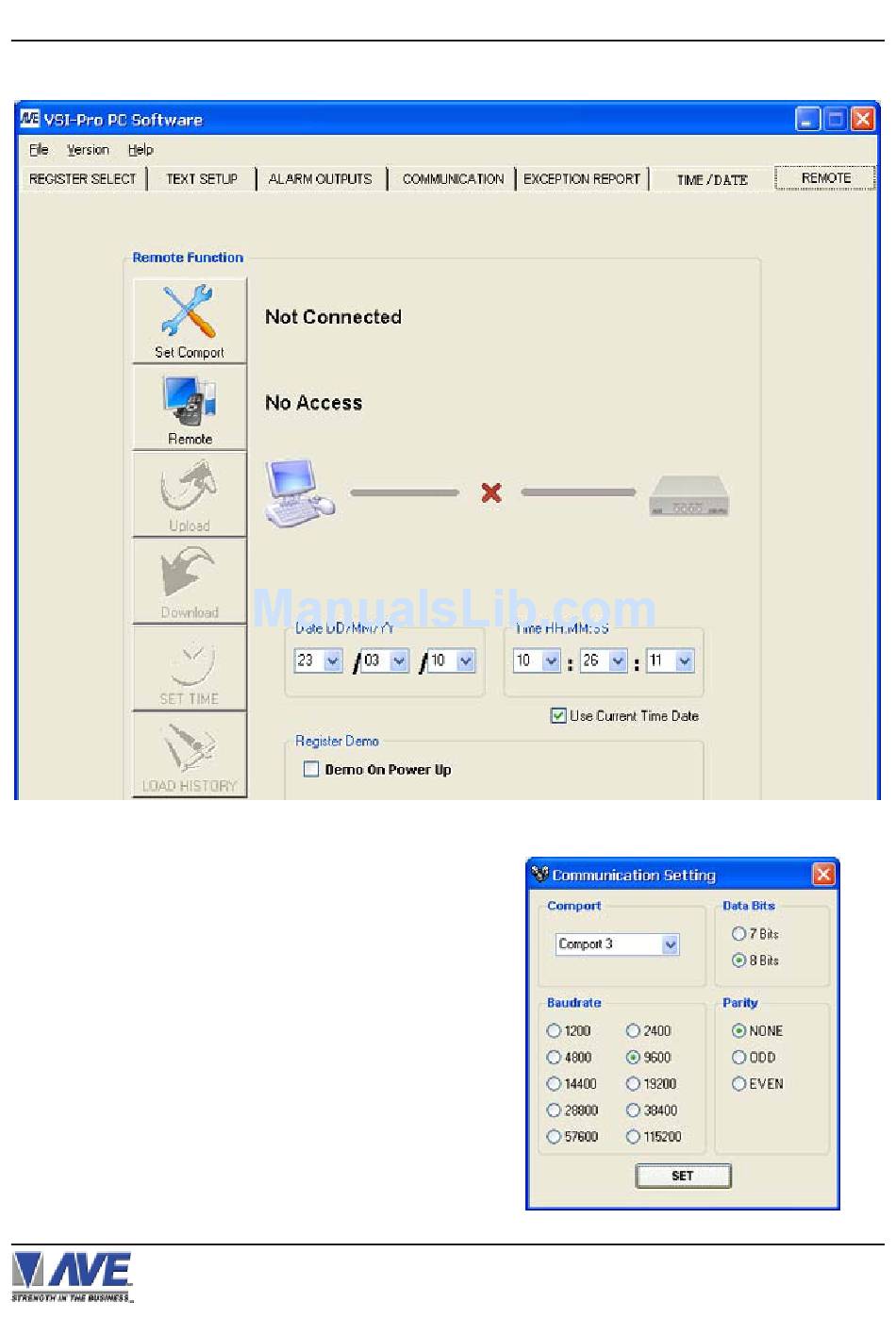

Figure 108 Remote Page
Figure 109 Communication Setting page
