4. PROGRAMMING

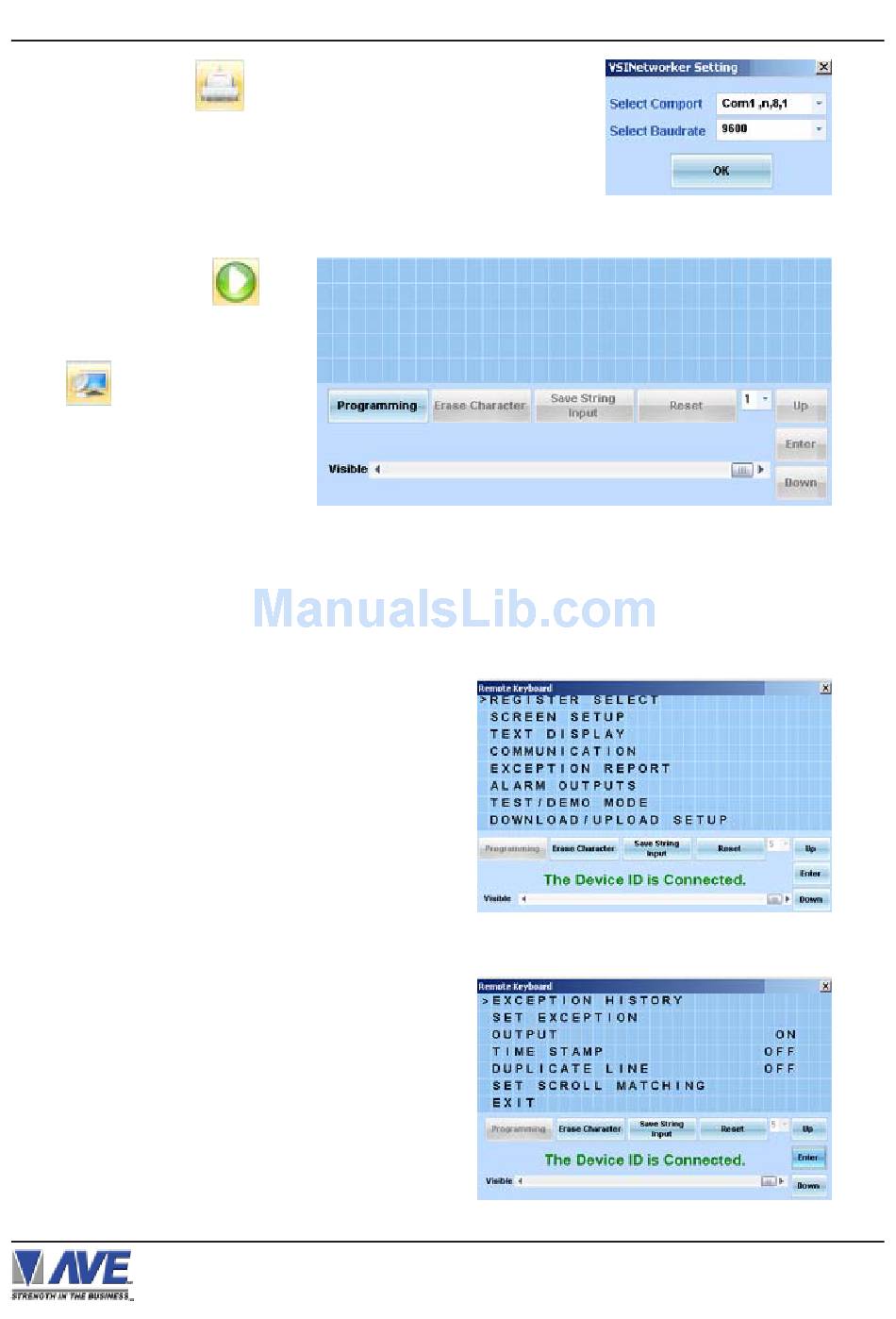

Click on Setting Button and you will see the following page.From this
pulldown menu you can select the ComPort and baudrate.The default baudrate
is 9.6kbps for the RegCom-Pro Master.The ComPort is dependent on your
computer.
Figure xxx : Comport and Baudrate Selection
Click on Connect Button for
connect between RegCom-Pro Master
and Computer then click on VSI Remote
button you will see the following
page.
Figure xxx : Remote Keyboard Page
Special buttons like Erase Character and Save String Input allow for the combination buttons used in the xxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Each RegCom-Pro unit on the RegCom-Pro network must set with a unique network address.
Selection of the remote keyboard page allows you to access
any of the RegCon-Pro slave on the network which control
the RegCom-Pro slave into the programming mode.During
programming time all data from the RegCom-Pro slave will be
lost for disconnected from the RegCom-Pro master until
released from programming.
From remote keyboard page you can select RegCom-Pro
address from RegCom-Pro address pulldown menu and then
click on Programming Button you will see the following page
Figure xxx : RegCom-Pro Main Menu
From the RegCom-Pro main menu, click the "Up" or "Down"
button to move the cursor to "EXCEPTION REPORT" and click
"Enter". The following menu will appear:
Figure 117: EXCEPTION REPORT Sub Menu
RegCom-Pro POS / Cash Register Interface
