AVE RegCom-Pro Operation Manual page 65

RegCom-Pro Master DB9M
RG-59U
NOTE:
The RegCom-Pro can control the DVR RS-232 port from Pin 3. In the Cash Register "Tapping Mode" the RegCom-Pro
uses Pin 3 to send out auxillary ASCII data and DVR control signals. Therefore in this mode you can operate the
RegCom-Pro in the "Slave Mode" and connect to control the DVR via Pin 3. You can not use the RegCom-Pro in the
"Master Mode". If you select "Master Mode" this will have priority and when you select DVR Time/Data Search you will
generate an error message.
In the Cash Register "Emulate Mode" the RegCom-Pro uses Pin 3 to connect to the cash register supplying the
proper emulate handshaking signals. Therefore Pin 8 must be connected to the DVR to command the Exception
Search mode. Therefore you can not use the RegCom-Pro in "Slave Mode" and utilize the DVR control feature while
connecting in "Emulate Mode". If you choose the "Slave Mode" this will have priority over the DVR control mode and
will generate an Error Message when DVR Time/Date is selected. The same will be true if "Master Mode" is selected.
OUTPUT EXCEPTIONS
This selection allows you to have the buffered exceptions sent out for printing. This is a global setting for all exceptions,
but you also need to turn on the output for each independent exception.
CLEAR HISTORY
This selection clears all the buffered exceptions and resets the TOTAL EXCEPTIONS counter.
RegCom-Pro POS / Cash Register Interface
3 ------------------------------------- 2
2 ------------------------------------- 3
5 ------------------------------------- 5
RegCom-Pro Master
RS-232
RG-59U

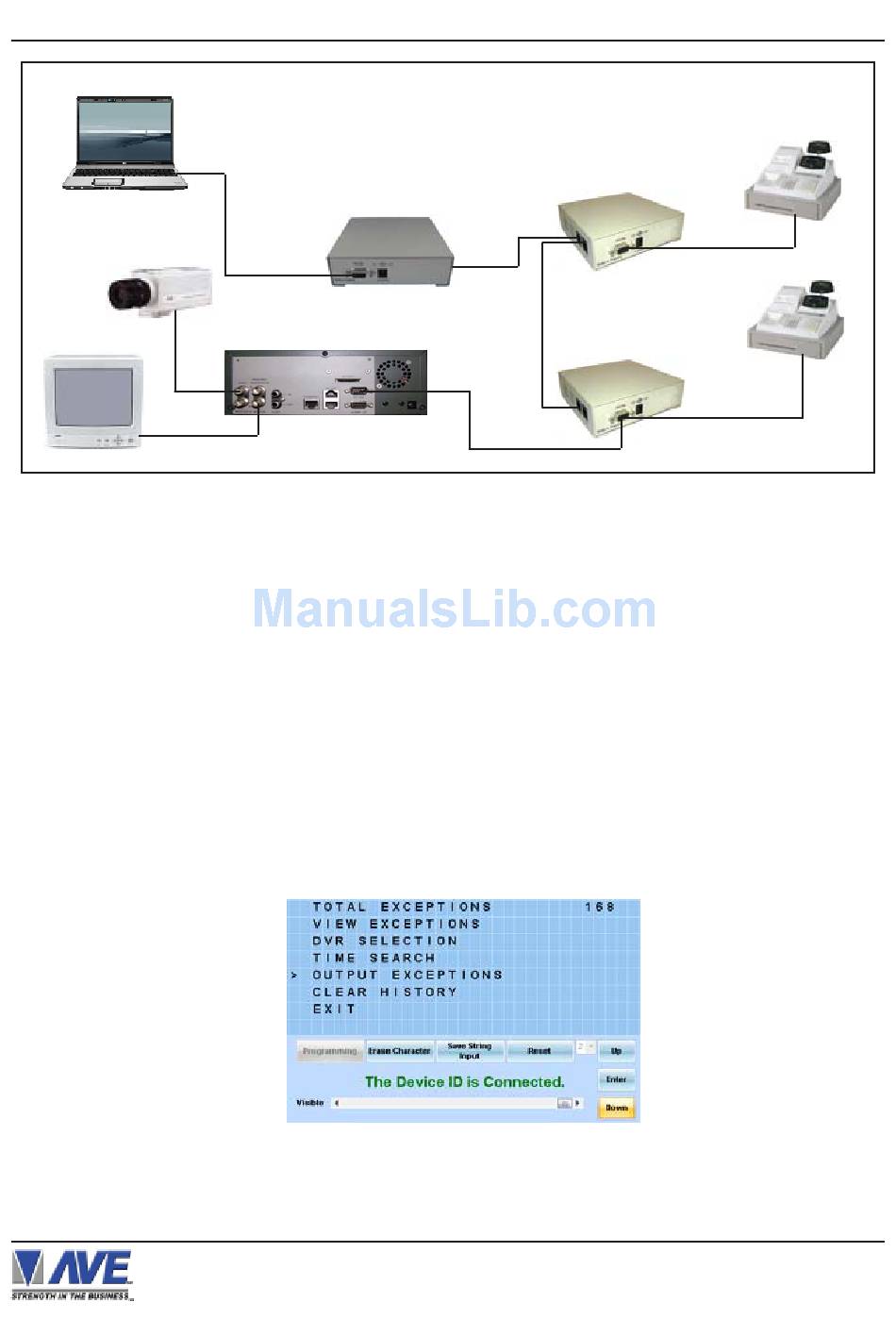

Figure 117: RegCom-Pro Network and DVR Control Connections
Figure 117: OUTPUT EXCEPTIONS menu
RegCom-Pro Slave DB9M
PC DB9F
3 ------------------------------------- 2
5 ------------------------------------- 5
RegCom-Pro Slave
RS-485
RS-485
RegCom-Pro Slave
RS-232
RXD
RS-232
TXD
65
4. PROGRAMMING
DVR DB9F
RS-232
RS-232
RXD
TXD
RS-232
TXD
RS-232
RXD
