Appendix N : Regcom-Pro Jumper Settings - AVE RegCom-Pro Operation Manual

RS-485 VNETWORKER
The "Set Time / Date" functions allows you to set this value from the PC Time/Date or manually enter yourself.
Select ID sets the address value of the appropriate VSI-Pro on the network you wish to up date.
RegCom-Pro Jumper Settings
See independent sections for complete description of jumper settings relating to its particular function. All Factory
Control Jumpers should not be changed for are only used for factory testing and configuration.
Jumper
Register RS-422/485 Termination
JP2 ON - Term 120 ohm
OFF - No Term
DB9 Pin 9 Selection
JP6 ON 1-2 Alarm 2
OFF -Enable Signal Gnd Ref
JP18 ON - Signal Gnd Reference
DB9 Pull-Up 3.3K to 12VDC
JP8 ON RTS (Pin 7)
JP9 ON DSR (Pin 6)
JP10 ON DTR (Pin 4)
DB9 Pin 5 Selection
JP14 ON - RS-232 Signal Gnd ON
OFF - RS-232 Isolate Gnd
Register RS-232 Type
JP20 & JP21 ON 1-2 RS-232C
ON 2-3 Opto Isolated RS-232
NOTE: Must remove JP14 and use Pin 5 for iso-
lated ground when using Opto Isolated RS-232
input. If using TXD or other input/output signals
simulatenously, must remove JP6 and put JP18
ON and use Pin 9 for signal ground reference.
Factory Control
JP1 ON
JP5 OFF
JP11 ON
JP12 OFF
JP13 OFF
RegCom-Pro POS / Cash Register Interface
Figure 154 : Time / Date Set up Menu
Default Jumper
Network RS-422/485 Termination
JP15
OFF
DB9 Pin 8 Output (Only one ON)
ON JP3
JP4
ON
ON
ON
ON
ON
OFF
ON
OFF

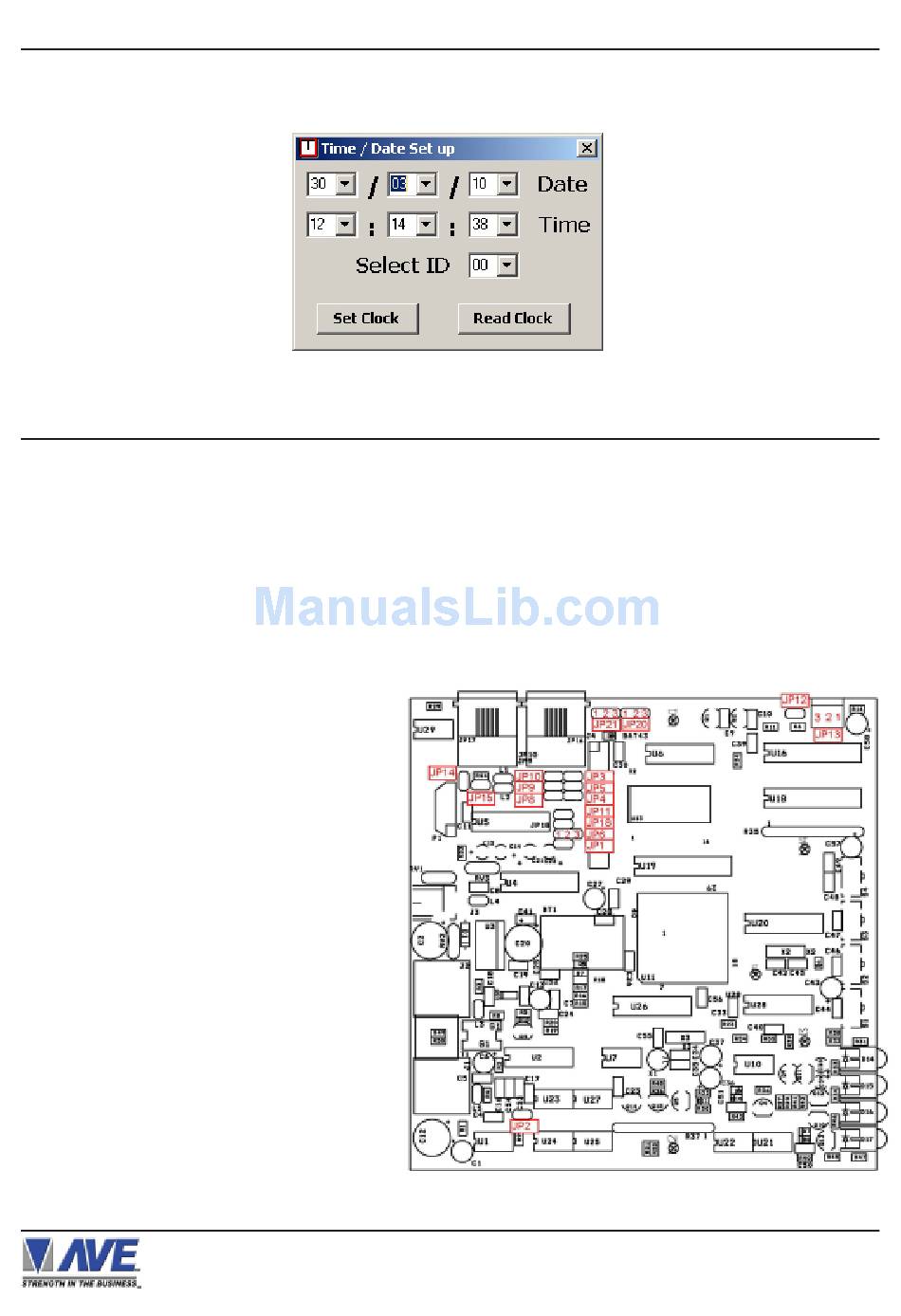

Figure 155: RegCom-Pro PCB Jumper Settings
OFF
86
ON - Term 120 ohm
OFF - No Term
ON - CTS Output
ON - Network RS-232
