UTP CONNECTIONS
Network RJ45 Connector
The RegCom-Pro has two RJ45 connectors on the side of the unit mainly for Network communications. However only two
pins of this connector is used for the networking RS-485 signals Pins 4&5. All other pins are wired in parallel so can pass
other LAN signals utilizing the same cable. When using CAT5 or CAT6 cable for 10Mbs or 100Mbs only Pins 1&2 and
3&6 are used for the Ethernet LAN connections so the RegCom-Pro networking signals can use Pins 4&5 without any
conflict with the LAN connections. Therefore IP cameras or Internet can ride on the same cable. Furthermore Pins 7&8
can be used to for power or the video signal utilizing the UTP-1500.
RegCom-Pro RJ45 Pin Outs
RJ45 In
1 -------------------------- 1 ------------------ N/C
2 -------------------------- 2 ------------------ N/C
3 -------------------------- 3 ------------------ N/C
4 --------------------------- 4 ------------------- A+ RegCom-Pro Network
5 --------------------------- 5 ------------------- B- RegCom-Pro Network
6 -------------------------- 6 ------------------ N/C
7 -------------------------- 7 ------------------ N/C
8 -------------------------- 8 ------------------ N/C

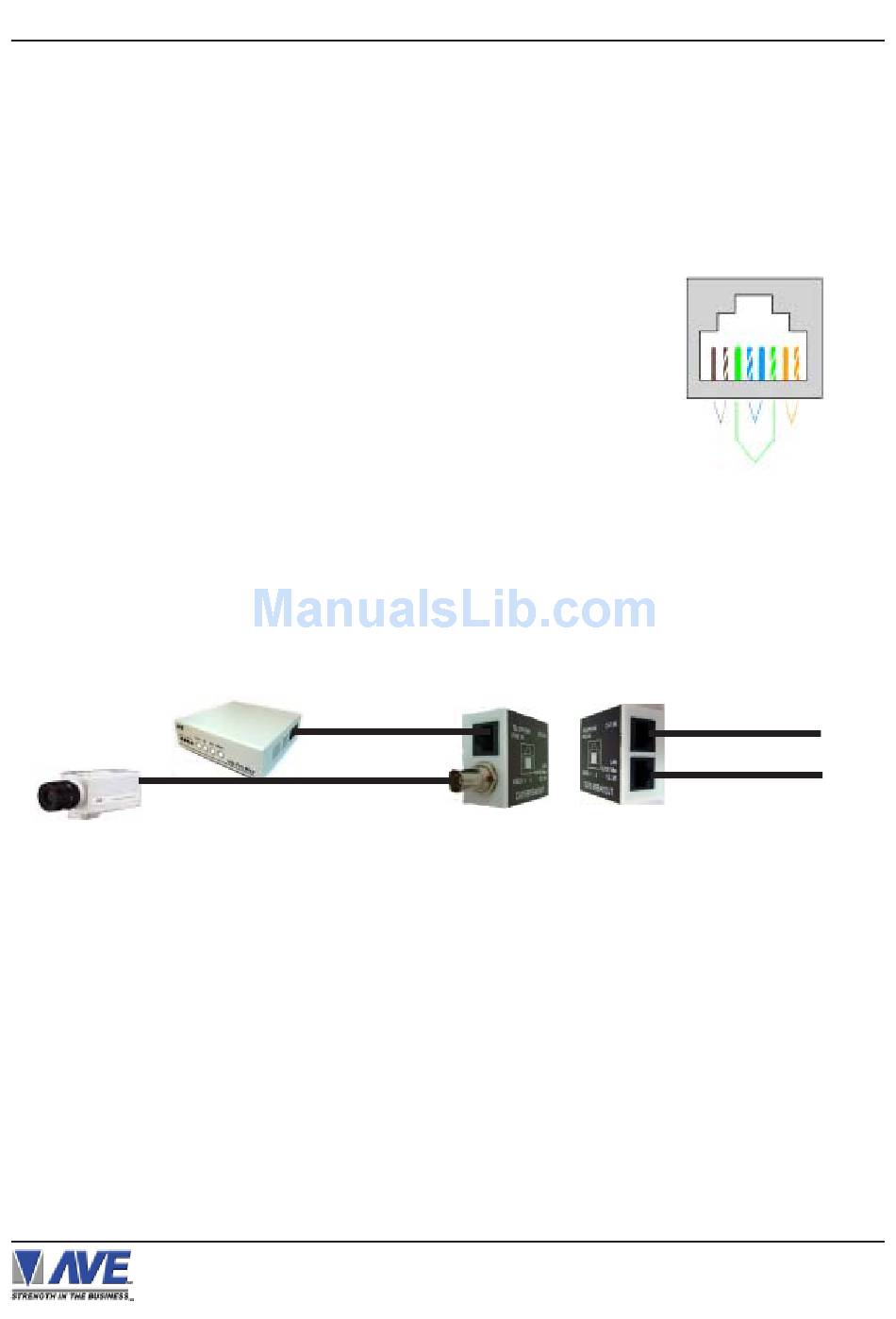

Figure 121A: RegCom-Pro RJ45 Pin Outs
CAT 5 Breakout
The AVE CAT5 Breakout makes all these connections simply plug and play. This device has an RJ45 connector for
the CAT5/6 wire connection of all 4 pairs. It also has an additional RJ45 for the addition of Ethernet LAN, another
RJ45 for the RegCom-Pro Networking or Telco signals and a built in UTP-1500 for passive video transmission on the
same cable.
Camera
RegCom-Pro POS / Cash Register Interface
RJ45 Out RegCom-Pro
RegCom-Pro Network
Figure 122: RegCom-Pro & CAT5 Breakout
71
APPENDIX D
T568B
8 7 6 5 4 3 2 1
Pair 4 Pair 1
Pair 2
Pair 3
Figure 121B: RJ45 Connector
CAT 5/6 Cable
Ethernet LAN 10/100
