TCPIP 232 ADAPTER
TCPIP 232 ADAPTER
Interfacing the RegCom-Pro to the cash register TCP/IP network requires the TCPIP 232 Adapter along with the RegCom-
Pro. The IP address of the cash register is programmed into the TCPIP 232 Adapter via on-screen programming. The
cash register LAN cable is plugged into the adapter and the supplied additonal LAN cable is then plugged into the cash
register. Therefore this DOES NOT require an additional network port for the cash register interface or any host program-
ming of the router or switch. The TCPIP232 Adapter is not AutoSense so make sure the router is set for MDI so normal
straight thru cables are used.

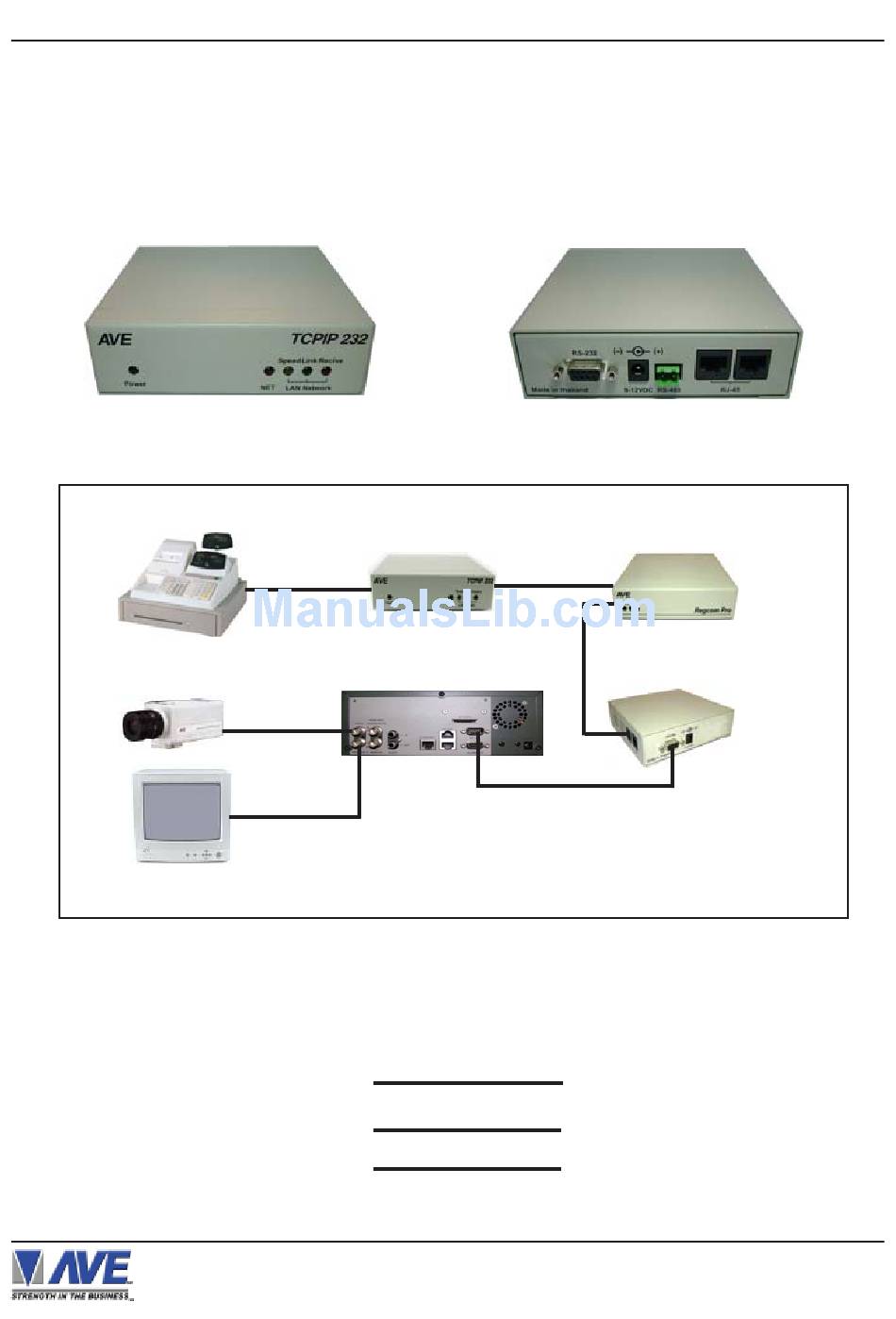

Figure 137: Front of TCPIP 232 Adapter
CASH REGISTER
The pin-out between the TCPIP 232 Adapter and the RegCom-Pro is as follows:
RegCom-Pro POS / Cash Register Interface
TCP/IP
TCPIP 232 ADAPTER
RG-59
RG-59
Figure 139: RegCom-Pro Connections with TCPIP 232 Adapter
TCPIP (DB-9M)
RXD 2
TXD 3
GND 5
Figure 140: Pin-Out for TCPIP 232 Adapter to RegCom-Pro
Figure 138: Rear of TCPIP 232 Adapter
RS-485 or RS-232
RS-485
DVR
RS-232
VSI-Pro (DB-9M)
3 TXD
2 RXD
5 GND
76
APPENDIX K
RegCom-Pro Slave
RegCom-Pro Master
