4. PROGRAMMING
File Menu
"Open" allows you to select a file which contains a previously saved version of all the RegCom-Pro setups.
"Open History" allows you to view a previously saved History File downloaded from the RegCom-Pro.
"Save" allows you to save a current set of RegCom-Pro settings that are configured in the program or previously uploaded
from the RegCom-Pro.
About Menu
"Help" gives you all the help topics of the RegCom-Pro Program Download Ver. 1.0.
"RegCom-Pro Manual" is an online .pdf of the current RegCom-Pro manual for easy reference to all the setups and
programming features and applications of the RegCom-Pro.
"About" shows you the version and release of this software.
Communication Cable Pin Out
The Com cable is RS-232 from the PC or laptop to the RegCom-Pro as follows. This cable can be no more than 100' but
if additional length is required you will need a set of the AVE RS-232 to RS-422 adapter which will extend the range to
3000'.
Figure 113: PC Programming Cable Pin Out
RegCom-Pro POS / Cash Register Interface

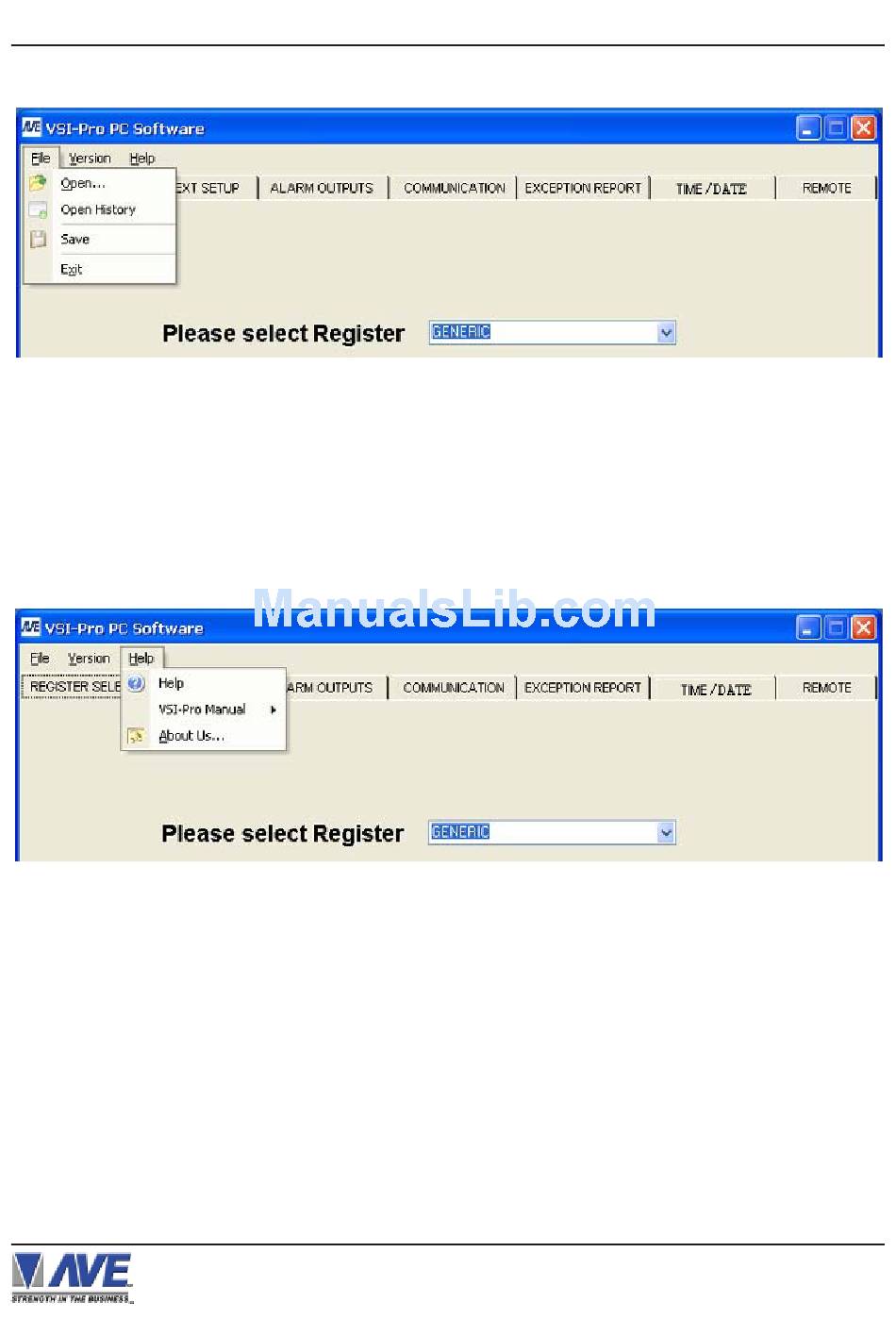

Figure 111 File Menu
Figure 112 About Main Menu
57
PC / Laptop DB9F VSI-Pro DB9M
2 ------------------------------------ 3
3 ------------------------------------ 2
5 ------------------------------------ 5
