About Digital I/O

The onboard digital I/O has 8 bits (DIO0~7). Each bit can be set to function as input or output
by software programming. In default, all pins are pulled high with +5V level (according to main
power). The BIOS default settings are 3 inputs and 5 outputs where all of these pins are set to
1.
Digital I/O
CAPA841/842 Capa Board
Appendix B
Digital I/O

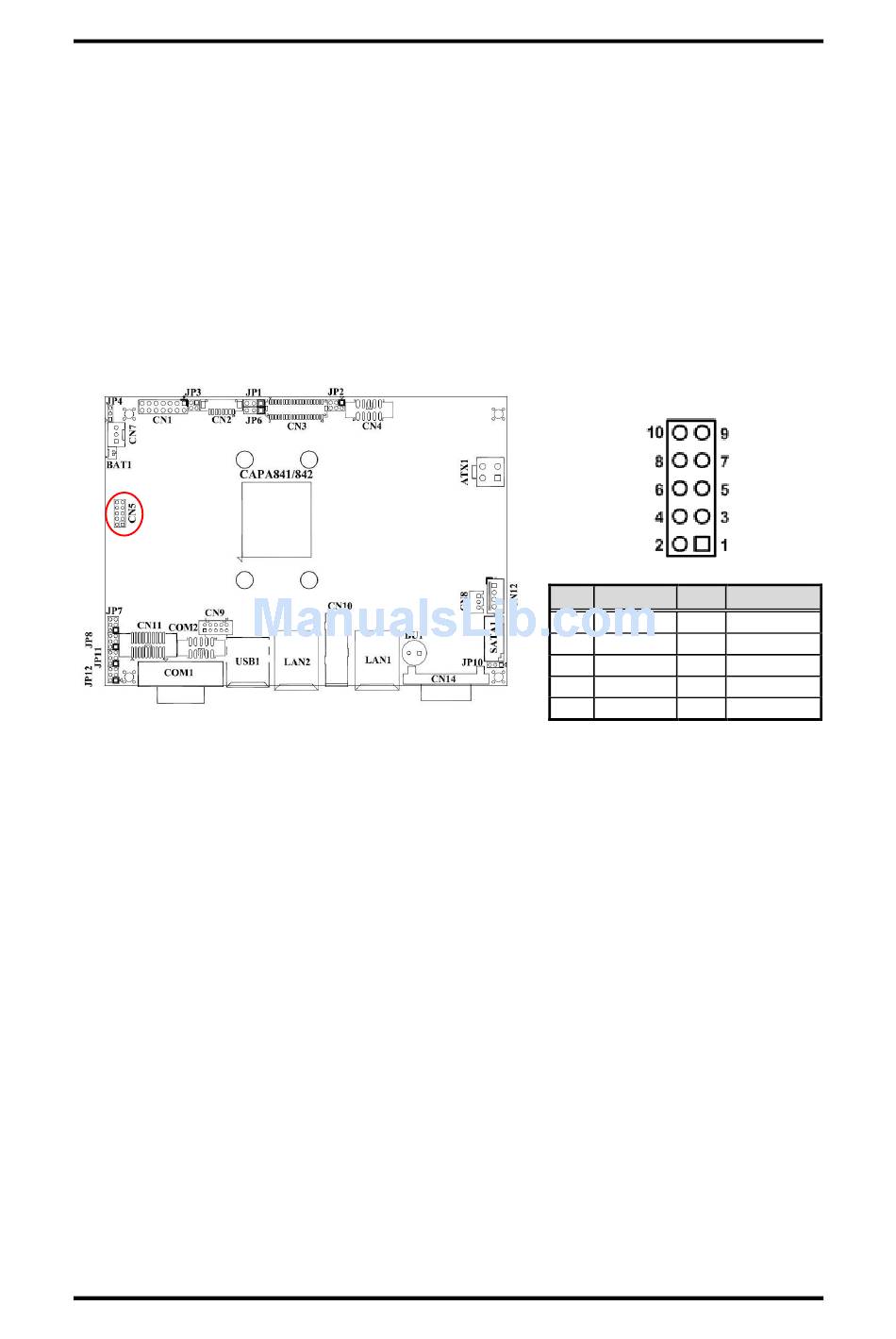

CN5
Pin Signal Pin
1 DI0 (Bit0) 2
3 DI1 (Bit1) 4
5 DI2 (Bit2) 6
7 GND 8
9 GND 10
Signal
DO0 (Bit 3)
DO1 (Bit 4)
DO2 (Bit 5)
DO3 (Bit 6)
DO4 (Bit 7)
81
