CAPA841/842 Capa Board
2.4.8

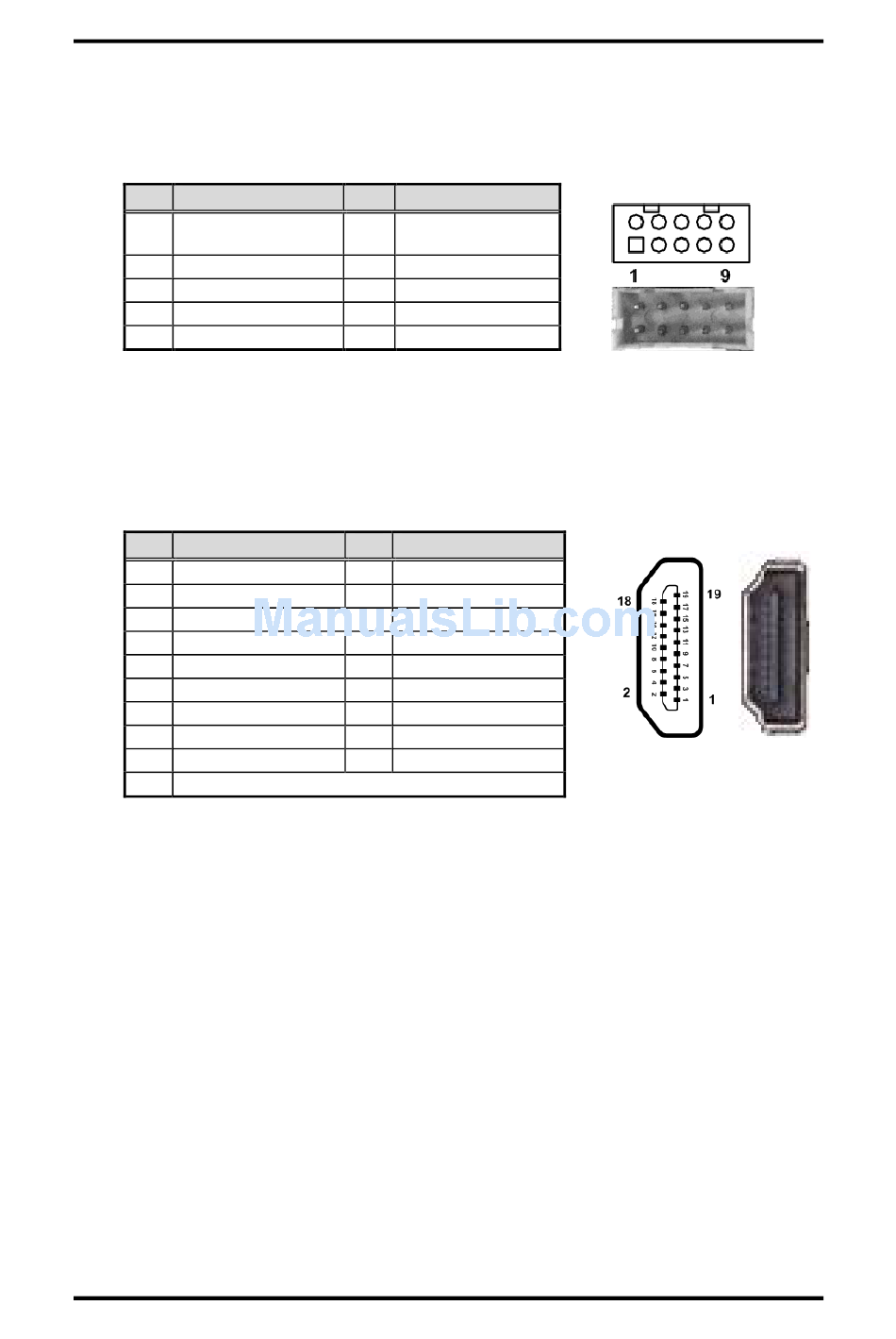

USB Wafer Connector (CN9)

This 2x5 pin wafer is a Universal Serial Bus (USB) connector for installing versatile USB
2.0 compliant interface peripherals.
The CN9 carries USB port 2 and 3.
Pin Signal
USB VCC (+5V
1
level)
3 USB #2_D-
5 USB #2_D+
7 GND
9 GND
2.4.9

HDMI Connector (CN10)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable. Its interface is available through connector CN10.
Pin Signal
1 HDMI OUT_DATA2+
3 HDMI OUT_DATA2-
5 GND
7 HDMI OUT_DATA0+
9 HDMI OUT_DATA0-
11 GND
13 CEC
15 HDMI OUT_SCL
17 GND
19 HDMI_HTPLG
18
Pin Signal
USB VCC (+5V
2
level)
4 USB #3_D-
6 USB #3_D+
8 GND
10 GND
Pin Signal
2 GND
4 HDMI OUT_DATA1+
6 HDMI OUT_DATA1-
8 GND
10 HDMI OUT_Clock+
12 HDMI OUT_Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
Board and Pin Assignments
