2.4.15

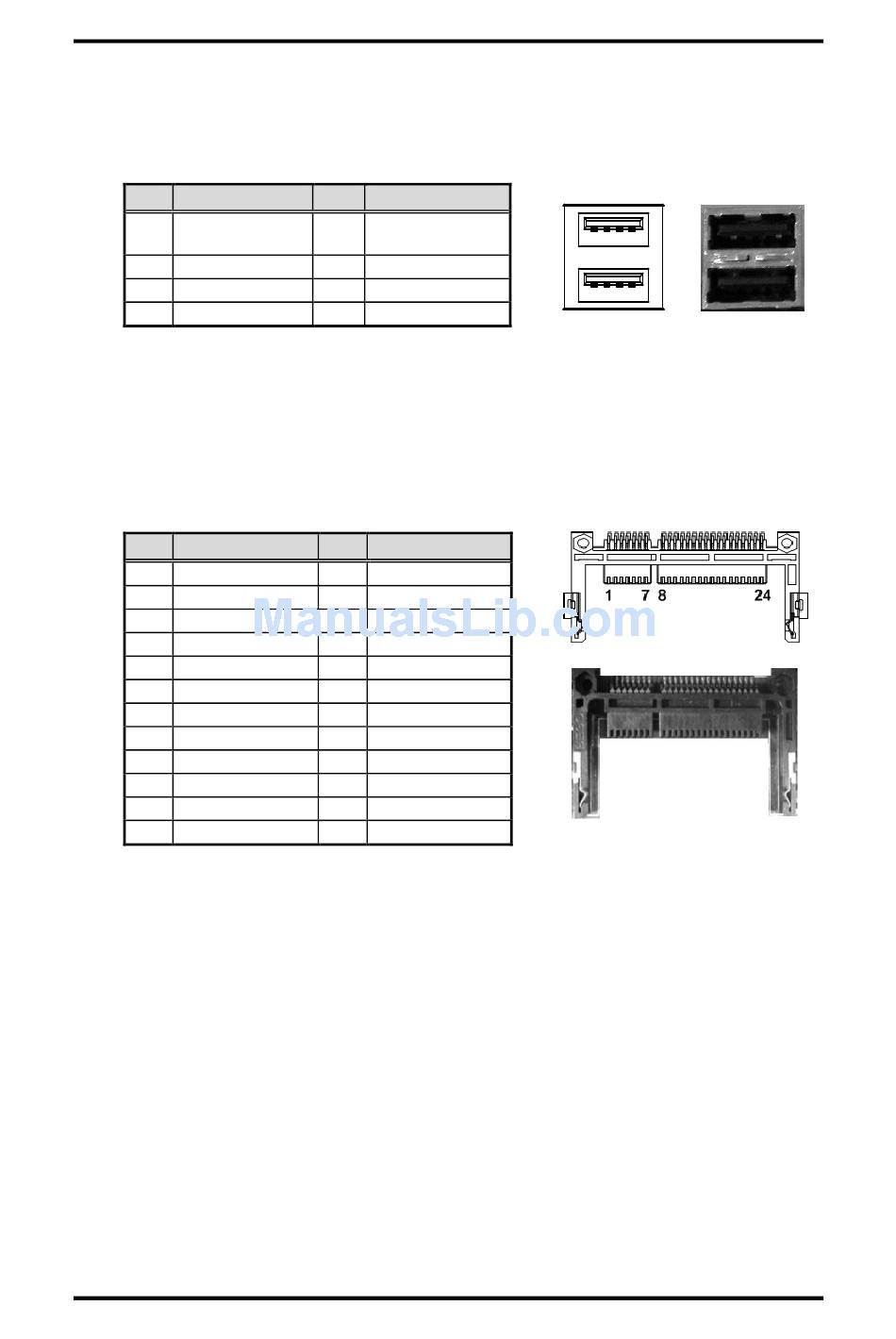

USB Port (USB1)

The USB1 is a Universal Serial Bus (compliant with USB 2.0 (480Mbps)) connector on
the rear I/O. It is commonly used for installing USB peripherals such as keyboard, mouse,
scanner, etc.
Pin Signal
USB VCC (+5V
1
level)
2 USB #0_D-
3 USB #0_D+
4 GND
2.4.16 CFast™ Socket (SCFAST1)
The board is equipped with a CFast
card which is based on the SATA bus. The socket is specially designed to avoid incorrect
installation of the CFast
make sure the system power is off. The CFast
D: drive in your PC system.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
8 N.C
9 GND
10 N.C
11 N.C
12 N.C
Board and Pin Assignments
Pin Signal
USB VCC (+5V
5
level)
6 USB #1_D-
7 USB #1_D+
8 GND
TM
socket on the bottom side to support a CFast
TM
card. When installing or removing the CFast
Pin Signal
13 N.C
14 GND
15 N.C
16 CFAST_LED#
17 N.C
18 N.C
19 N.C
20 +3.3V Level
21 +3.3V Level
22 GND
23 GND
24 N.C
CAPA841/842 Capa Board
5 6 7 8
1 2 3 4
TM
card by default identifies itself as C: or
TM
TM
card, please
