The print cartridges and the printer cable (interface cable) are not
included within the scope of delivery:
• Suitable print cartridges: C8842A (fast-drying ink) or HP 51645A,
C6168A, C6169A, C6170A are available from your Rena dealer
• Suitable printer cable: twisted parallel interface cable

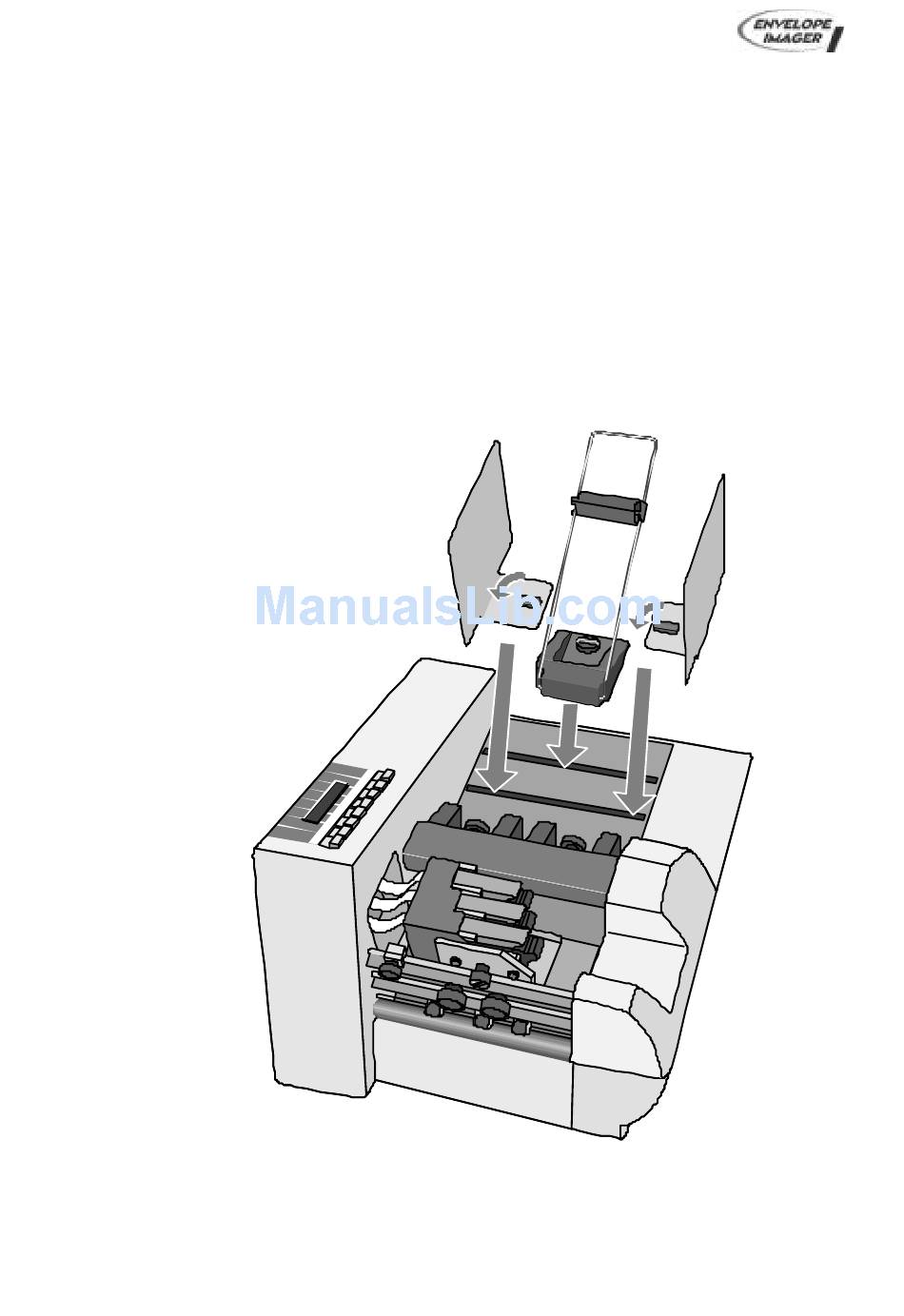

3.3 Assembly of contact brackets and guide bar

• Insert the contact bracket into the lower panel slot and lock it in
place by giving the bayonet lock a quarter turn.
• Insert the guide bar into the upper panel slot in the same way.
612s(Ei1)_Operations Rev: 5/12/03
RENA Address Printer
8
