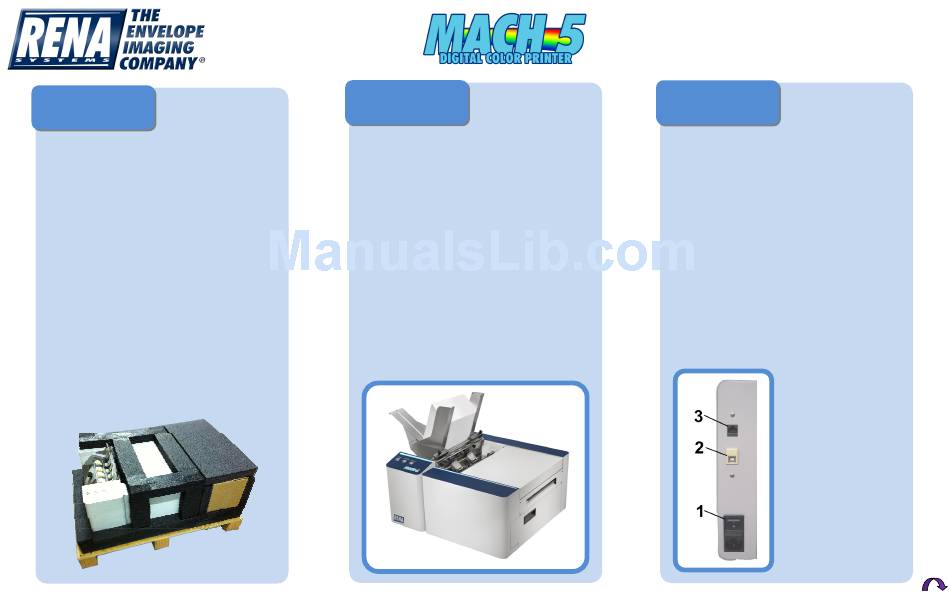

Rena Mach 5 Quick Start Manual

st
1 STEP
Unpack Your MACH 5:
Remove the printer and accessories from the
packaging. Store the packing material in a safe
place.
Set the printer onto a level, stable surface. Use a
carpenter's level to make any adjustments to the
work table where the MACH 5 will be operating.
Level is very important to the proper operation of
the MACH 5, and the electronics of the unit will
check for it once powered up. Do not move the
MACH 5 while the power is on.
2 nd STEP
Install Media Guides:
Locate the side guides and rear media support
guide in the accessory box (wrapped in foam).
Install the side guides to the hopper brackets where
the mounting screws are taped in place. The rear
media support guide mounts with the large rubber
thumbscrew on the back plate, and the media
support wedge attaches to it with a thumbscrew.
When complete, your machine should look like
this:

QUICK START GUIDE

rd
3 STEP
Connect Power to the MACH 5:
Make sure that the main power switch (item 1 in
the image below) is in the OFF position.
Plug the AC power cord into the receptacle on the
printer, located below the main power switch.
Plug the other end of the AC power cord into a
115V AC, 60 Hz (or 230V 50 Hz for international)
grounded outlet with a high quality surge
protector.
DO NOT turn
the power
switch (1) on at
this time!
OVER
