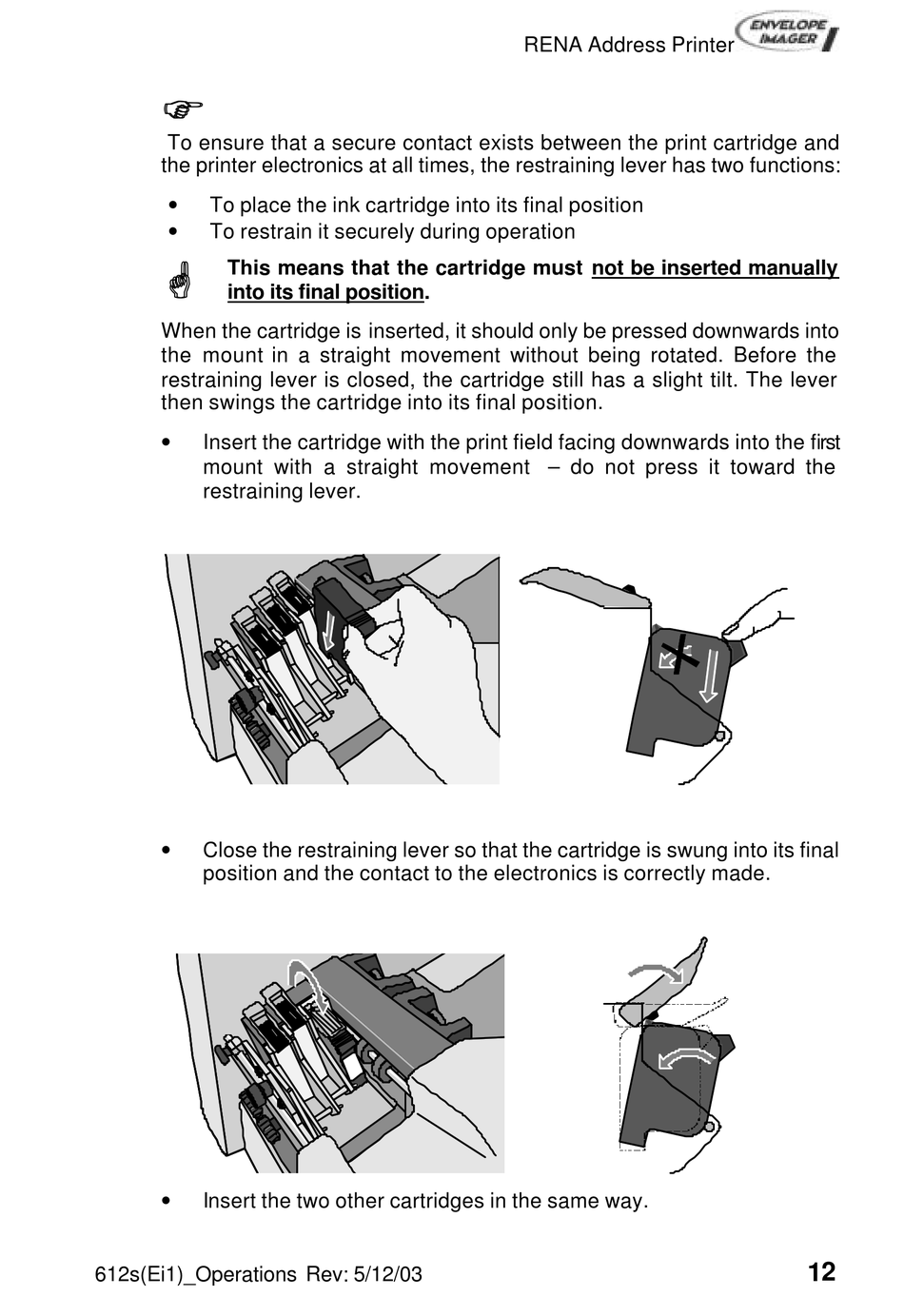

Rena Envelope Imager I Instruction Manual page 12

F F
To ensure that a secure contact exists between the print cartridge and
the printer electronics at all times, the restraining lever has two functions:
•
To place the ink cartridge into its final position
•
To restrain it securely during operation
G G
This means that the cartridge must not be inserted manually
into its final position.
When the cartridge is inserted, it should only be pressed downwards into
the mount in a straight movement without being rotated. Before the
restraining lever is closed, the cartridge still has a slight tilt. The lever
then swings the cartridge into its final position.
•
Insert the cartridge with the print field facing downwards into the first
mount with a straight movement – do not press it toward the
restraining lever.
•
Close the restraining lever so that the cartridge is swung into its final
position and the contact to the electronics is correctly made.
•
Insert the two other cartridges in the same way.
612s(Ei1)_Operations Rev: 5/12/03
RENA Address Printer
12
